VA2261-6

22" 1080p Home and Office Monitor

ViewMode technology
VGA and DVI inputs
Flicker-Free and Blue Light Filter
Eco-mode
VESA mountable

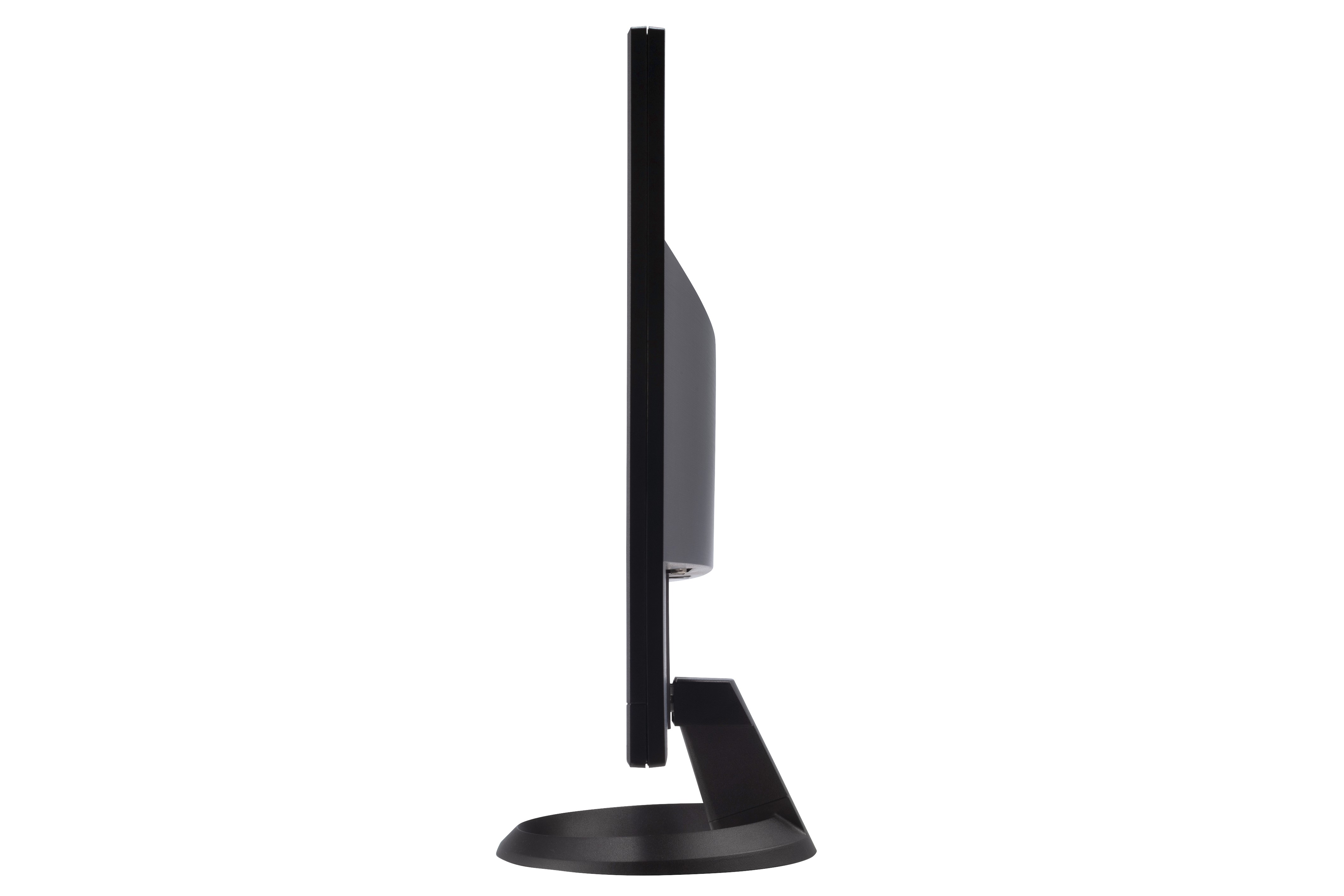

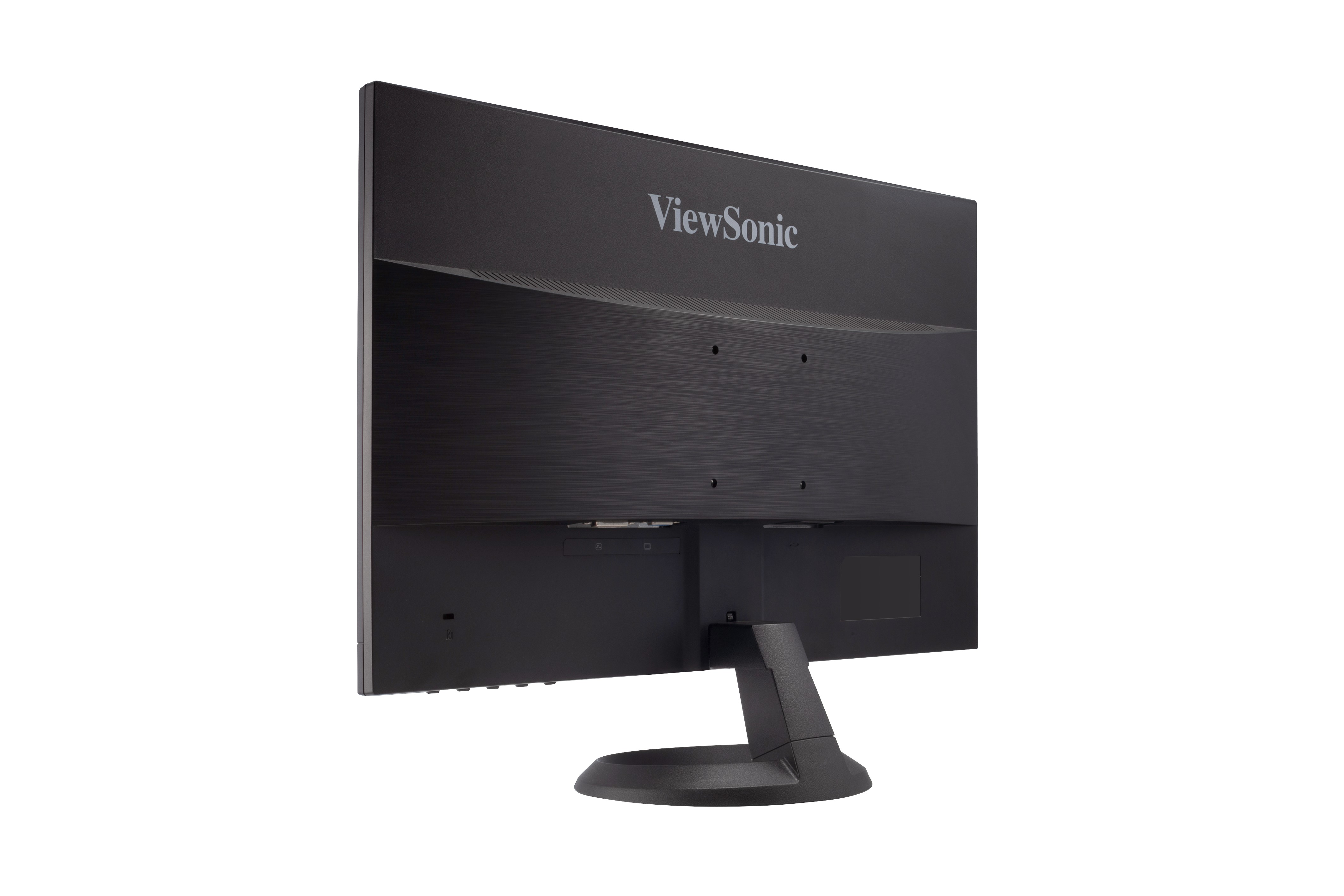

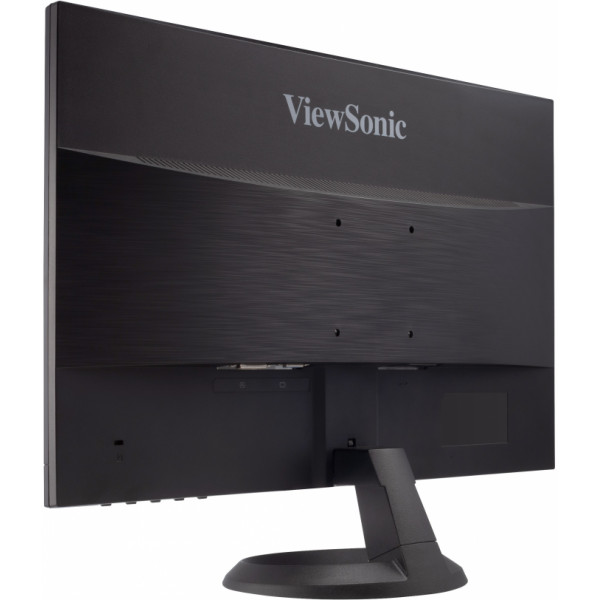

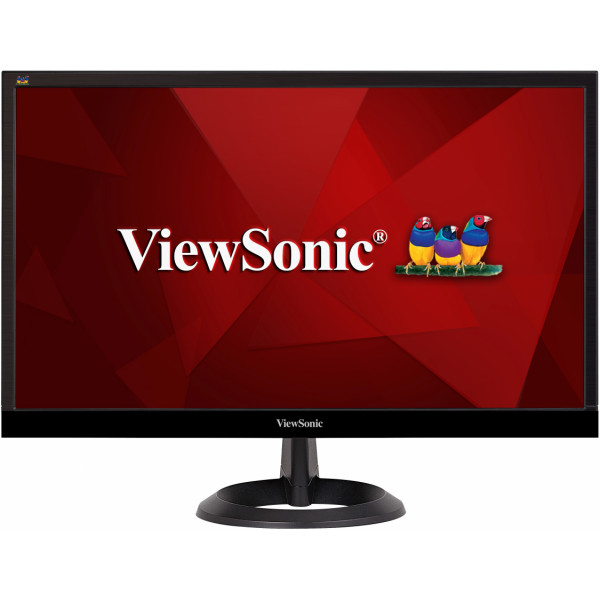

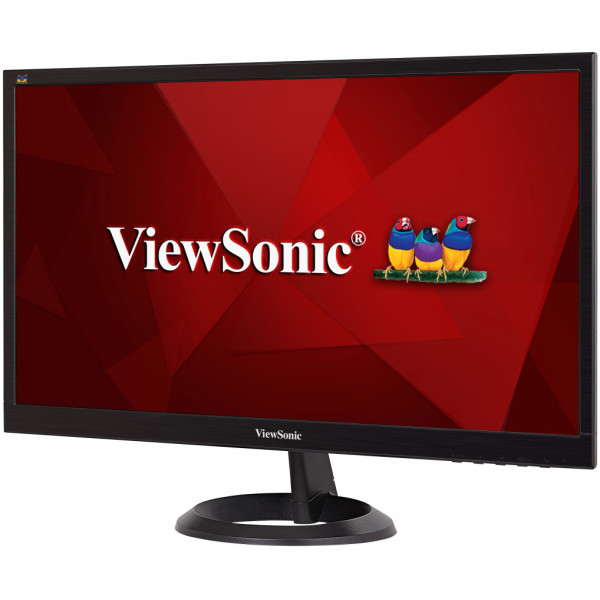

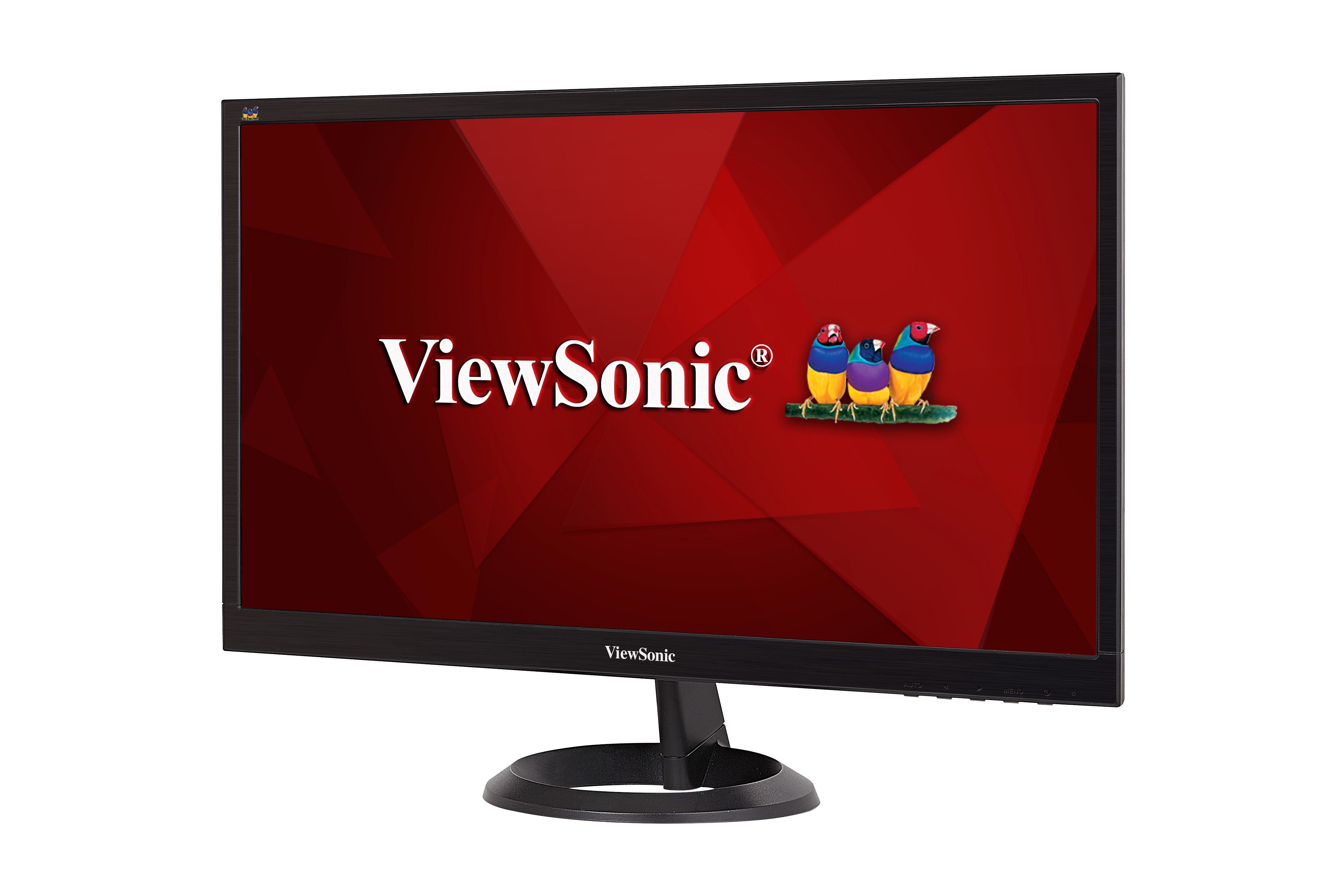

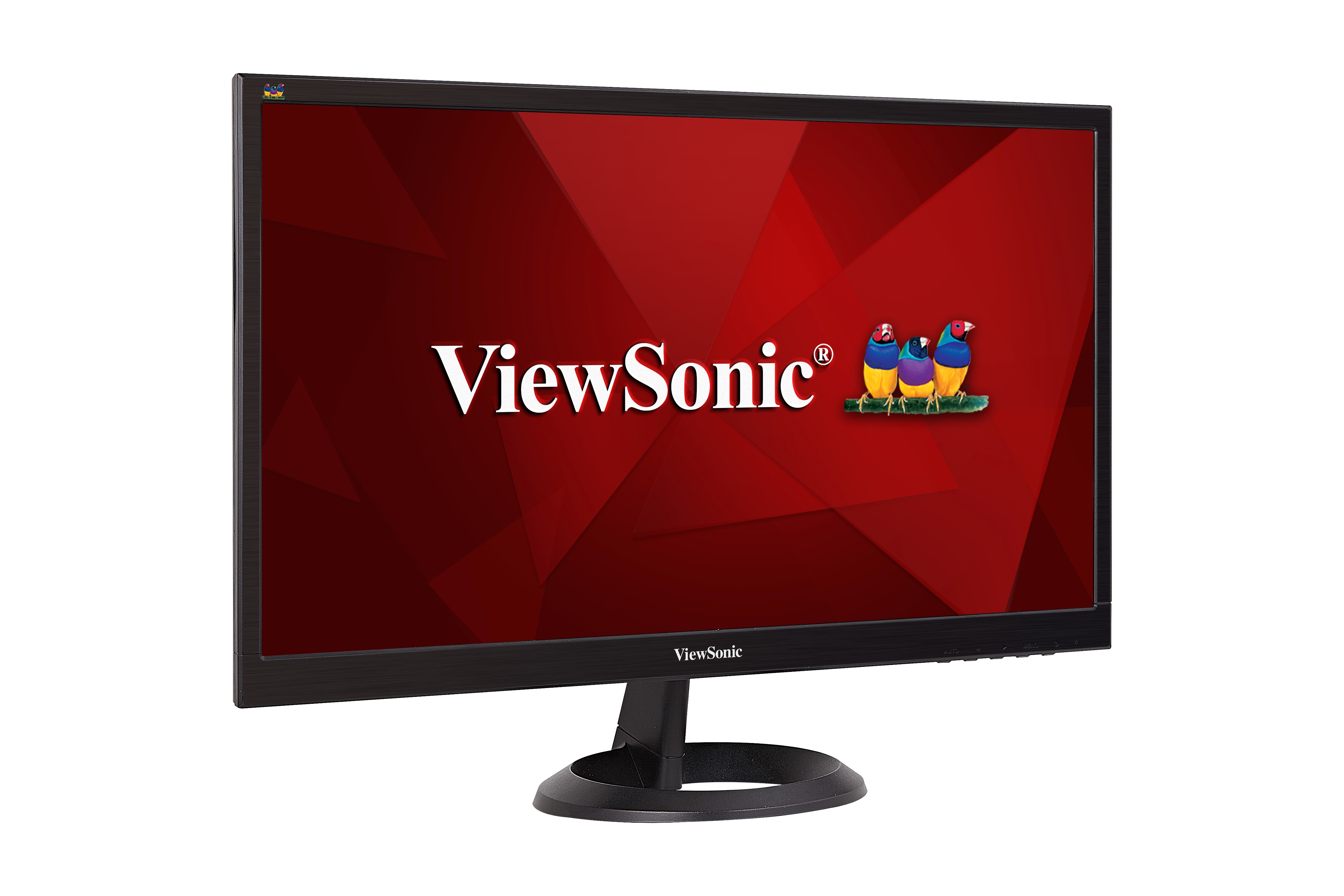

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 700:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min): 1920x1080

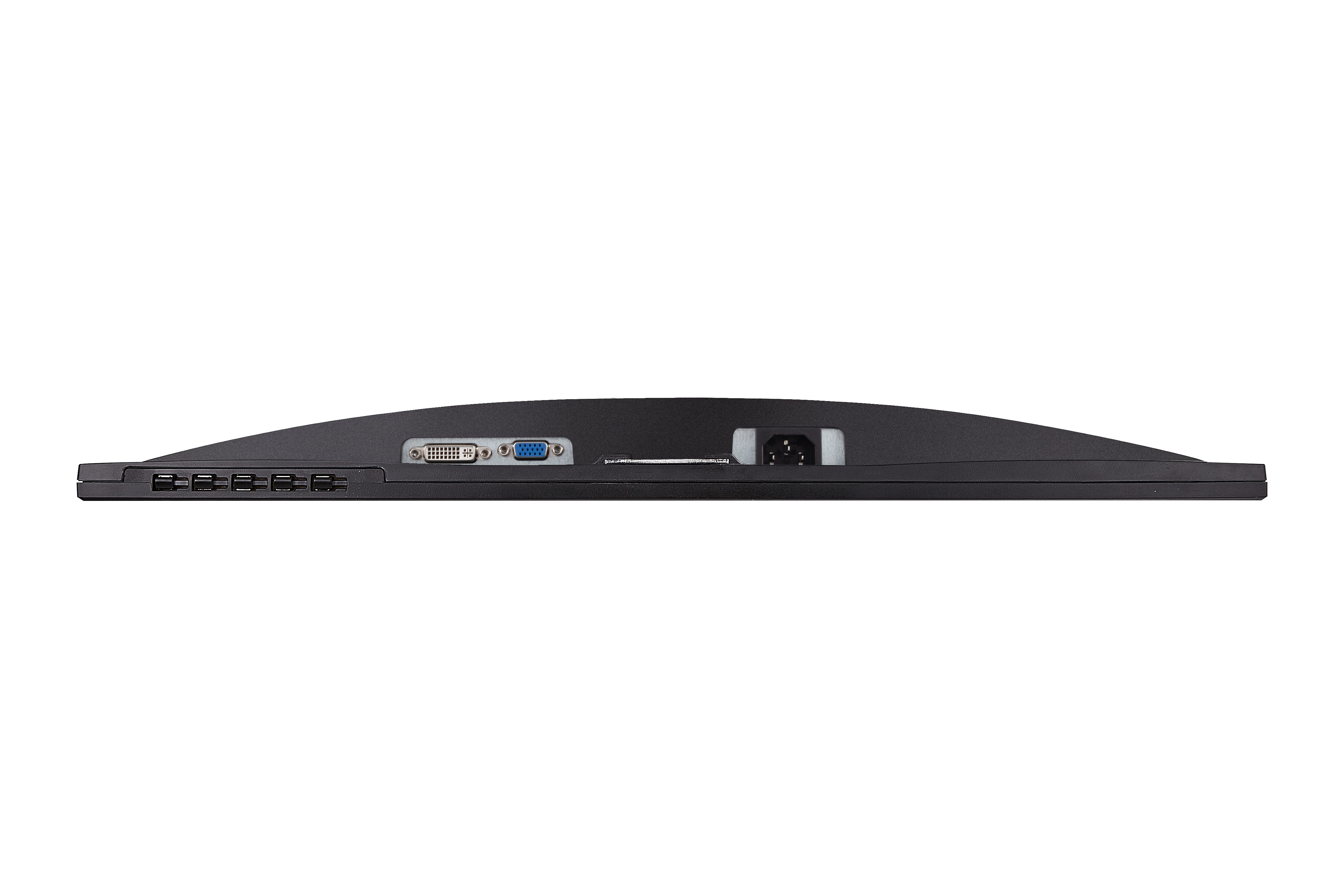

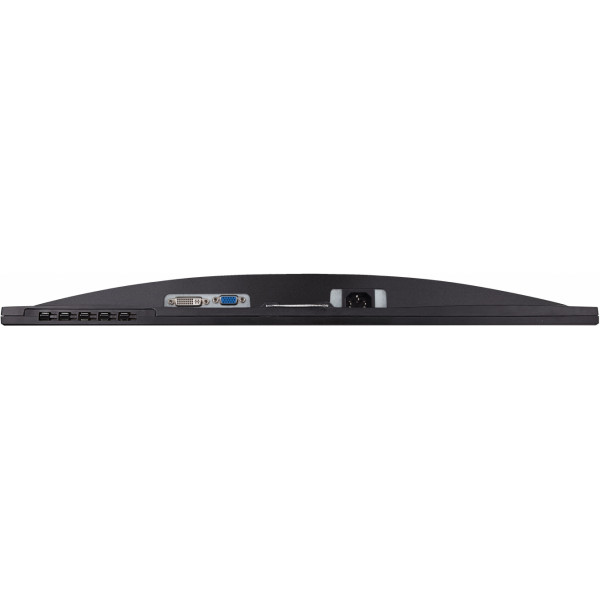

Connector
VGA: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Eco Mode (Conserve): 15W
Eco Mode (optimized): 17W
Consumption (typical): 19W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Auto, Left, Right, Menu, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): -5º / 15º
Weight (imperial)
Net (lbs): 6.2
Net Without Stand (lbs): 5.5
Gross (lbs): 8.4
Weight (metric)
Net (kg): 2.8
Net Without Stand (kg): 2.5
Gross (kg): 3.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.2 x 15.4 x 4.5
Physical (in.): 19.9 x 15 x 7.1
Physical Without Stand (in.): 19.9 x 12.2 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm): 565 x 390 x 115
Physical (mm): 505 x 382 x 179
Physical Without Stand (mm): 505 x 311 x 48
General
PACKAGE CONTENTS: VA2261-6 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
