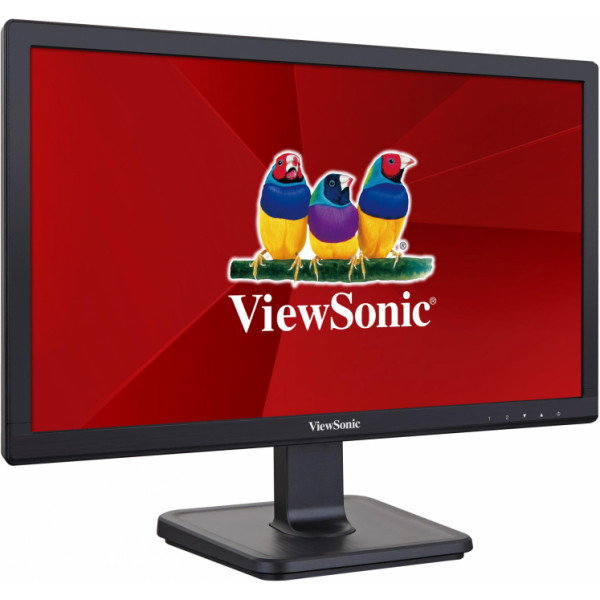

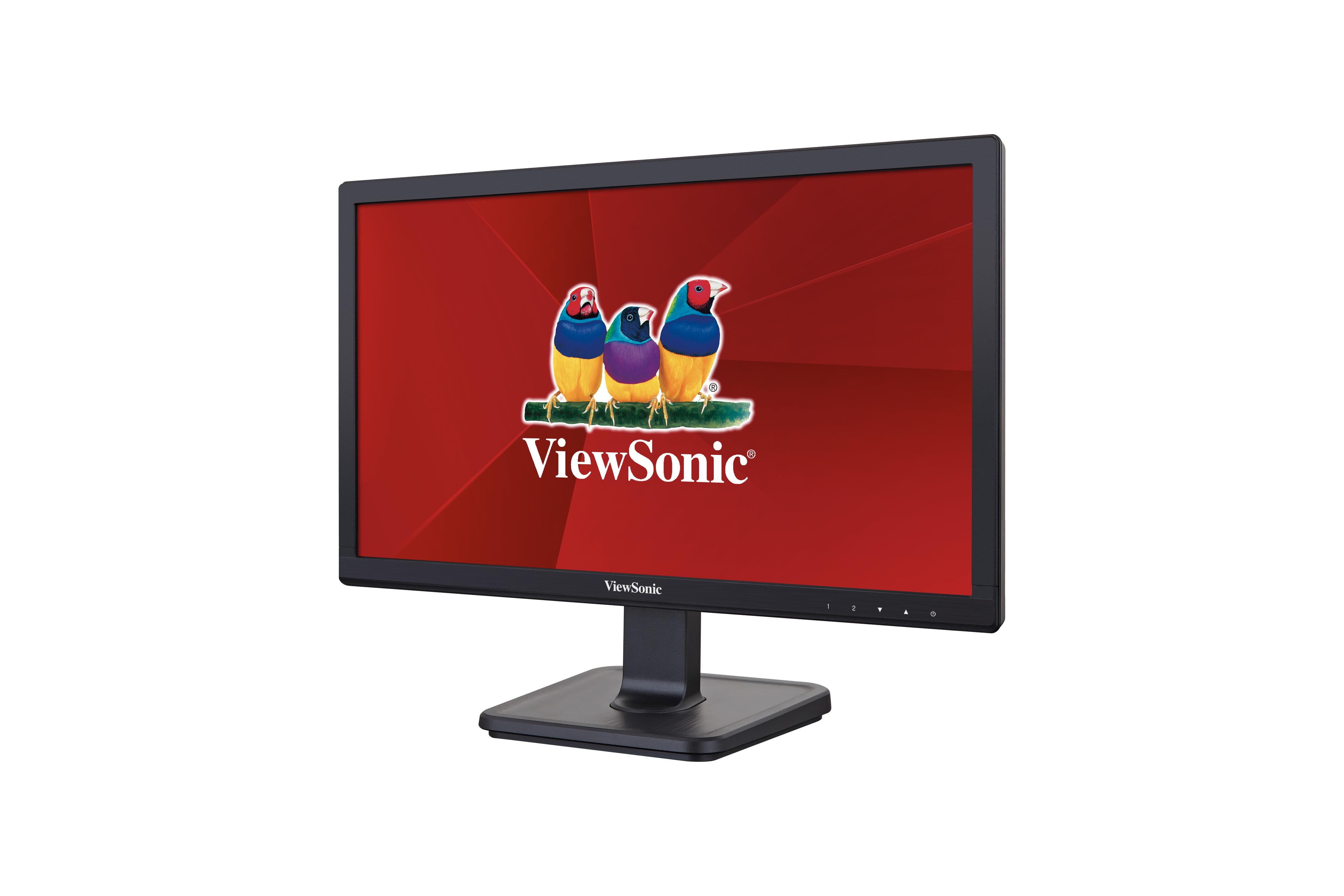

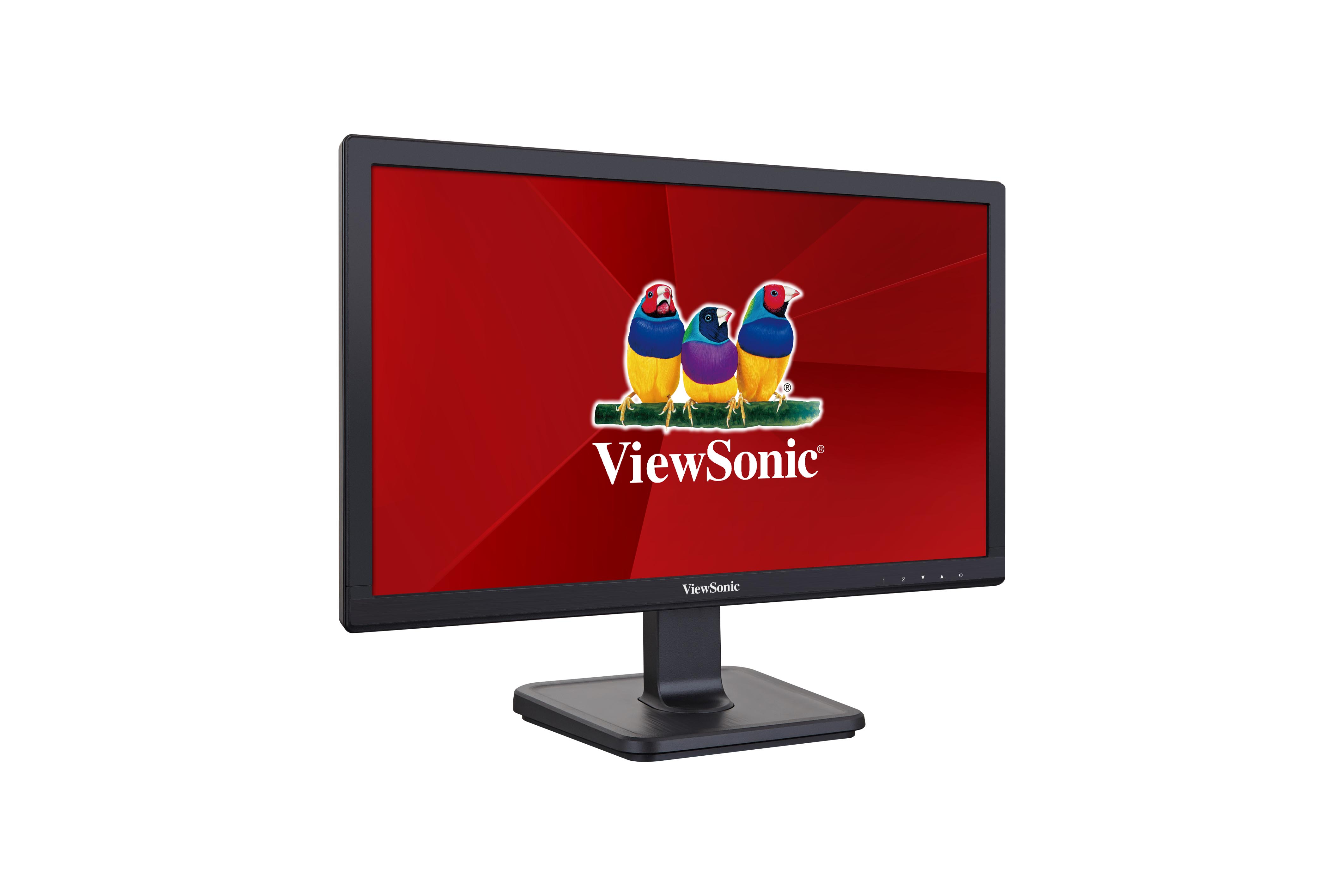

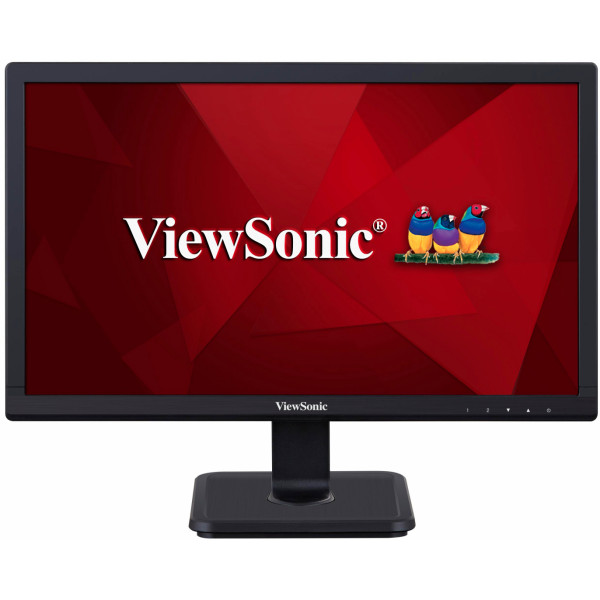

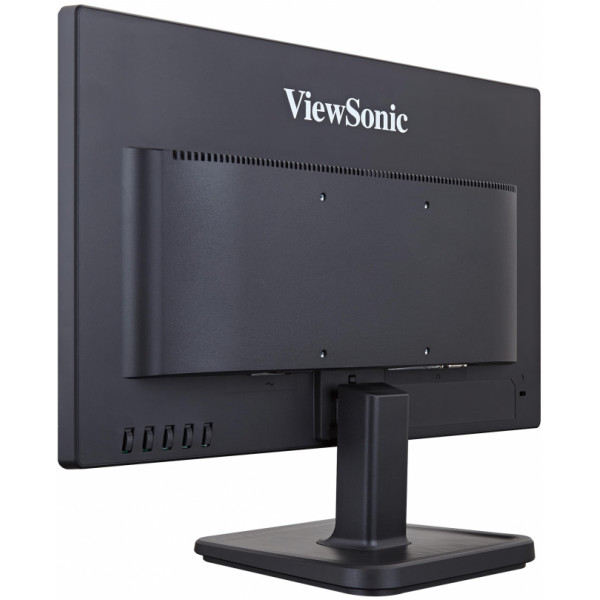

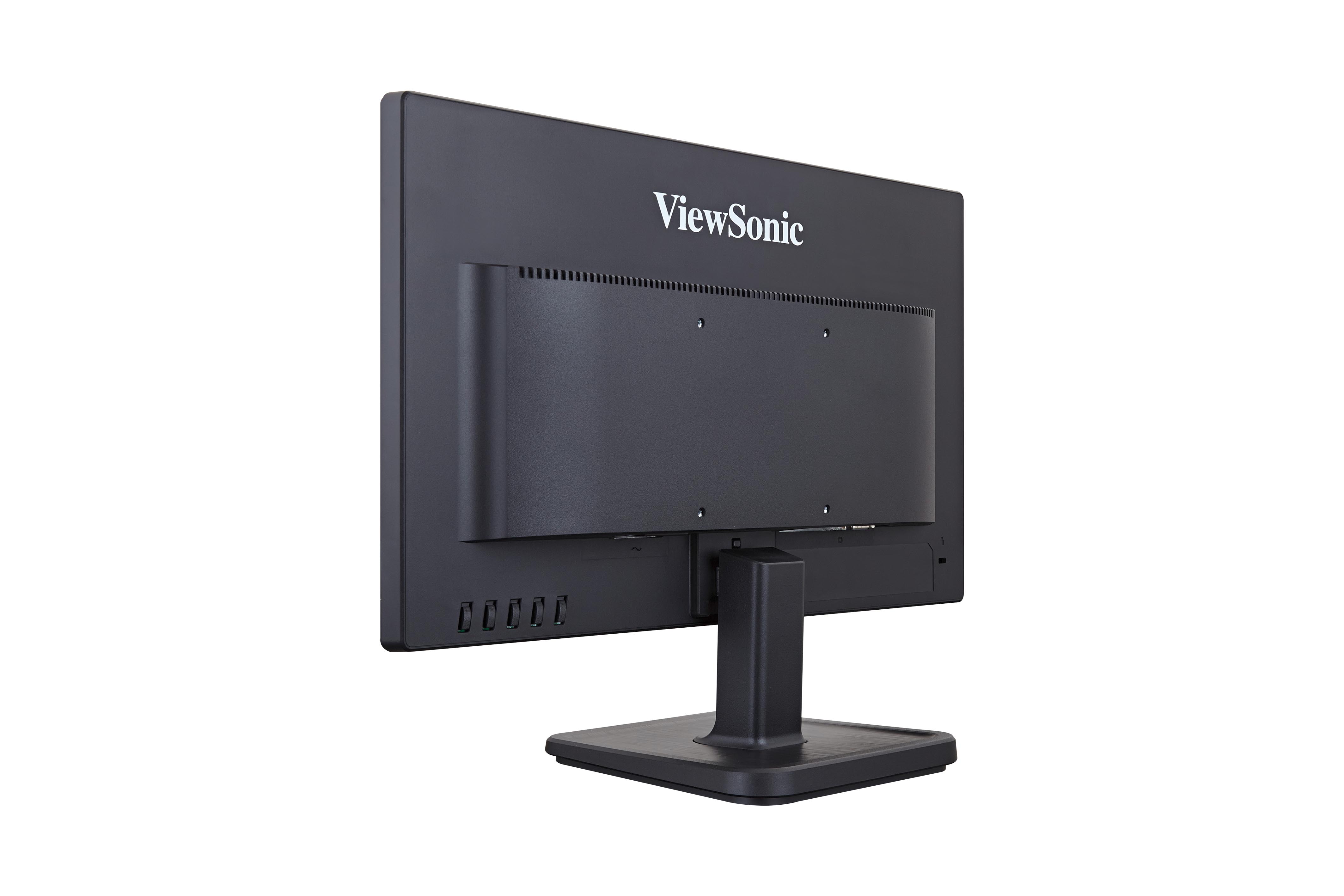

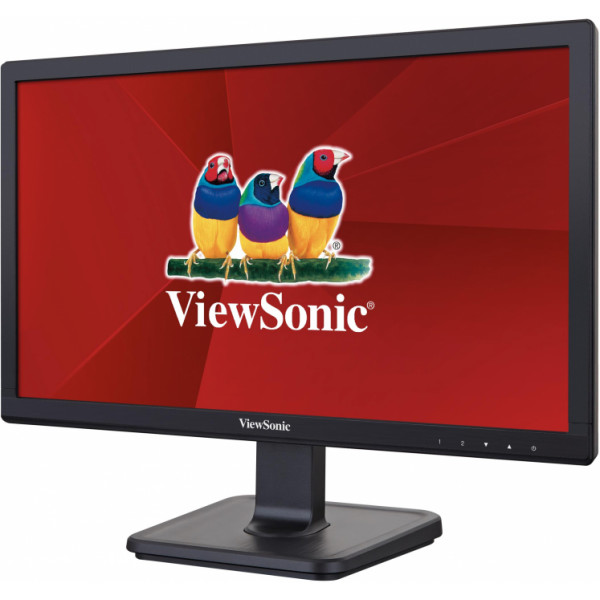

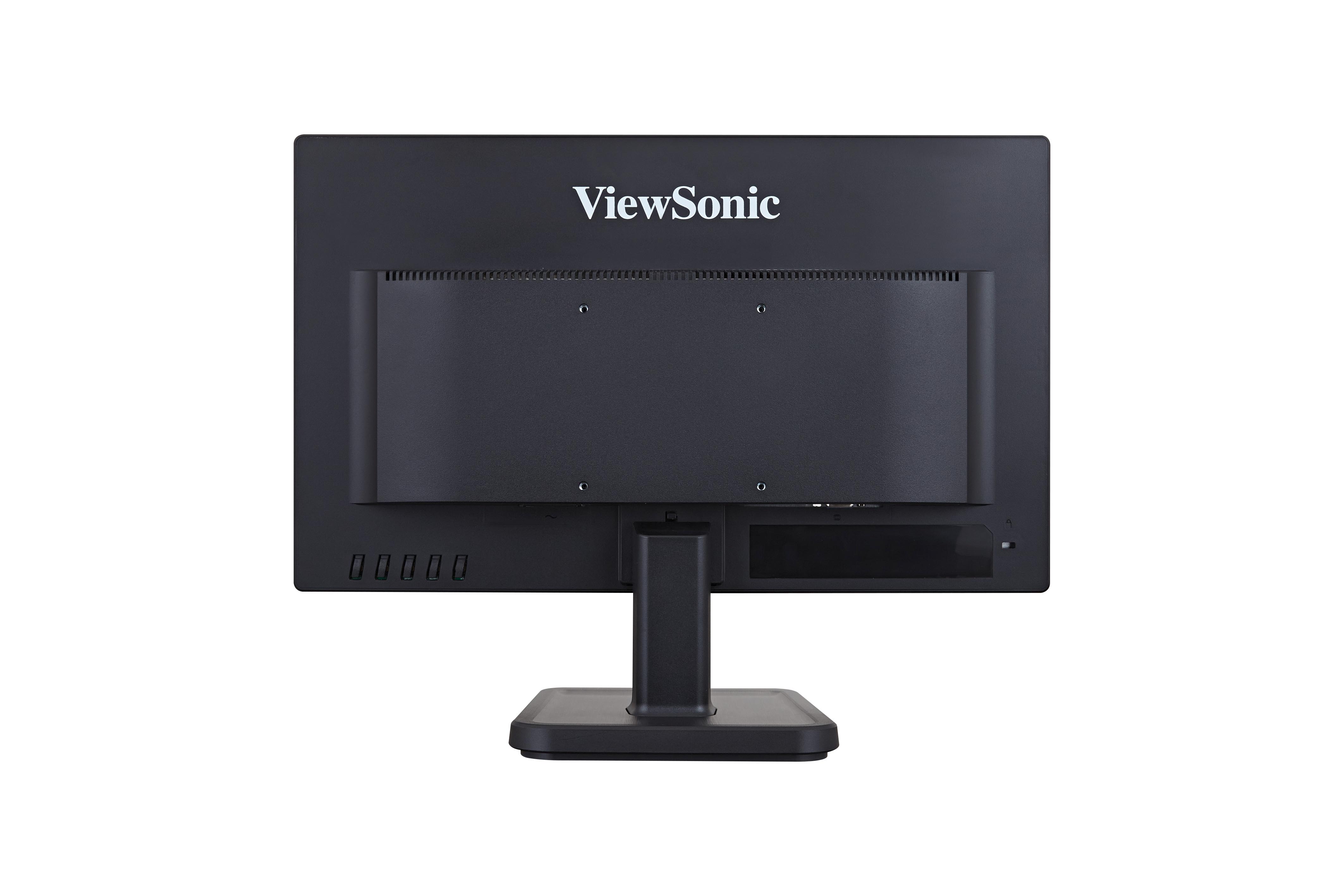

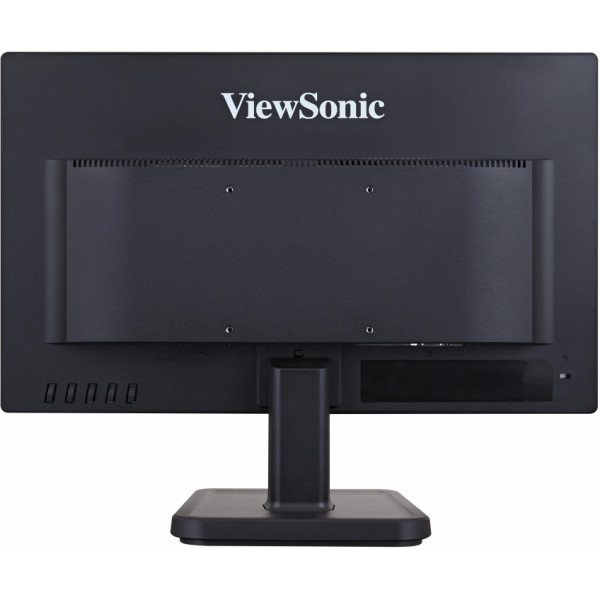

VA1901-A

19" 1366x768 Home and Office Monitor

16:9 aspect ratio
Flicker-Free and Blue Light Filter
ViewMode technology
VGA input
Eco-mode

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 19
Viewable Area (in.): 18.5
Panel Type: TN Technology
Resolution: 1366 x 768
Resolution Type: WXGA (Wide XGA)
Static Contrast Ratio: 600:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 68% size (Typ)
sRGB: 98% size (Typ)
Pixel Size: 0.3 mm (H) x 0.3 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1366x768
Mac® Resolution (max): 1366x768
PC Operating System: Windows 7/8/8.1/10 certified
Mac® Resolution (min): 1366x768

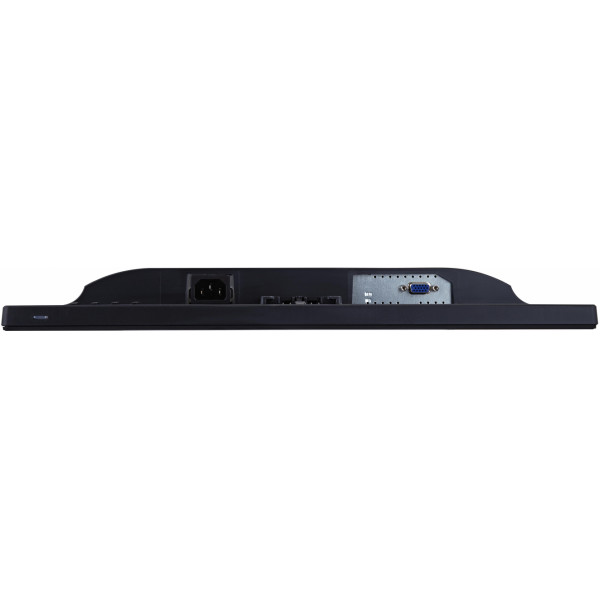

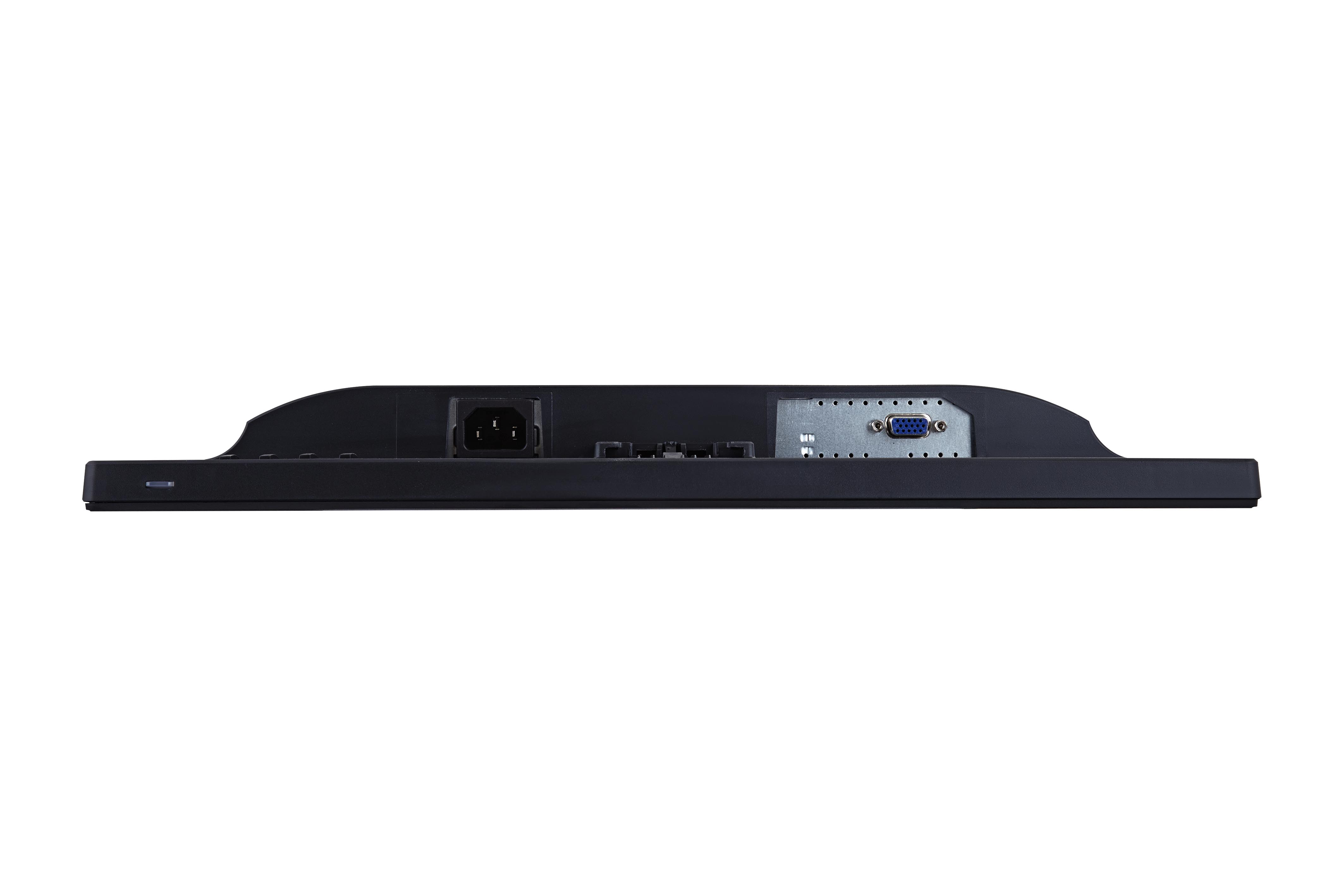

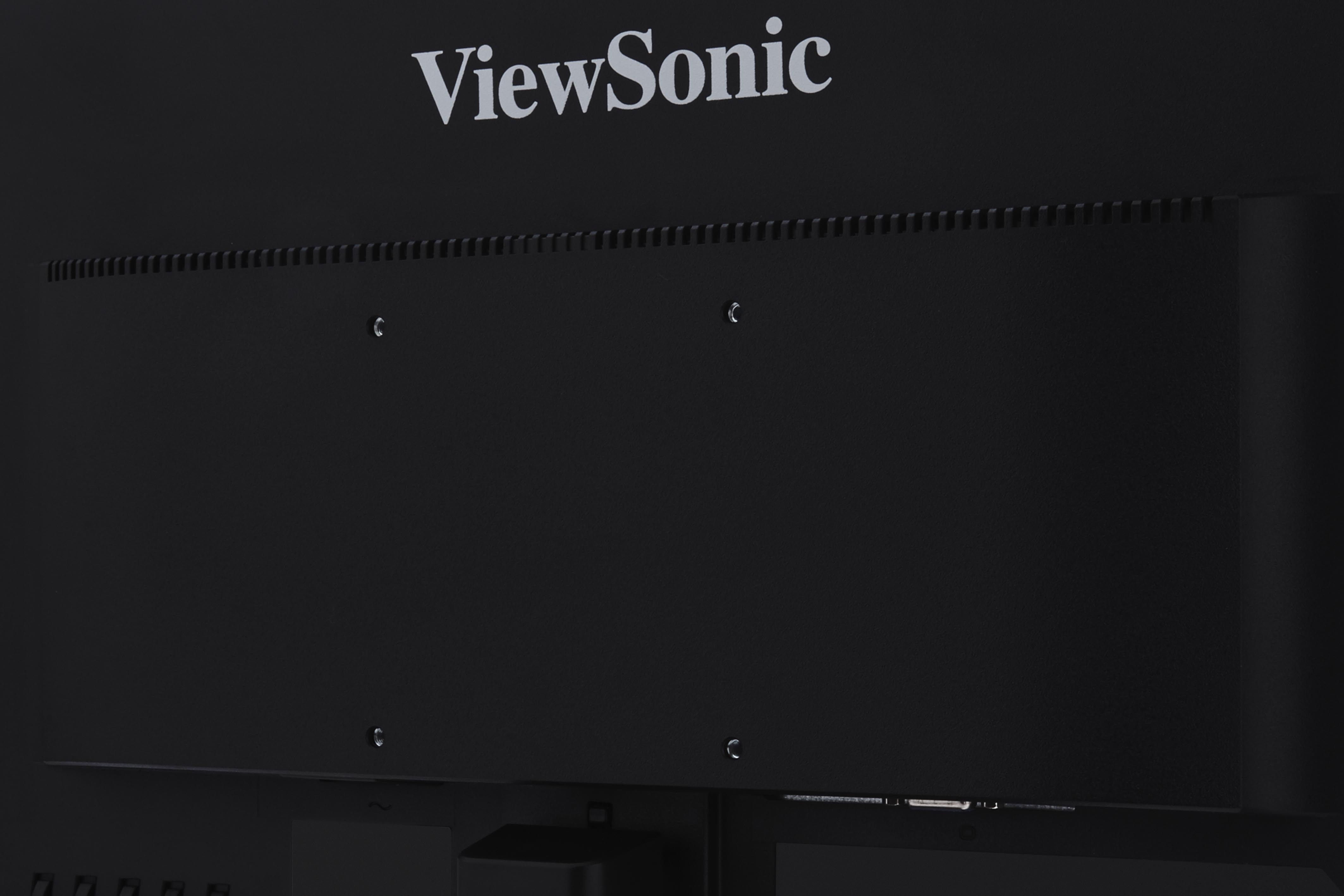

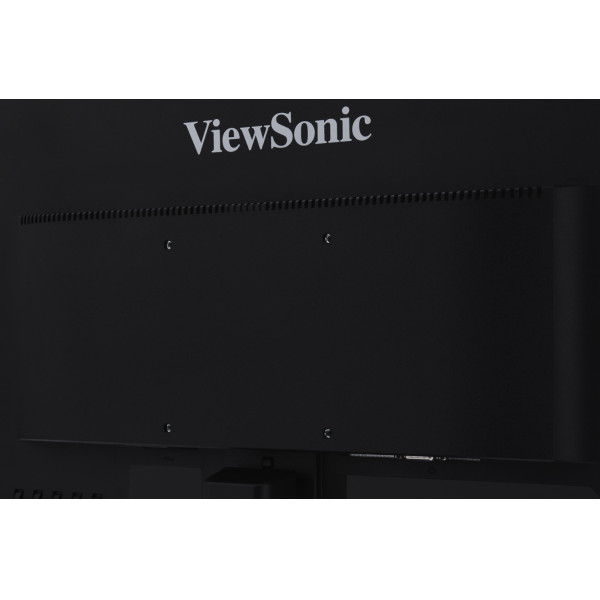

Connector
VGA: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Eco Mode (Conserve): 7W
Eco Mode (optimized): 9W
Consumption (typical): 11W
Consumption (max): 13W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Analog Sync: Separate - RGB Analog

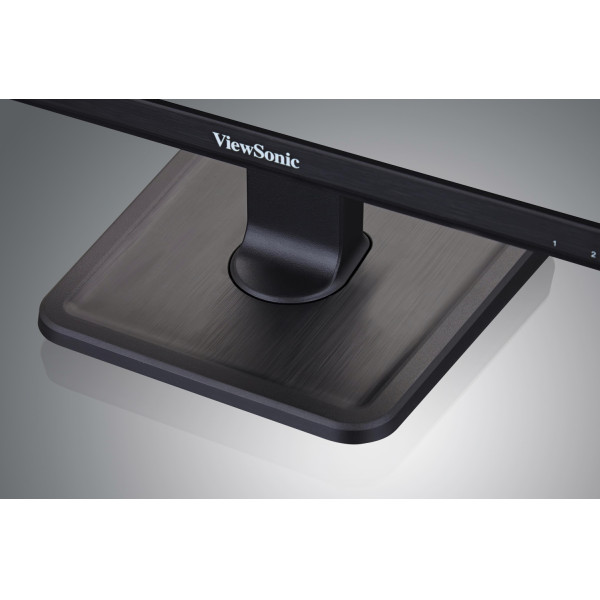

Ergonomics

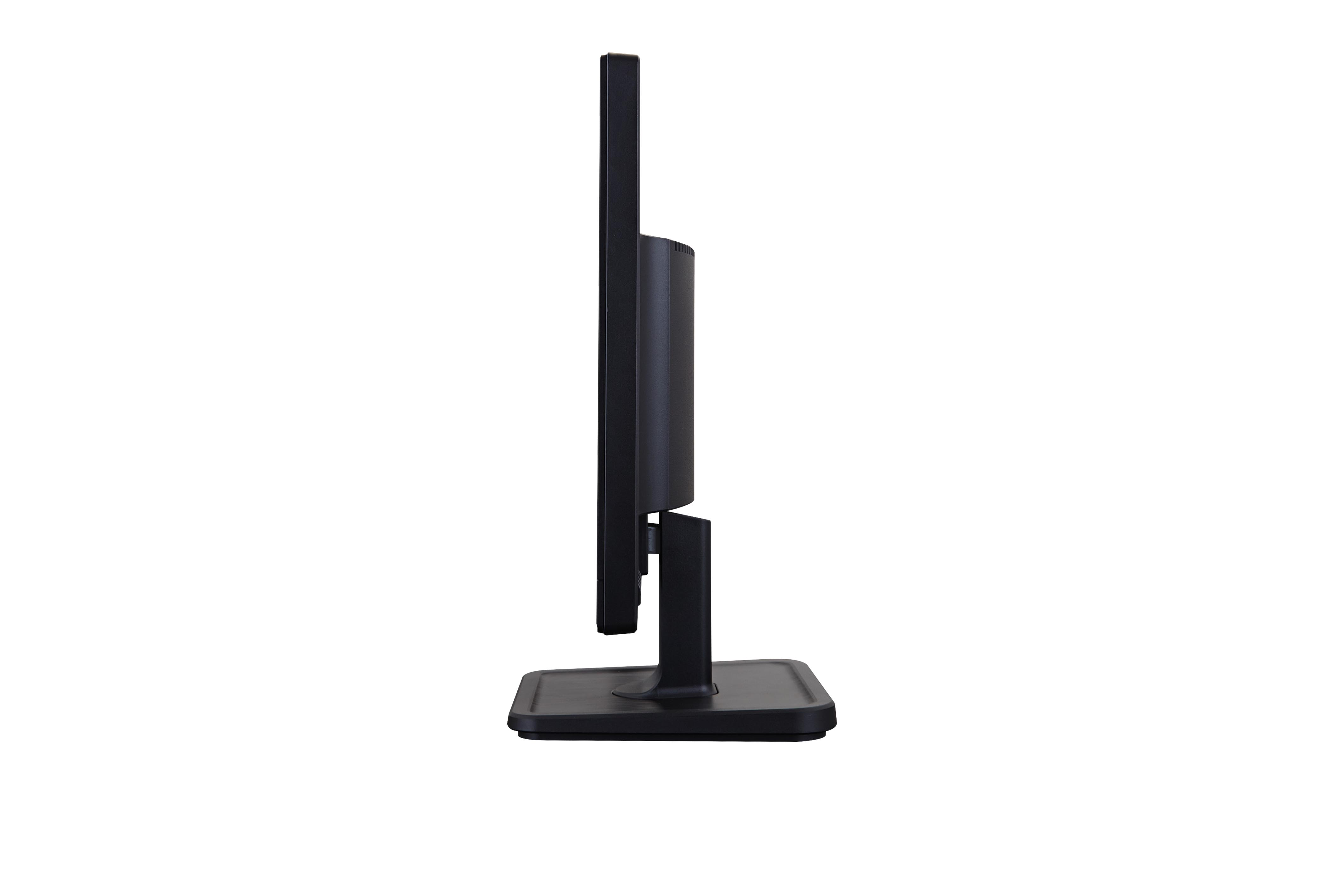

Tilt (Forward/Back): -5º / 23º
Weight (imperial)
Net (lbs): 4.4
Net Without Stand (lbs): 3.8
Gross (lbs): 5.7
Weight (metric)
Net (kg): 2
Net Without Stand (kg): 1.7
Gross (kg): 2.6
Dimensions (imperial) (wxhxd)
Packaging (in.): 19.6 x 13.9 x 4.5
Physical (in.): 17.4 x 13.7 x 7.2
Physical Without Stand (in.): 17.4 x 10.6 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm): 498 x 352 x 114
Physical (mm): 442 x 348 x 182
Physical Without Stand (mm): 442 x 268 x 48
General
PACKAGE CONTENTS: VA1901-A x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
