Pantalla LCD

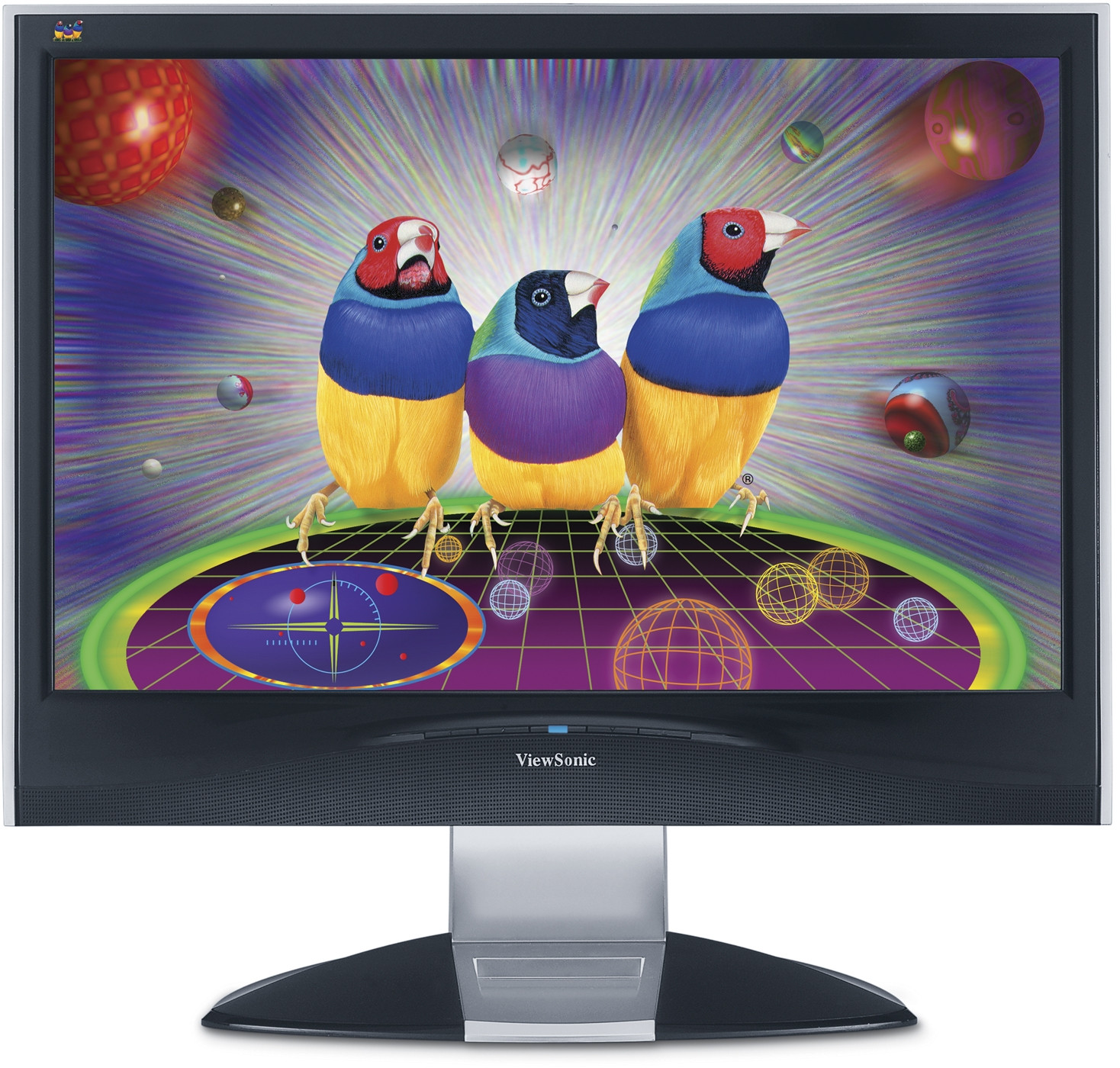

VX2435wm
Caraterísticas principales
Descripción del producto
ViewSonic’s VX2435wm widescreen LCD transforms your desktop into an entertainment centre. The 24” widescreen display with premium high-definition resolution lets you play movies and HD games in their native format and at their brilliant best. The ultra-high 1000:1 contrast ratio, high brightness and fast response time levels produce bright, sharp, detailed images that are impossible to better. Connect your PC, DVD player, STB or gaming console through the vast array of connection options including Digital HDMI, analogue, component and more. Enjoy multimedia performance with integrated speakers. The VX2435wm is the perfect display for the serious professional gamer or digital entertainment enthusiast who wants great pictures in big-screen brilliance.
Visita
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 24” Wide Premium MVA colour TFT active matrix WUXGA LCD Ratio de contraste: 1000:1 (typ.) Ángulos de visión: 176° horizontal, 176° vertical (at 10:1)
176° horizontal, 176° vertical (at 5:1)Brillo: 500cd/m² Área de visualización: 51.7cm horizontal x 32.3cm vertical, 61cm diagonal Resolución óptima: 1920 x 1200@60Hz Tiempo de respuesta: 8ms (grey-to-grey avg.), 20ms (off-on-off typ.) Fuente de luz: Long life, 50000 hrs. (typ.) Relación de aspecto: 16:10 Superficie del panel: Anti-glare Tamaño del píxel: 0.269mm Gama de colores: 16.7M colours (8-bit) Frecuencia de píxel: 165MHz -
COMPATIBILIDAD
PC: VGA up to 1920 x 1200 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1920 x 1200 non-interlaced -
DIMENSIONES
Físicas con la base: 572 x 510 x 244 Físicas sin la base: 572 x 418 x 92 Embalaje (LxAxP): 644 x 598 x 182 -
NORMATIVAS
CE, CB, ISO13406-2 (pixel failure class II), GOST-R + 20 original copies hygienic, UL, cUL, FCC-B, Energy Star, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS -
CONTENIDO DE LA CAJA
LCD Monitor, power cable, 15-pin VGA video cable, HDMI to DVI cable adapter, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
GARANTÍA
Three-year limited warranty on LCD, parts and labor. -
AUDIO
Altavoces: 2 x 3 watt integrated stereo speakers -
CONECTIVIDAD
Analógico: 1 x 15-pin mini D-Sub (detachable cable) Digital: 1 x HDMI (HDCP enabled) (detachable cable) Alimentación: 3-pin AC plug (CEE22) Entrada de vídeo compuesto: 1 x RCA (CVBS) Entrada de vídeo por componentes: 3 x RCA (YPbPr/YCbCr) Audio: 1 x 3.5mm mini stereo jack S-Video: 1 x 4-pin mini DIN jack (Y/C) -
ALIMENTACIóN
Voltaje: AC 100– 240V, 50/60Hz (auto switch), internal power supply Consumo: 90 watt (typ.), <1 watt in power save mode -
CONTROLES
Básico: Power, menu [1], up, down, select [2] Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, HDMI, component, S-video, composite), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 0°C–40°C Humedad: 10%–90% (non-condensation) -
PESO
Neto con la base: 8.0kg Neto sin la base: 6.7kg Bruto: 9.8kg -
ENTRADA DE VíDEO
Frecuencia: Fh: 24~82kHz, Fv: 50~85Hz Syncronización: H/V separate (TTL), composite, sync on green Analógico: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i) Digital: HDMI (HDCP enabled) (TMDS, 100 ohm) -
GESTIÓN DE ENERGÍA
Meets MPRII and ENERGY STAR® standards -
SEGURIDAD
Kensington® security port -
MONTAJE EN LA PARED
VESA® FDMI 100mm x 100mm -
ERGONOMÍA
Inclinación: Down 5°, Up 20°
