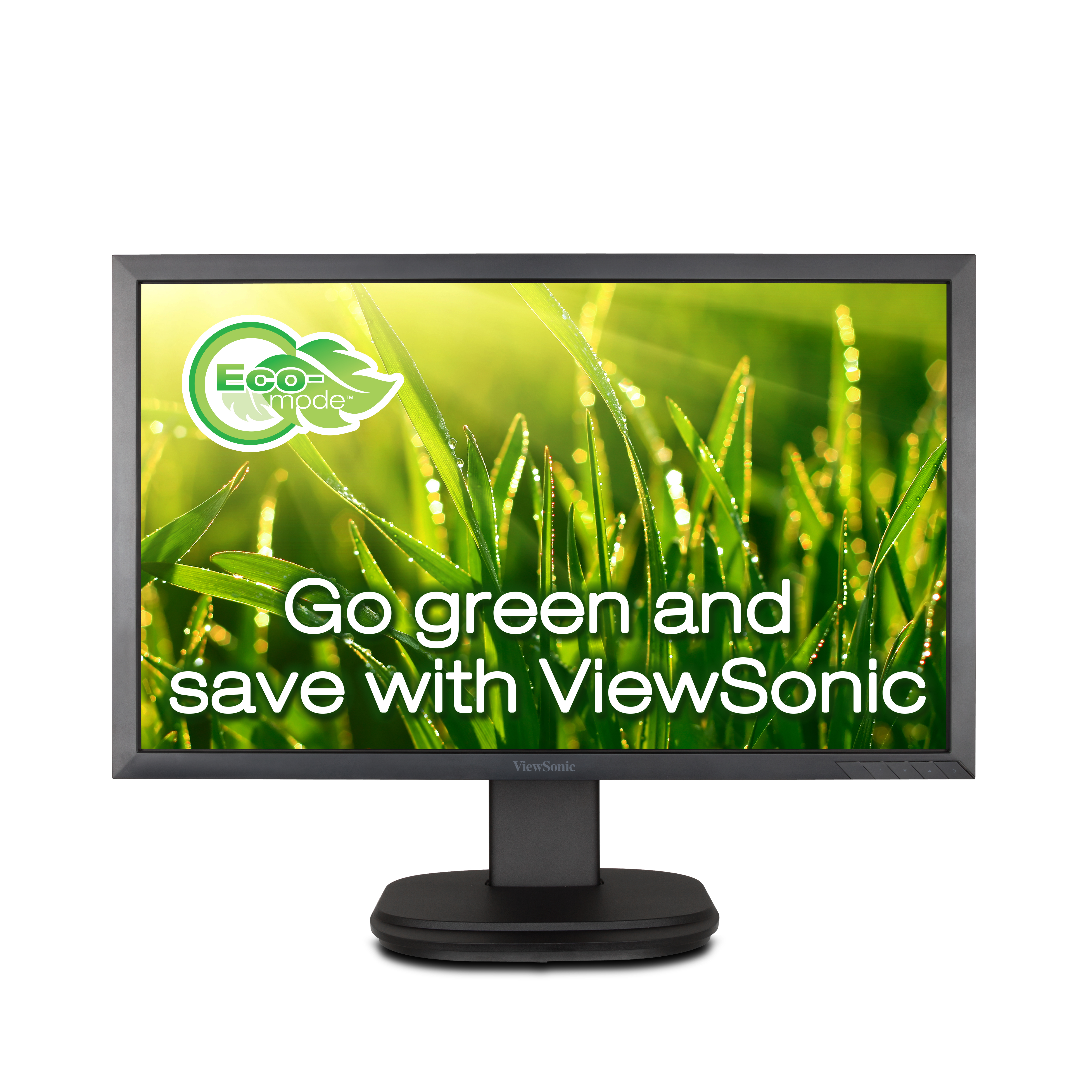

ViewSonic VG2439m-LED 61cm / 24” (60cm / 23.6” Viewable) LED Monitor

Caraterísticas principales

Descripción del producto

The VG2439m-LED widescreen monitor is one of two new members of ViewSonic’s new VG39 family. Its 61cm/24” (60cm/23.6” viewable) display with a native 1920 x 1080 resolution is big enough to replace dual monitor setups. What makes it even more appealing is the LED backlight for up to 50% energy savings. This monitor is also fully ergonomic with 90º pivot, height adjust, swivel and tilt. The slim bezel design coupled with hidden stereo speakers make the VG2439m-LED a space saver. You can put it on your desk or mount on your wall or on any VESA compliant monitor stand.

Visita

www.viewsonic.com

LCD

Tipo:	61cm / 24” (60cm / 23.6” viewable) wide
Ratio de contraste:	1,000:1 static (typ.)
Ángulos de visión:	170° horizontal / 160° vertical (typ.)
Área de visualización:	521 x 293mm
Resolución óptima:	1920 x 1080
Tiempo de respuesta:	5 ms (typ.)
Relación de aspecto:	16:9
Superficie del panel:	Anti-glare, hard-coating (3H)
Brillo:	300 cd / m² (typ.)
Relación de contraste dinámico:	20,000,000:1 dynamic
Retroiluminación:	White-light LED
Vida útil de retroiluminación:	30,000 hours (min.)

AUDIO

Altavoces: 2W x 2
COLORS

Black
COMPATIBILIDAD

PC: VGA up to 1920 x 1080 @ 60Hz (preferred)

Mac®: Power Mac (up to 1920 x 1080)

DIMENSIONES

Físicas sin la base:	560.3 x 332.7 x 58.2mm (22.05” x 13.09” x 2.29”)
Embalaje:	634 x 508 x 190mm (24.96” x 20” x 7.48”)
Físicas con la base:	560.3 x 435.2 x 239.6mm (22.05” x 17.13” x 9.43”)

NORMATIVAS

UL/cUL, FCC-B, ENERGY STAR®, EPEAT(Gold),

NOM, WEEE, RoHS, CE, CB, GOST-R, ERP,

Ukr SEPRO, CCC, REACH SVHC List
ENTRADA

Frecuencia: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz

Syncronización: H/V separated (TTL)

CONECTIVIDAD

USB:	x 2 (V2,0, 1-up / 2-down)
Alimentación:	Internal Power Board, 3-pin plug (CEE22)
Analógico:	15-pin mini D-sub (VGA)
Digital:	DVI-D (with HDCP), DisplayPort
Salida de audio:	3.5mm Headphones
Entrada de audio:	3.5mm

ALIMENTACIóN

Voltaje: AC 100–240V (universal), +/-10% Wide Range

Consumo: 24W (Typ.); Optimize: 19W (Typ.); Off/Standby <= 0.5W

CONTROLES

Básico:	Power, 1, down, up, 2
Menú en pantalla:	Auto Image Adjust, Contrast/Brightness, Input Select, DisplayPort, Audio Adjust, Audio Input, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

VESA® MONTAJE

100mm x 100mm
ERGONOMÍA

Inclinación: 20° ~ -5°

Giratoria: 360°

Ajuste de altura: 0-135mm

Pivote: 0-90°
PESO

Neto con base: 5.2 Kg (11.46 lbs)

Neto sin base: 3.7 Kg (8.15 lbs)

Bruto: 7.1 Kg (15.65 lbs)
CONDICIONES DE FUNCIONAMIENTO

Humedad: 10% to 90% (non-condensing)

Temperatura: 32° F to 104° F (0° C to 40° C)

PC:	VGA up to 1920 x 1080 @ 60Hz (preferred)
Mac®:	Power Mac (up to 1920 x 1080)

Frecuencia:	Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
Syncronización:	H/V separated (TTL)

Voltaje:	AC 100–240V (universal), +/-10% Wide Range
Consumo:	24W (Typ.); Optimize: 19W (Typ.); Off/Standby <= 0.5W

Inclinación:	20° ~ -5°
Giratoria:	360°
Ajuste de altura:	0-135mm
Pivote:	0-90°

Neto con base:	5.2 Kg (11.46 lbs)
Neto sin base:	3.7 Kg (8.15 lbs)
Bruto:	7.1 Kg (15.65 lbs)

Humedad:	10% to 90% (non-condensing)
Temperatura:	32° F to 104° F (0° C to 40° C)
