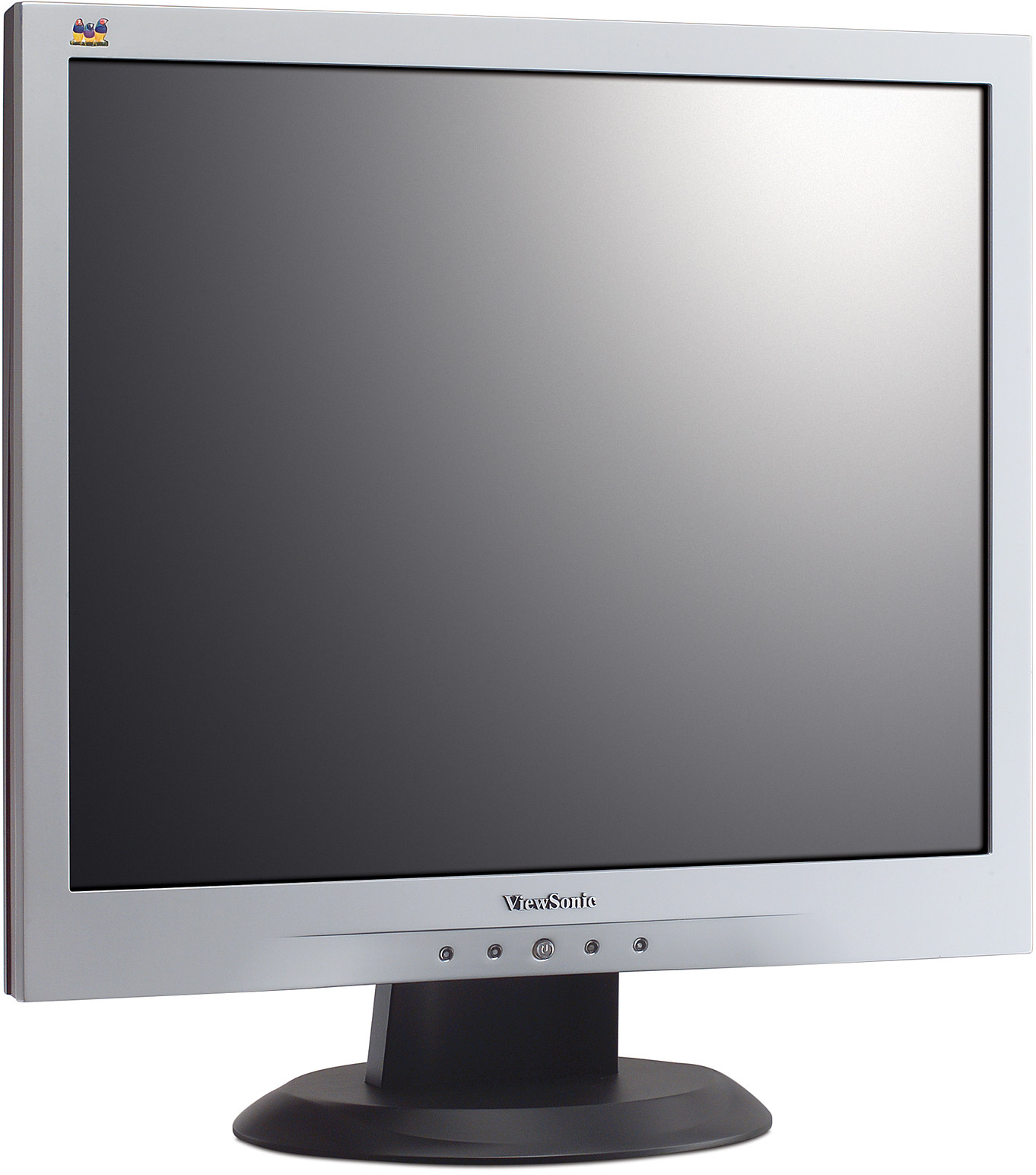

ViewSonic VA703m 17" VALUE SERIES LCD MONITOR WITH MULTIMEDIA

Caraterísticas principales

Descripción del producto

The 17" ViewSonic VA703m is the all-in-one price performance solution for all needs. No matter if your use is for entertainment or for intensive graphics, whether in the home or in the office, the VA703m fits the bill perfectly. Its 5ms response time delivers crisp images and fluid full-motion video for games, movies and scrolling text. Matched with 700:1 contrast levels and 300cd/m² brightness, the VA703m displays brilliant, vivid, true-to-life colours. Invisible built-in speakers deliver true multimedia performance. The slim styling and silver-black bezel add to the monitors appeal. Prepare to be impressed by the performance, quality and style of the VA703m.

Visita

www.viewsonic.com

COLORS

Black

LCD

Tipo:	17” TN colour TFT active matrix XGA LCD
Ratio de contraste:	700:1 (typ.)
Ángulos de visión:	160° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Brillo:	300cd/m² (typ.)
Área de visualización:	33.8cm horizontal x 27.0cm vertical; 43.2cm diagonal
Resolución óptima:	1280 x 1024@60Hz
Tiempo de respuesta:	5ms (off-on-off) (typ.)
Fuente de luz:	Long life, 50000 hrs. (min.)
Superficie del panel:	Anti-glare (3H)
Tamaño del píxel:	0.264mm
Gama de colores:	16.7M colours (6-bit + 2-bit FRC)
Frecuencia de píxel:	135MHz

COMPATIBILIDAD

PC: VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
DIMENSIONES

Físicas con la base: 379 x 400 x 210
NORMATIVAS

TCO’03, CE, CB, GS, Ergo, ISO13406-2 (pixel failure class II), UL/cUL, FCC-B, NOM, GOST-R, ENERGY STAR, BSMI, CCC, (PSB), (C-TICK), Green Mark, WEEE, RoHS
CONTENIDO DE LA CAJA

LCD Monitor, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO

Altavoces: 2 x 1 watt integrated invisible stereo speakers
CONECTIVIDAD

Analógico: 15-pin mini D-Sub (attached cable)

Alimentación: 3-pin AC plug (CEE22)

Audio: 3.5mm stereo audio line-in
ALIMENTACIóN

Voltaje: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumo: 36 watt (max.), <1 watt in power save mode

CONTROLES

Básico:

Power, menu [1], up, down, select [2]

Menú en pantalla:

Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 0°C – 40°C

Humedad: 10% – 90% (non-condensation)
PESO

Neto con la base: 3.6kg

Bruto: 4.8kg
ENTRADA DE VíDEO

Frecuencia: Fh: 30 – 82kHz, Fv: 50 – 75Hz

Syncronización: H/V separate (TTL)

Analógico: RGB analogue (0.7 Vp-p, 75 ohm)
GESTIÓN DE ENERGÍA

Meets TCO’03 and ENERGY STAR standards
SEGURIDAD

Kensington® security port
MONTAJE EN LA PARED

VESA FDMI 100mm x 100mm
ERGONOMÍA

Inclinación: Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)

Analógico:	15-pin mini D-Sub (attached cable)
Alimentación:	3-pin AC plug (CEE22)
Audio:	3.5mm stereo audio line-in

Voltaje:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumo:	36 watt (max.), <1 watt in power save mode

Temperatura:	0°C – 40°C
Humedad:	10% – 90% (non-condensation)

Frecuencia:	Fh: 30 – 82kHz, Fv: 50 – 75Hz
Syncronización:	H/V separate (TTL)
Analógico:	RGB analogue (0.7 Vp-p, 75 ohm)

Neto con la base:	3.6kg
Bruto:	4.8kg
