Pantalla LCD

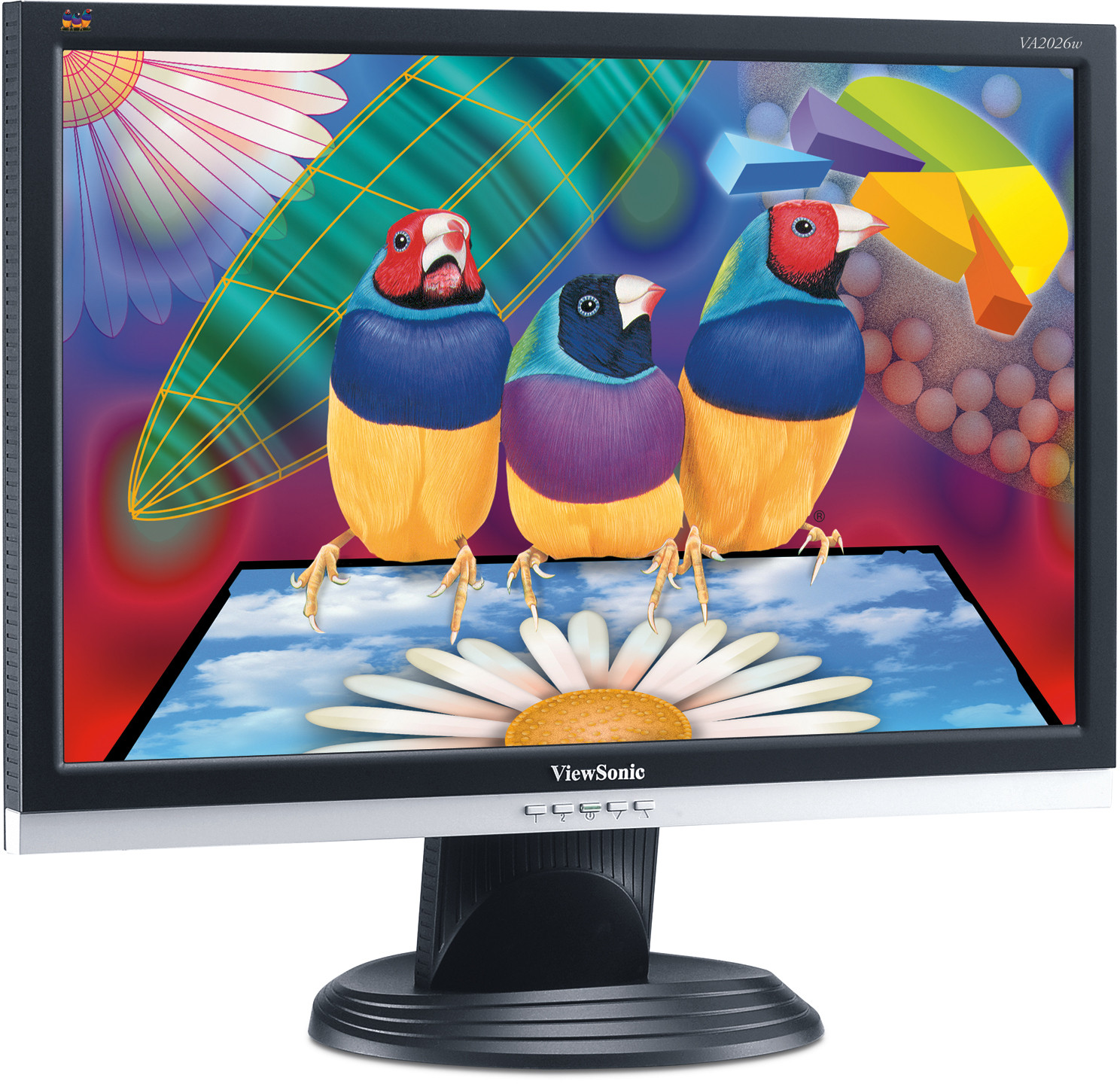

VA2026w
Caraterísticas principales
Descripción del producto
The ViewSonic VA2026w 20” widescreen LCD lets you see moreand helps to increase your efficiency. With its 16:10 aspect ratio and high 1680 x 1050 native resolution, you see more details, more information and you get a faster overview. View two full-size documents side-by-side or work in multiple applications simultaneously. The ultrahigh contrast ratio of 2000:1, 300cd/m² brightness and ClearMotiv™ fast video response time provide extremely clear text, images and videos with life-like colour reproduction. For best possible signal connections the VA2026w offers digital (with HDCP) and analogue inputs. This stylish LCD is the feature-rich, affordable upgrade for your office and home.
Visita
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 20” Wide TN colour TFT active matrix WSXGA+ LCD Ratio de contraste: 1000:1 (typ.), 2000:1 (DCR, typ.) Ángulos de visión: 170° horizontal, 160° vertical (at 10:1)
175° horizontal, 170° vertical (at 5:1)Brillo: 300cd/m² Área de visualización: 43.3cm horizontal x 27.1cm vertical, 51.1cm diagonal Tiempo de respuesta: 5ms (off-on-off) (typ.) Fuente de luz: Long life, 40000 (min.) Resolución nativa: 1680 x 1050@60Hz Superficie del panel: Anti-glare (3H) Tamaño del píxel: 0.258mm Gama de colores: 16.7M colours supported (6-bit + 2-bit FRC) Frecuencia de píxel: 135MHz -
COMPATIBILIDAD
PC: VGA up to 1680 x 1050 non-interlaced Mac®: Power Mac™ up to 1680 x 1050 non-interlaced -
DIMENSIONES
Físicas con la base: 472 x 408 x 225 Físicas sin la base: 472 x 327 x 65 Embalaje (LxAxP): 526 x 448 x 127 -
NORMATIVAS
TCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R, Hygienic (20 copies), UL, cUL, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark CCC, VCCI, WEEE, RoHS -
CONTENIDO DE LA CAJA
LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
AUDIO
Altavoces: 2x2.5-watts -
CONECTIVIDAD
Analógico: 15-pin mini D-Sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) (HDCP enabled) Alimentación: 3-pin AC plug (CEE22) -
ALIMENTACIóN
Voltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply Consumo: 38 watt (typ.), <1 watt in power save mode -
CONTROLES
Básico: Power, menu [1], up, down, select [2] Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 0°C–40°C Humedad: 20%–90% (non-condensation) -
PESO
Neto con la base: 4.9kg Bruto: 6.4kg -
ENTRADA DE VíDEO
Frecuencia: Fh: 24–82kHz, Fv: 50–75 Hz Syncronización: H/V separate (TTL), composite, sync on green Analógico: RGB analogue (0.7/1.0 Vp-p, 75 ohm) Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI) -
GESTIÓN DE ENERGÍA
TCO’03 and ENERGY STAR standards -
SEGURIDAD
Kensington security port -
MONTAJE EN LA PARED
VESA FDMI 100mm x 100mm -
ERGONOMÍA
Inclinación: -5°/+20°
