Caraterísticas principales

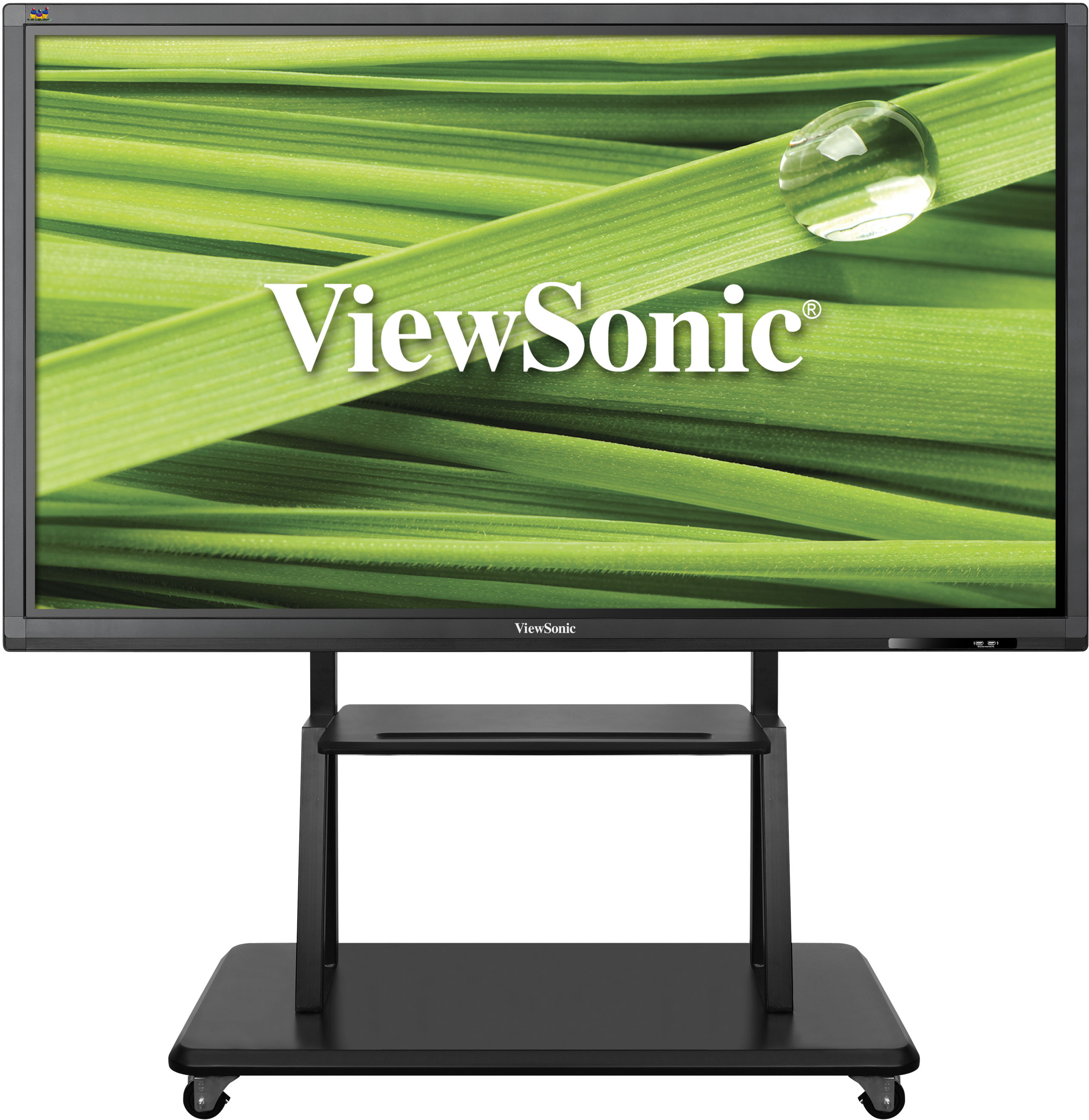

SWB8451
Descripción del producto
The ViewSonic SWB8451 is an 84" interactive display ideal for educational and corporate meeting applications, as well as for scientific, GIS, and wayfinding applications. With 6-point simultaneous touch technology, this Smart WhiteBoard encourages collaboration and allows two or three users to simultaneously write or draw on the display's surface with their fingers or stylus. The large-format LED screen guarantees the ultimate in colour, clarity, and image detail. Equipped with a tempered glass overlay, anti-glare treatment, and rounded corners, the SWB8451 is designed for heavy usage in high- traffic areas. The ViewSonic SWB8451 Smart Whiteboard is the perfect solution where touch interactive performance is needed.
Visita
  • www.viewsonic.com
  • LCD
    Tipo: TFT LCD module with LED backlight
    Área de visualización efectiva: 3,840 (H) x 2,160 (W) (84.04” diagonal)
    Ratio de contraste: 1600:1 (typ.)
    Ángulos de visión: H = 89, V = 89  (typ.)
    Brillo: CR : 5,000 (typ.) / 350 nits (typ.)
    Tiempo de respuesta: Total (ON + OFF) = 8ms
    Resolución nativa: 1920 x 1080p @60Hz
    Superficie del panel: Anti-glare
    Gama de colores: 1.06B colors
    Tamaño: 84"
  • DIMENSIONES
    Físicas (AnxAlxP): 1,978 x 1,186 x 86 mm / 77.9 x 46.7 x 3.4 in
    Display: 2,180 x 1,480 x 340 mm / 85.83 x 58.27 x 13.39 in
    Montaje en pared: 1,000 x 280 x 55 mm / 39.37 x 11.02 x 2.17 in
  • NORMATIVAS
    FCC, CE, BSMI, CCC
  • ALIMENTACIóN
    Voltaje: 100-240VAC +/- 10% Wide Range
  • CONTROLES
    Menú en pantalla: *1
    Físicas: Top: POWER, INPUT, MENU,CH ^, CH v, VOL+, VOL-
  • VESA® MONTAJE
    600 x 600mm
  • ACCESORIOS INCLUIDOS
    1. VGA cable

    2. Power cable x 4

    3. Remote control

    4. USB cable

    5. Audio cable

    6. Touching pen x 3

    7. User manual CD wizard
  • AUDIO
    Altavoces: 15W x 2 @THD = 10%
    Microphone: None
  • PESO
    Bruto: 140 kgs / 308.65 lbs
    Neto: 116 kgs / 255.74 lbs
    Montaje en pared: 6.5 kgs / 14.33 lbs
  • CONDICIONES DE FUNCIONAMIENTO
    Humedad: 20% ~ 80%, non-condensing
    Temperatura: 32°F to 104°F (0°C to 40°C)
  • RELIABILITY
    Backlight: 30,000 Hours (typ.)
  • BUILT-IN PC
    Gráfica: Integrated Intel HD 3000
    Memória: DDR III 2GB (SWB8451-3_ SWB8451-3)  DDR III 4GB (SWB8451-5_SWB8451-5)
    Networking: Integrated 10/100/1000M Adaption
    Procesador: Intel Core i3 (SWB8451-3_ SWB8451-3) Intel Core i5 (SWB8451-5_ SWB8451-5)
    Sound Card: Integrated High Definition Audio Stereo
    Almacenamiento: 2.5” SATA2 HDD 320GB (SWB8451-3_ SWB8451-3) 2.5” SATA2 HDD 500GB (SWB8451-5_ SWB8451-5)
  • REMOTE CONTROL UNIT (RCN)
    Range: Straigt-line distance: 8M

    Transmit angle ± 30° ³ 6M
    Tipo: IR
  • STORAGE / SHIPPING CONDITION
    Humedad: 10% ~ 90%, non-condensing
    Temperatura: -4°F to 140°F (-20°C to 60°C)
  • VIDEO FORMAT
    Compatibilidad: RGB PC/HDMI PC: Refer to timing table

    CVBS: 480i

    S-Video: 480i, 576i

    YPbPr: 480i, 480p, 720p, up to 1080p

    HDMI: 480i, 720p, up to 1080p
  • INPUT / OUTPUT
    Conexiones: Display: HDMI x 2 RGB x 2 PC audio (mini stereo) x 2 S-Video x 1 CVBS IN x 1 CVBS OUT x 1 Shared RCA Audio x 1 YPbPr x1 USB A Type (for F/W) x 1 USB B Type (for touch) x 1 SPIDF x 1 RS232 x 1

    PC: AUDIO OUT x 1 MIC x 1 VGA OUT x 1 LAN IN x 1 USB x 4
  • DISPLAY PC/RGB MODES
    Supported: Refer to the compatibility table

    *If a mode isn’t specifically listed, full compatibility is not guaranteed. Results may vary between video cards / drivers.
  • POWER SAVING FUNCTION
    Off (Suspend): Red indicator, < 0.5 W
    On: Green indicator, < TBDW
    Power-saving Mode: Green indicator flashing, < 0.5 W
