ViewBoard
IFP7530
Caraterísticas principales
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- ENERGY STAR® certified
Descripción del producto
The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by build in ViewBoard vCAST wireless presentation application for instant screen sharing. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

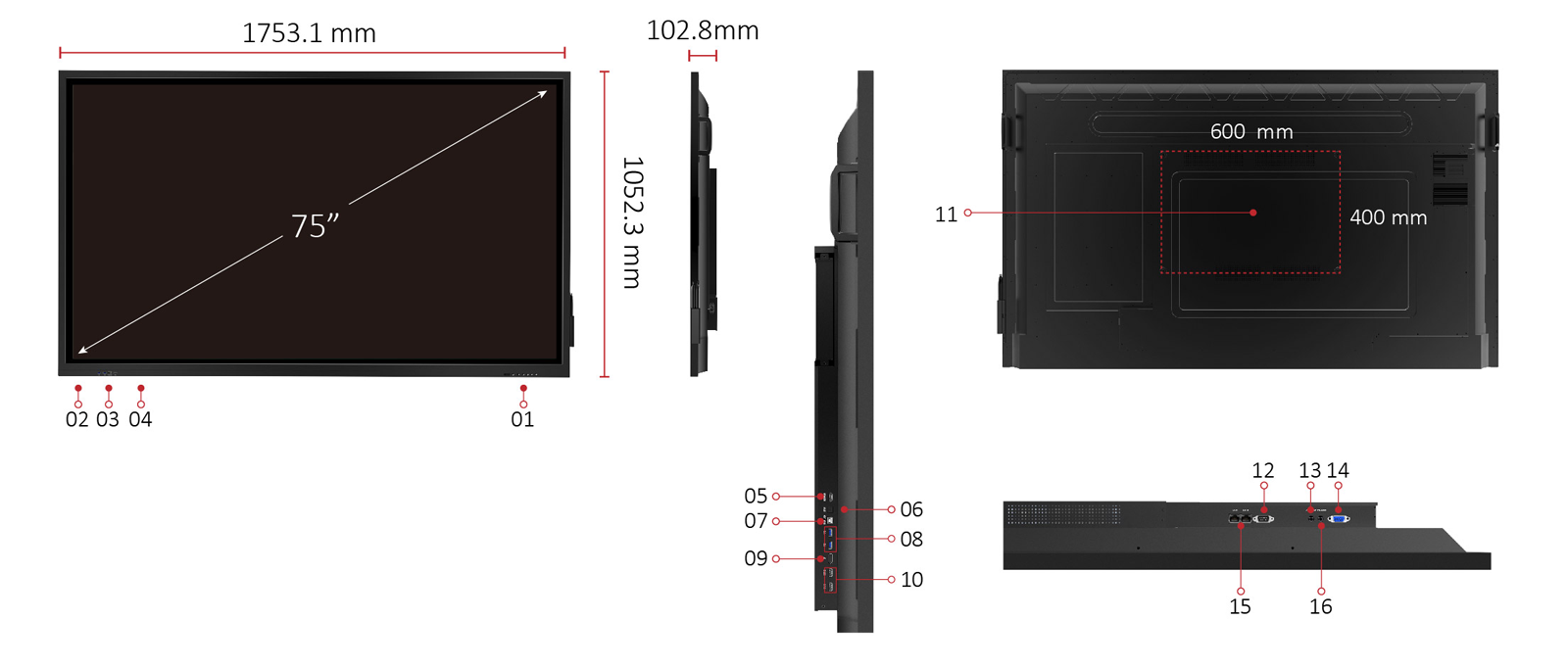

- CONTROLS PANEL
- USB X 2
- TOUCH USB
- HDMI IN
- HDMI OUT
- SPDIF OUT
- TOUCH USB
- USB X 2
- DISPLAY PORT IN
- HDMI IN X 2
- VESA® WALL Mount 600x400 mm
- RS232 IN
- AUDIO OUT
- VGA IN
- LAN X 2
- PC AUDIO IN
Visita
- www.viewsonic.com
-
DISPLAY
Tamaño del panel: 75" Type/Tech: IPS/V-by-one Área de visualización (mm): 1647.36*926.64mm Relación de aspecto: 16:9 Resolucion nativa: 3840x2160 Colores: 10 bits Brillo: 450(Typ.)
400(min.)Relación de contraste: 1200:1 Tiempo de respuesta: 8ms(Type) Ángulos de visión: H = 178, V = 178 typ. Vida útil de la retroiluminación: 30,000hr(min) Tratamiento de superficies: Dureza: 7H (stylus 9H), revestimiento antirreflectante Bisel: 29/29/29/49.7mm(btm.) Orientación: Landscape -
PLATAFORMA
Procesador: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz RAM: 3GB DDR4 Almacenamiento: 16GB -
TOUCH
Tipo/Tecnología: IR Recognition Resolución táctil: 32767W*32767D Puntos táctiles: 20 points -
INPUT
HDMI: Front*1
Rear* 2
All ports HDMI2.0RGB / VGA: 1 DisplayPort: DP1.2*1 Audio: PC audio in (3.5 mm)*1 RS232: x1 OPS: 1 -
OUTPUT
HDMI: *1 Audio: 3.5mm Earphone Out *1, SPDIF*1 SPDIF: x1 -
LAN
RJ45: *2
10M/100 -
USB
Tipo A: USB2.0 *4 (Front:*2 Rear: *2 ) Tipo B: For touch (Front*1, rear*1)) -
ALTAVOCES
ALTAVOCES: 15WX2 -
SOPORTE PARA WEBCAM EN LA PARTE SUPERIOR
Soporte para Webcam en la parte superior: yes -
COMPATIBILITY
RGB PC / HDMI PC: VGA: 1080p
HDMI: 4KHDMI: 3840x2160 DisplayPort: 3840x2160 -
SISTEMA OPERATIVO INTEGRADO
Sistema operativo integrado: OS 8.0 to Android 8.0 -
ALIMENTACIóN
Voltaje: PB model:
100-240VAC +/- 10% Wide RangeConsumo: On: 115W(Typ.)
Off: <0.5W -
ERGONOMICS
Montaje en pared (VESA®): 600 x 400 -
OPERATING CONDITIONS
Temperatura (º C): 0°C to 40°C Humedad: 20% ~ 80% RH Non-Condensing(working) -
DIMENSIONES (W X H X D)
Físico (pulgadas / mm): 1753.1*1052.3*102.8(mm)
69.02*41.43*4.05(inch)Embalaje (pulgadas / mm): 1880*1160*280(mm)
74*45*11(inch) -
WEIGHT
Neto (lb / kg): 135lb, 61.25kg Bruto (lb / kg): 173.8lb, 78.85kg -
VERSIóN ENERGY STAR
Versión Energy Star: YES -
CALIFICACIóN EEI
Calificación EEI: A+ -
CONTENIDO DEL EMBALAJE
CONTENIDO DEL EMBALAJE:
1. US/EU/UK/AU power cord 3M, no PE bag
2. QSG
3. Compliance statement
4. HDMI cable 3M*1
5. Touch USB cable 3M *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws -
PC ENCASTRABLE COMPATIBLE
PC encastrable compatible: VPC12 series
