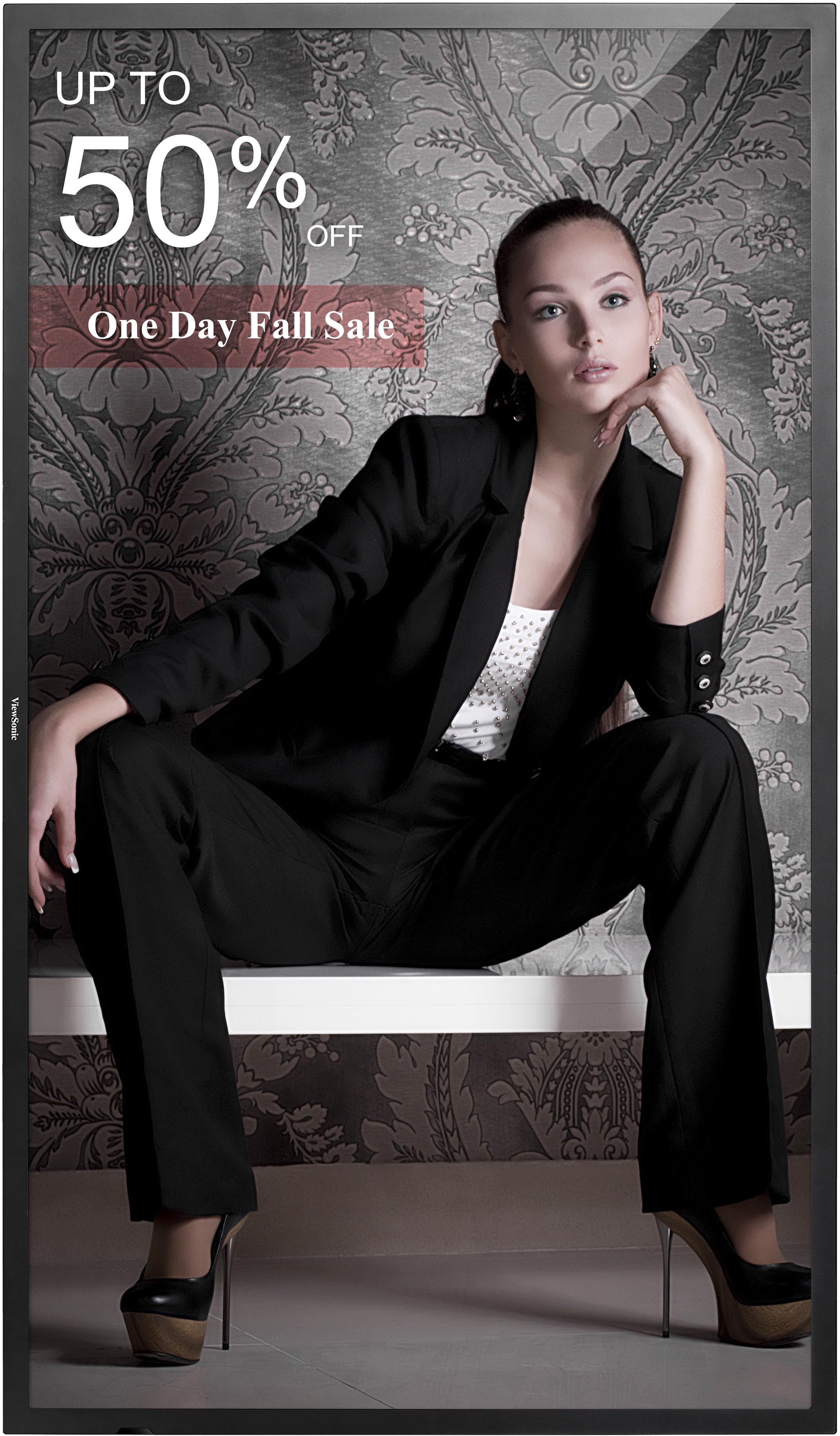

ViewSonic CDE5500-L 55” Narrow Bezel Commercial LED Display

Caraterísticas principales

Descripción del producto

The ViewSonic CDE5500-L is a 55’’ (55’’ viewable) commercial LED display with a 24mm narrow-bezel design that delivers more impactful visual messaging for corporate, retail, hospitality, and other indoor environments. An integrated media player supports USB-drive playback of videos, photos, and music, as well as content scheduling. In addition, it provides LAN content loading from PCs or mobile devices via network connection, offering an efficient and fast way to display content. Featuring Full HD 1080p resolution, 350-nit high brightness, 1400:1 high contrast ratio, SuperClear® technology for improved wide-angle viewing, and dual 7W stereo speakers, the CDE5500-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. Versatile connectivity options include HDMI, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Integrated RS232 with IR pass-through and a one-time setting function make the CDE5500-L an easy-to-manage solution for multiple-display configurations.

Visita

www.viewsonic.com

LCD

Tipo:	TFT LED Module with LED Backlight
Ratio de contraste:	1400:1 Typ.
Ángulos de visión:	178° horizontal, 178° vertical SuperClear®
Área de visualización:	1209.6(H) x 680.4 (V) (55” diagonal)
Resolución óptima:	1920x1080
Tiempo de respuesta:	6ms
Relación de aspecto:	16:9
Superficie del panel:	Hardness 3H
Gama de colores:	16.7M colours
Tamaño:	55” (55” viewable)
Brillo:	350 cd/m2
Retroiluminación:	LED
Vida útil de retroiluminación:	30,000 Hours Typ

COMPATIBILIDAD

Component: 480i, 480p,720p,1080i,1080p

DVI-D: 480i, 480p,720p,1080i,1080p

HDMI: 480i, 480p,720p,1080i,1080p

RGB PC / HDMI PC: Refer to timing table

CONECTIVIDAD

CVBS:	(Share with component Y) x 1
HDMI (entrada):	x 1
RS-232:	x 1
Audio (entrada/salida):	x 1 (RCA L/R) / x 1 (RCA L/R)
USB:	x 1
PC-VGA:	x 1
Entrada componentes:	x 1
DVI:	DVI-D x 1
Red:	x 1 (RJ45)
PC Audio Input:	x 1 (3.5mm jack)
IR Pass Through:	x 1

DIMENSIONES

Físicas sin la base: 49.8 x 29 x 1.7 / 1264.7 x 735.5 x 42.8 (inch/mm)

Embalaje: 54.1 x 34.3 x 5.9 / 1374 x 870 x 150 (inch/mm)
NORMATIVAS

CE, CB, WEEE, C-tick, FCC, ICES003, UL/cUL, CE,CB, CU, Energy star 6.0,
CONTENIDO DE LA CAJA

1.CDE5500-L LCD Monitor

2.Remote Control with batteries

3.User manual CD wizard

4.Quick Start Guide

5.Power Cables

6.VGA cable

7.RS232 cable

*Actual content may differ from market to market
ALIMENTACIóN

Voltaje: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

Consumo: 109 W (typ), 128 W (max)

CONTROLES

Imagen:	POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU. Picture style, Restore style, Backlight, Contrast, Brightness, Colour, Sharpness, Advanced, Game or Computer, Format and edges
Configuración 1:	Menu language, Monitor id, Eco mode, Auto search, Clock, USB scheduling, Sleep timer, Auto switch off, Control settings, Factory settings
Configuración 2:	View network settings, Network configuration, Static IP configuration, Digital Media Render, Network name
Sound:	Sound style, Restore style, Bass, Treble, Audio out, Advanced

VESA® MONTAJE

400 x 400mm
PESO

Bruto: 56.4 / 25.6 (lb / kg)

Neto sin base: 46.7 / 21.2 (lb / kg)
CONDICIONES DE FUNCIONAMIENTO

Humedad: 20% ~ 80% @40°C non-condensing

Temperatura: 0°C to 40°C
WARRANTY

3-year limited

**Warranty offered may differ from market to market
AUDIO I/O

Speakers: 7W x 2

SPDIF out: x 1

Component:	480i, 480p,720p,1080i,1080p
DVI-D:	480i, 480p,720p,1080i,1080p
HDMI:	480i, 480p,720p,1080i,1080p
RGB PC / HDMI PC:	Refer to timing table

Físicas sin la base:	49.8 x 29 x 1.7 / 1264.7 x 735.5 x 42.8 (inch/mm)
Embalaje:	54.1 x 34.3 x 5.9 / 1374 x 870 x 150 (inch/mm)

Voltaje:	100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumo:	109 W (typ), 128 W (max)

Bruto:	56.4 / 25.6 (lb / kg)
Neto sin base:	46.7 / 21.2 (lb / kg)

Humedad:	20% ~ 80% @40°C non-condensing
Temperatura:	0°C to 40°C

Speakers:	7W x 2
SPDIF out:	x 1
