Caraterísticas principales

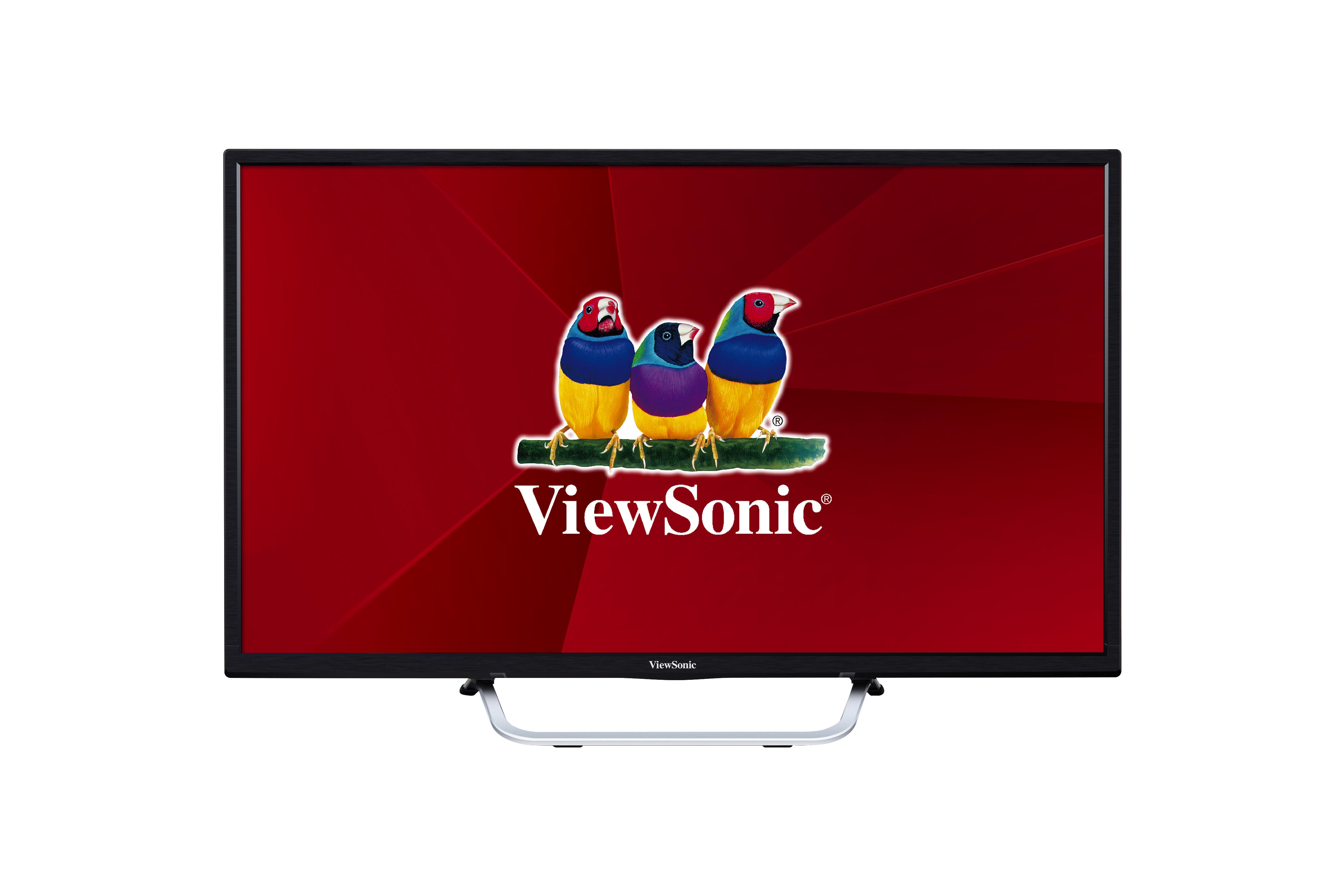

CDE3203
Descripción del producto
The ViewSonic CDE3203 is a great value, high performance 32’’ Full HD LED commercial display for hotel, restaurant and hospitality environments. In addition to versatile connectivity options, including HDMI, VGA, and SPDIF, the display comes with a simple and convenient USB multimedia playback functionality. With 1920x1080 resolution, 350-nit brightness, wide viewing angles and dual 10W stereo speakers, the slim-bezel CDE3203 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
Visita
  • www.viewsonic.com
  • LCD PANEL
    Tamaño del panel: 31.5'' diagonal
    Tipo/Tecnología: TFT LCD Module with WLED Backlight
    Área de visualización (mm): 698.4 (H) x 392.85 (V) mm
    Relación de aspecto: 16:9
    Resolución: 1920 x 1080
    Colors: 16.7 colors (8 bits)
    Brillo: 320 nits (typ.)
    Relación de contraste: 1200:1 (Typ.) ; 900:1 ( min.)
    Tiempo de respuesta: 8 ms (typ.)
    Ángulos de visión: H = 178, V = 178 (typ.)
    Backlight: WLED
    Vida útil de la retroiluminación: 30,000 Hours (typ.)
    Hardness: Hard coating(3H), Anti-Glare(Haze 1%)
  • INPUT
    HDMI: x2 (HDMI 1 has MHL)
    RGB / VGA: x1
    DVI: x1
    Audio: x1 (L/R)
    CVBS/ Composite: x1 (shared with Y)
    YPbPr/ Component: x1
    RS232: x1
    IR Passthrough: x1
  • OUTPUT
    Audio: x1
    SPDIF: x1
  • USB
    Tipo A: x1
  • ALTAVOCES
    10Wx2
  • COMPATIBILITY
    RGB PC / HDMI PC: Up to 1920x1080 @60Hz
    CVBS: 480i,576i
    YPbPr: 480i, 480p,720p, up to 1080p
    HDMI: 480i, 480p,720p, up to 1080p
    DVI: Up to 1920x1080 @60Hz
  • CONTROLS
    Physical- Top OSD: Picture Mode Contrast Brightness Tint Color Blue Light Filter Color Temo Advance Zoom Mode DLC Sound Mode Bass Treble Digital Output Surround Sound AVC Balabce Sleep Timer Time Zone DST Time Format Clock Time Management Menu Language Transparent OSD Time Out Restore Default Sofeware Upgrade CEC BlueScreen Monitor ID HDMI Mode System Lock
  • POWER
    Voltaje: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumo: 68W (max.); 41W (default)
  • ERGONOMICS
    Wall Mount (VESA® ): 100*200 mm (suggested screw: M4*L7 (C*D))
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Humedad: 15% ~ 90% @ 40°C Non-condensing.
  • DIMENSIONS (W X H X D)
    Physical w/stand (inch / mm): 28.71 x 18.33 x 6.47/ 729.2 x 465.7 x 164.3
    Physical w/o stand (inch / mm): 28.71 x 16.92 x 1.91/ 729.2 x 429.7 x 48.5
    Embalaje (pulgadas / mm): 31.3 x 19.8 x 4.8/ 796 x 504 x 121
  • WEIGHT
    Net w/ stand (lb / kg): 11.88/ 5.4
    Net w/o stand (lb / kg): 11.66/ 5.3
    Bruto (lb / kg): 15.84/ 7.2
  • WARRANTY
    **Warranty offered may differ from market to market
  • WHAT'S IN THE BOX?
    1. Remote control with AAA batteries x2 2. Power cord (USx1 for VSA); (EUx1, UKx1 for VSE) 3. User Guide (CD, 4 languages, English/ French/Spanish/Simplified Chinese) 4. Quick Start Guid (Hared Copy, 1 languages, English for VSA) 5. Stand STND-043 *Actual content may differ from market to market
