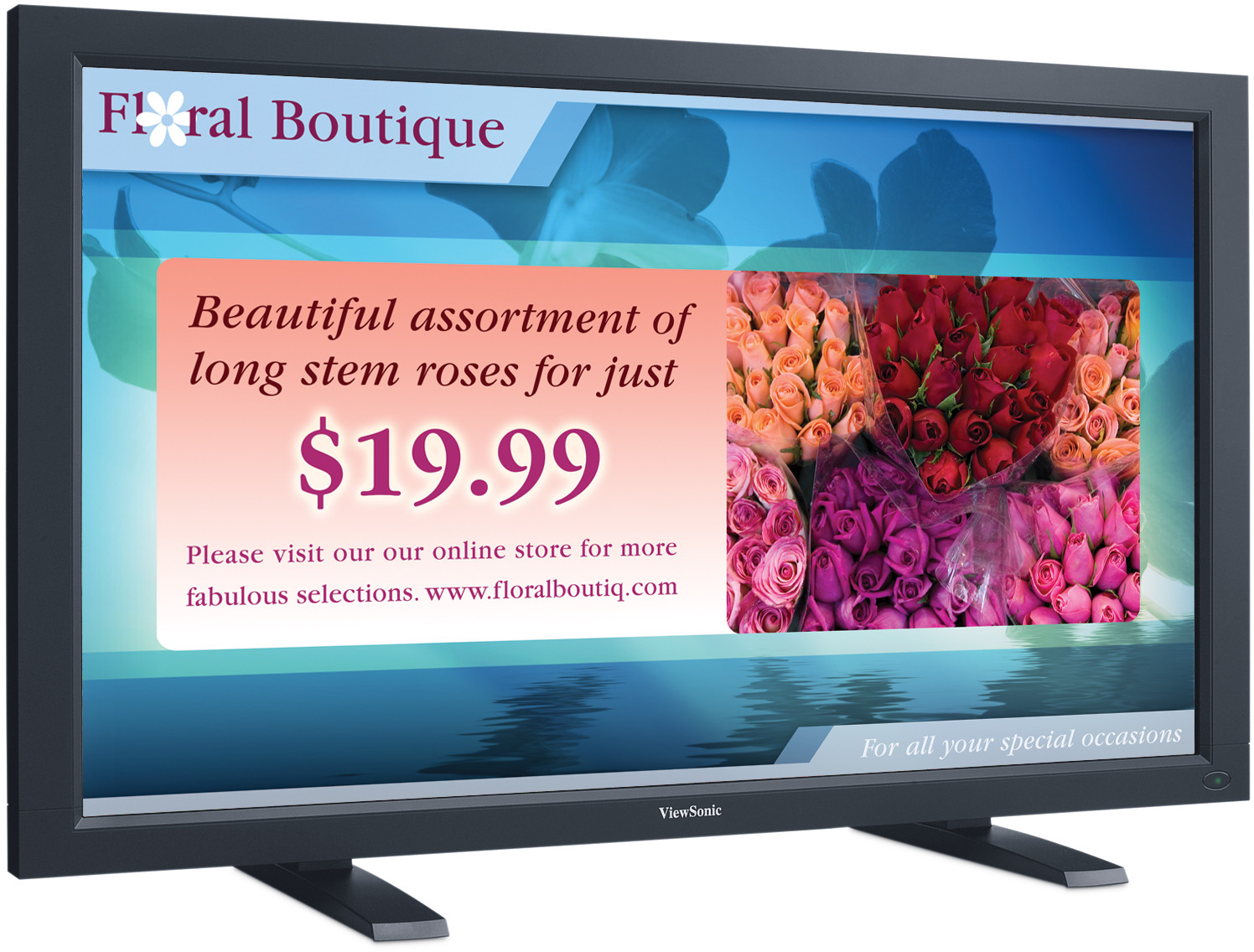

ViewSonic CD4220 High impact digital signage

COLORS

Black

LCD

Tipo:	107 cm / 42" wide colour TFT active matrix
Ratio de contraste:	1500:1 (typ.)
Ángulos de visión:	178° horizontal, 178° vertical (at 10:1)
Brillo:	500cd/m²
Área de visualización:	93.0cm horizontal x 52.3cm vertikal, 106.7cm diagonal
Tiempo de respuesta:	8 ms (Grey-to-Grey)
Relación de aspecto:	16:9
Resolución nativa:	1366 x 768
Superficie del panel:	Anti-glare, hard coating (2H)

DIMENSIONES

Físicas (AnxAlxP): 1022 x 612 x 127 mm (without stand)
NORMATIVAS

CE, CB, TÜV/GS, GOST, UL/cUL, FCC-B, NOM, WEEE, RoHS
CONTENIDO DE LA CAJA

LCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
AUDIO

Señal: 2 x 7 watt with SRS TruSurround¹

CONECTIVIDAD

Salida de audio:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Entrada de vídeo compuesto:	1 x RCA (CVBS) 1 x BNC (CVBS)
Entrada de vídeo por componentes:	3 x BNC (YPbPr/YCbCr)
Entrada de audio:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Entrada analógica:	1 x 15-pin mini D-Sub (detachable cable)
Salida analógica:	1 x 15-pin mini D-Sub (detachable cable)
Salida de vídeo compuesto:	1 x BNC (CVBS)
Alimentación:	1 x 3-pin plug
Control/salida de red:	1 x 9-pin mini D-sub RS-232
Control/entrada de red:	1 x 9-pin mini D-sub RS-232
Entrada digital:	1 x HDMI (with HDCP)

ALIMENTACIóN

Voltaje: AC 100–240V (universal), 50/60Hz

Consumo: <246 watt, <5 watt in power save mode

CONTROLES

Básico:

Power, menu, exit, source, up/down, volume, mute, main power switch

Menú en pantalla:

Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature, colour User-RGB, picture reset),
Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset),
Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset),
Configuration Menu (auto setup, auto adjust, power save, OSD language, screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset),
Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], power on delay, date/time, auto on/off scheduler [day, hour, minute, input], monitor ID, DDC/CI, sync type, advanced reset)

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 0°C–40°C landscape mode, 5°C–35°C portrait mode

Humedad: 20%–80% (non-condensing)
PESO

Neto: 29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)

Bruto: 34.7kg

ENTRADA DE VíDEO

Frecuencia:	Fh: 15.6kHz, 15.7kHz, 31-91kHz, Fv: 50-75Hz
Syncronización:	H/V separate (TTL), composite, sync on green
Analógico:	RGB analogue (0.7/1.0 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
Digital:	HDMI (HDCP enabled; TMDS, 100 ohm)

MONTAJE EN LA PARED

VESA FDMI 400mm x 200mm, M6 screws

Voltaje:	AC 100–240V (universal), 50/60Hz
Consumo:	<246 watt, <5 watt in power save mode

Temperatura:	0°C–40°C landscape mode, 5°C–35°C portrait mode
Humedad:	20%–80% (non-condensing)

Neto:	29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)
Bruto:	34.7kg
