VA709

17” Home and Office Monitor

75Hz Refresh rate delivers fluid visuals
Eye ProTech for comfortable viewing
VGA and DVI inputs for flexible connectivity
Eco-mode for low energy consumption
Various ViewMode color rendering options

Sales Enquiry

GALLERY

OVERVIEW

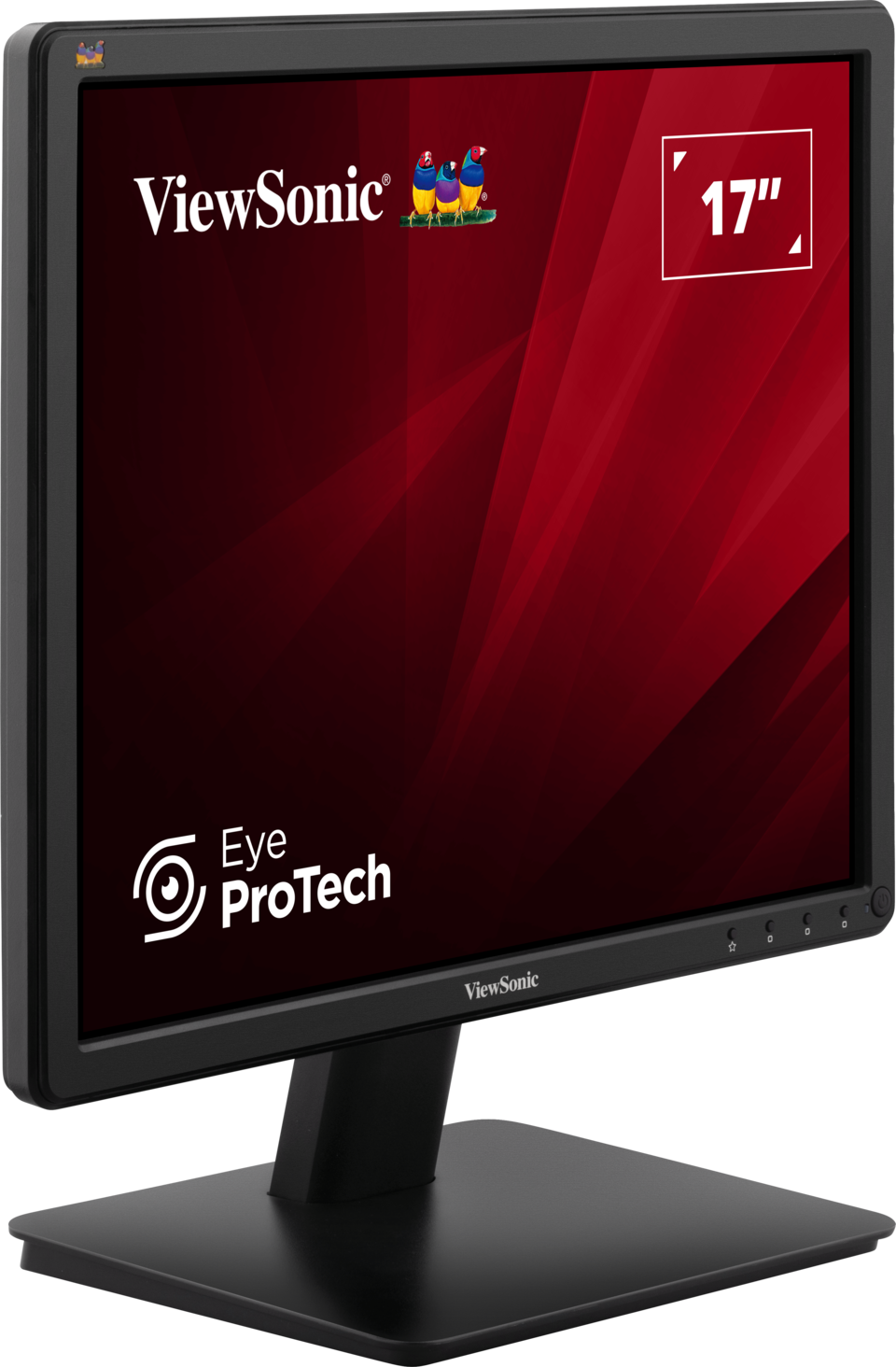

The ViewSonic VA709 is a 17” high 1280 x 1024 resolution monitor featuring VGA and DVI inputs for business and home use. The optimal screen performance and comfortable viewing is delivered through Eye ProTech technology, and various ViewMode presets. Experience truly seamless multitasking on just one screen with a VESA-compatible mount at a low power consumption.

Legacy Application-friendly

The VA709 boasts a 1280 x 1024 resolution, ensuring sharp text and brilliant HD image quality. With a 5:4 aspect ratio, the display is designed to accommodate all legacy and business-related applications.

5:4 Aspect Ratio, 1280 x 1024 Resolution

Smooth Visuals With 75Hz Refresh Rate

With a fast 75Hz screen refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity.

75Hz Refresh Rate

React Instantly

Experience better performance and smooth pixel transitions with a fast 5ms (MPRT) response time. React faster and work with precision.

5ms Response Time

Connection Flexibility

VGA and DVI inputs give you the freedom to connect your monitor to a wide range of devices.

VGA / DVI

Eye ProTech for Comfortable Viewing

Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.

Flicker-Free & Blue Light Filter

Color Rendering Options

ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing.

ViewMode: Game/Movie/Web/Text/Mono

Low Energy Consumption

Designed with energy efficiency in mind, ViewSonic’s Eco Mode successfully reduces carbon footprint and significantly lowers office overhead costs.

Eco Mode

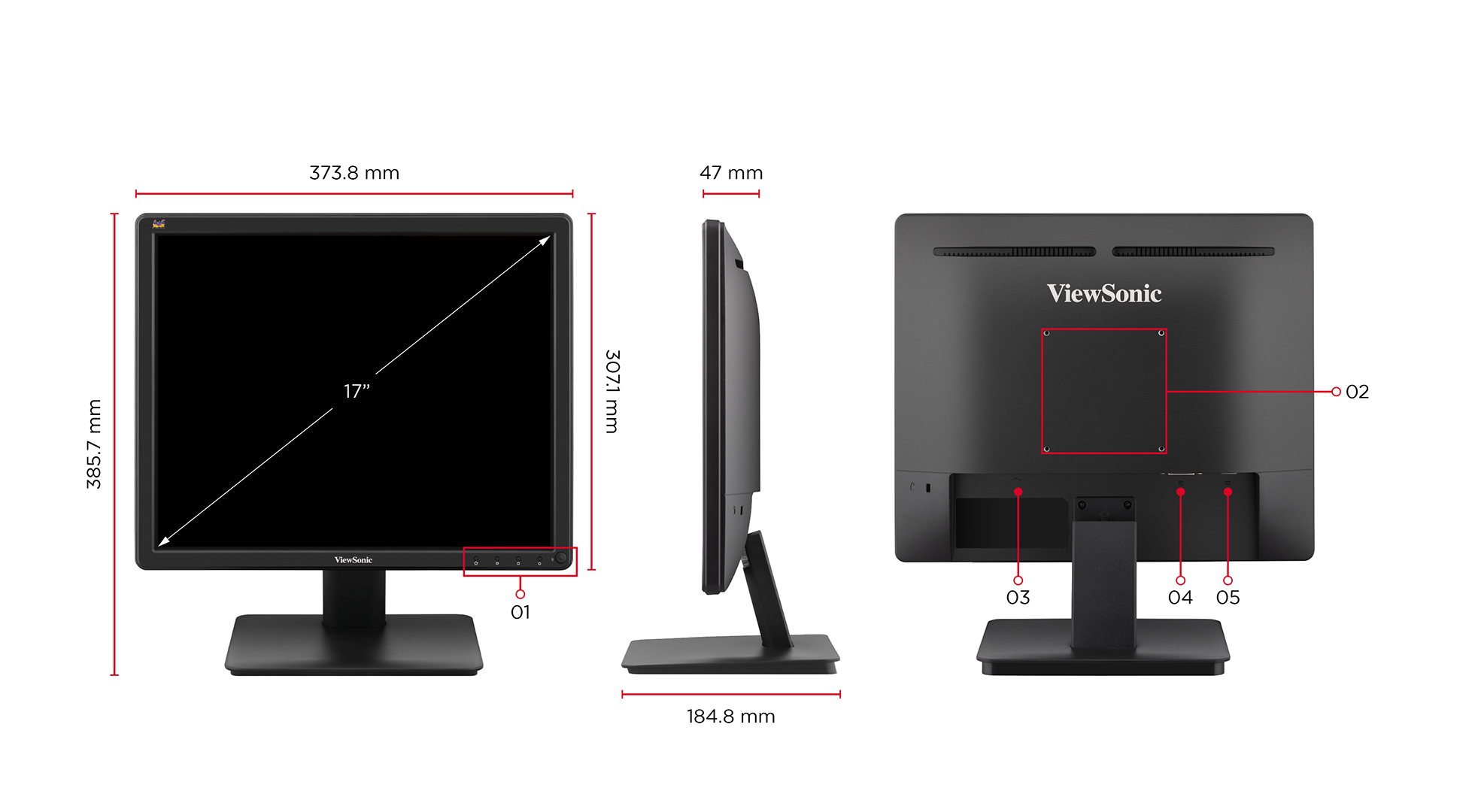

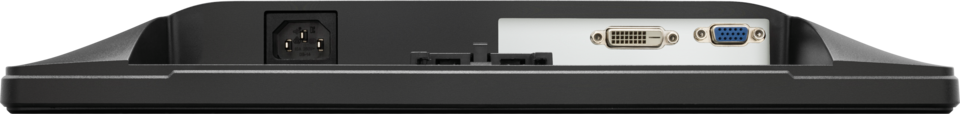

Dimension & I/O Ports

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

100mm x 100mm VESA mount

Menu Control Panel
VESA Compatible
(Wall Mount 100 x 100mm)
Power In
DVI
VGA

SPECIFICATIONS

Display
Display Size (in.): 17
Viewable Area (in.): 17
Panel Type: TN Technology
Resolution: 1280 x 1024
Resolution Type: SXGA (Super XGA)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 5:4
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.264 mm (H) x 0.264 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1280x1024
Mac® Resolution (max): 1280x1024
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1280x1024
Connector
VGA: 1
DVI-D (Dual Link): 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Eco Mode (Conserve): 10W
Eco Mode (optimized): 12W
Consumption (typical): 14W
Consumption (max): 16W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 30 ~ 83KHz
Frequency Vertical: 50 ~ 76Hz
Video Input
Digital Sync: TMDS - DVI-D
Analog Sync: Separate - RGB Analog
Ergonomics

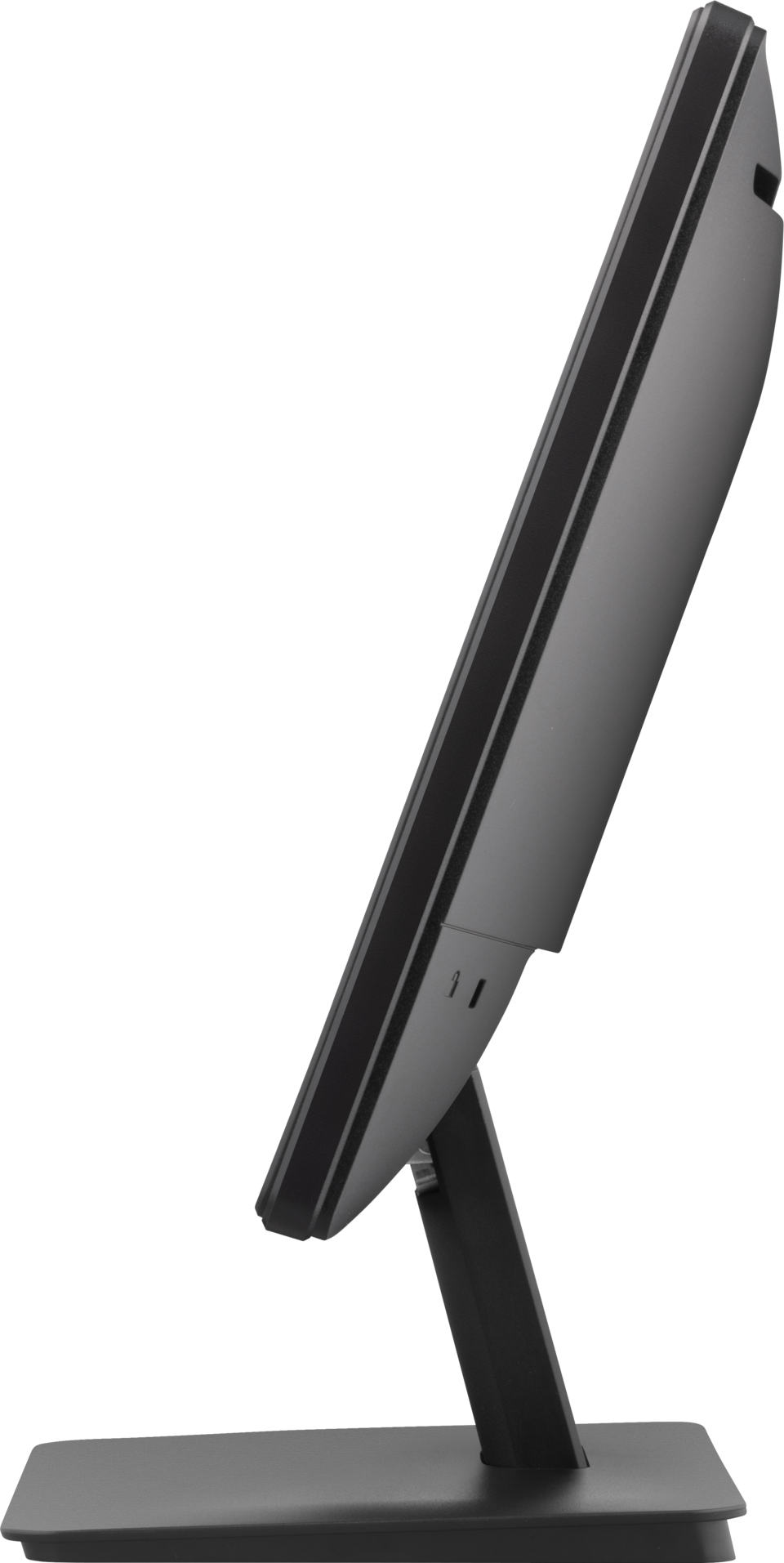

Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 5.5
Net Without Stand (lbs): 4.6
Gross (lbs): 7.7
Weight (metric)
Net (kg): 2.5
Net Without Stand (kg): 2.1
Gross (kg): 3.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.6 x 15 x 5.4
Physical (in.): 14.72 x 15.19 x 7.28
Physical Without Stand (in.): 14.72 x 12.09 x 1.85
Dimensions (metric) (wxhxd)
Packaging (mm): 446 x 382 x 138
Physical (mm): 373.8 x 385.7 x 184.8
Physical Without Stand (mm): 373.8 x 307.1 x 47
General
Regulations: RoHS, WEEE, BSMI, CCC, China RoHS, China Energy Label, CECP
PACKAGE CONTENTS: VA709 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
