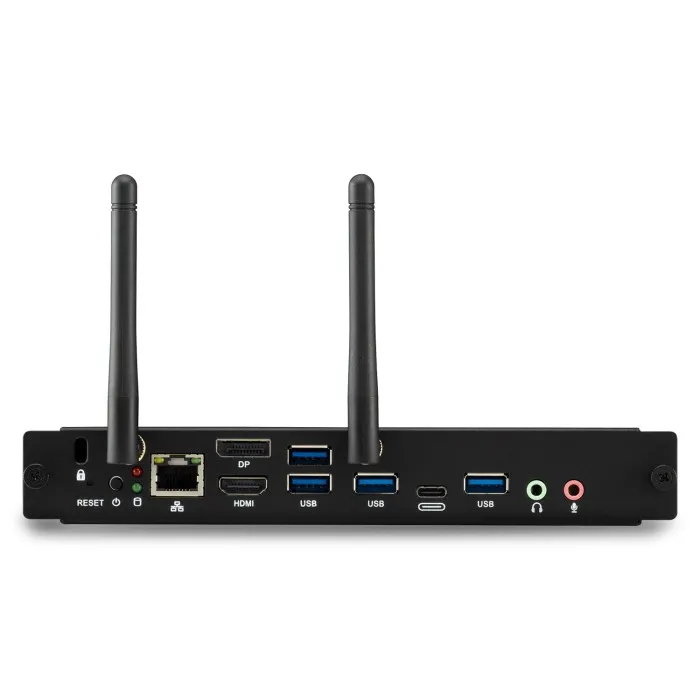

VPC37-W55-G1 - OPS Slot-in PC

Name: VPC37-W55-G1 - OPS Slot-in PC
SKU: VPC37-W55-G1
Price: 1799.99 USD

| Datasheet | Media

Add to Compare

Product Overview

The ViewSonic^® VPC37-W55-G1 Windows slot-in PC delivers a full Windows experience for users of ViewSonic ViewBoard^® interactive displays. This slot-in PC module easily plugs into compatible displays and supports up to 5K resolution. With a powerful Intel^® i7 processor, and fast SSD, the VPC37-W55-G1 provides fast computing power and advanced security protection needed for educational and corporate environments. Flexible connectivity options include HDMI, USB 3.0 and Type-C ports, as well as Giga LAN RJ45 and integrated Wi-Fi 6 connection.

Overview

Powerful Intel Processor

Equipped with an Intel^® i5 processor, this slot-in PC provides smooth and quick performance needed for serious computing.

a diagram showing comparisons between different screen resolutions

Stunning 5K Ultra HD Resolution

With support for resolutions up to 5K, this device enables you to enjoy stunning images on your ViewBoard interactive display.

SuperColor, Amazing Color Accuracy, Accurate Color, 6-Segment Color wheel

Ample Storage

The slot-in PC can store and play hours and hours of high-definition multimedia content thanks to its 512GB of storage SSD.

Faster WiFi

The latest WiFi 6 standard delivers incredibly fast WiFi performance with internet speeds of up to several gigabits per second.

multiple viewboard displays next to a slot in PC module

Versatile Compatibility

Based on an industry standardized interface - Open Pluggable Specification, this slot-in computing module is compatible with any OPS-compliant interactive or commercial display.

a teacher in front of a classroom of students pointing at a large display showing the solar system

ViewSonic^® Software Suite

A suite of ViewSonic software is preloaded to boost your productivity and collaboration.

an icon of a vpc inside of a depiction of a shield

Safe and Reliable

Equipped with a range of features such as password protection, two-step authentication, data encryption and more, this device ensures that privacy and security standards are met to keep user data safe.

Awards

Specifications

CPU Processor Type: Intel® Core™ i7-1260P
CPU Processor Speed: 2.1G Turbo boost 4.7G
Operating System: Windows® 11 Pro 64 bit
Media Player Type: Slot-in PC
Graphic Chipset: Integrated Intel® iris Xe Graphics
RAM: 16GB
Wifi: WiFi 6
Bluetooth: Bluetooth 5.1
Storage Capacity: 512GB
Storage Type: SSD
HDMI 2.0 Out: 1
DisplayPort Out: 1
Ethernet LAN (RJ45): 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
USB 3.0: 4
USB Type C: 1
Voltage: DC 12-19V/ 8A
Temperature: 23°F–104°F (-5C – 40Cº)
Non-Operating Temperature: -4°F to 140°F (-20C to 60C)
Humidity (non-condensing): 10-90%
Altitude: 0~5,000m above sea level
Physical (in.): 7.95 x 4.83 x 1.18
Packaging (in.): 10.51 x 7.56 x 2.83
Physical (mm): 202.0 x 122.6 x 30.0
Packaging (mm): 267.0 x 192.0 x 72.0
Net (lbs): 1.33
Gross (lbs): 2.14
Net (kg): 0.6
Gross (kg): 0.97
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Regulations: FCC, FCC ID, cTUVus, CA IC
Package Contents: VPC-A31-O1, Antenna x 2
Warranty: One-year limited warranty on parts and labor
