In stock

SKU

VG3456C

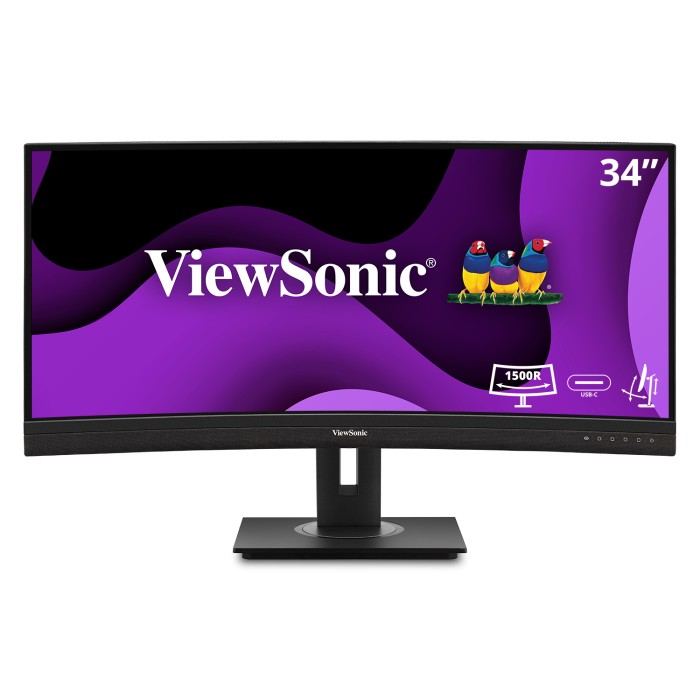

VG3456C - 34" UWQHD Ergonomic 21:9 Curved Docking Monitor with 100W USB C and RJ45

Single-cable USB-C connectivity for video, audio, data and up to 100W power delivery
Ultrawide curved screen design
Wide Quad HD resolution with 21:9 aspect ratio
vDisplayManager software improves productivity
Advanced ergonomic features

$549.99 USD

Downloads

Datasheet Media

Add to Compare

Comparison Sheet(PRG)

Skip to the beginning of the images gallery

Product Overview

Featuring an immersive ultra-wide 34” curved screen and single-cable USB-C connectivity, the ViewSonic^® VG3456C monitor is designed to boost productivity and streamline your workspace. With WQHD 3440 x 1440 resolution, the VG3456C delivers 2.4 times more pixels than standard Full HD monitors, giving you more detail for enhanced productivity. A 21:9 aspect ratio provides extra screen real estate so you can display more content. A 1500R curved screen creates a more immersive viewing experience by bringing the far edges of the monitor closer and within your natural field of view. Enjoy reliable network connectivity with the integrated Ethernet port while the latest USB Type-C connectivity provides up to 100W power delivery to your laptop. That’s not all, the integrated USB hub also provides single-cable simplicity for connecting and charging your peripherals and accessories.

Overview

simulations showing the clarity on a higher refresh lower response time monitor

Ditch the Dock

With USB-C single-cable connectivity, RJ45 wired Ethernet connection for secure and reliable internet, and a USB hub to connect your accessories directly into the monitor, there’s no need for expensive docks. USB-C provides video, audio, data, and up to 100W power delivery to connect and charge your laptop or device. One cable provides everything you need to connect and start working.

Immersive Curved Screen Design

A sleek, 1500R concave screen delivers a wide field of view that helps to reduce eye strain and provides a more immersive viewing experience.

Wide Quad HD Resolution with 21:9 Aspect Ratio

Ultra Wide Quad HD 3440 x 1440 resolution and a 21:9 aspect ratio offers amazingly sharp picture quality on an ultra-wide screen. A 21:9 aspect ratio offers you additional screen real estate in a single monitor.

Command and Control Made Easy

vDisplayManager software enhances productivity by putting the On-Screen Display (OSD) menu controls on your monitor’s screen. In addition, an integrated split screen function allows you to customize and divide your screen into multiple viewing windows.

A More Comfortable Workspace

With advanced ergonomic features including swivel, height adjust, and tilt, this monitor is designed to provide a greater range of adjustment for increased productivity and comfort. A cable management system is built into the stand and helps keep your desktop streamlined and organized.

Minimized Total Cost of Ownership

Designed for the busiest of office environments, this monitor helps to reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns, to user experience and screen performance, every feature of this monitor was carefully considered to not only meet your workspace demands, but to also reduce your TCO.

Environmentally Friendly Packaging

This monitor is shipped in eco-friendly, biodegradable, paper-based packaging that cuts down on recycling costs and delivers a reduced environmental footprint. An easy-open box streamlines unpacking for instant out-of-the-box monitor setup. Mono color printing is also used on the exterior of the packaging.

ENERGY STAR Certification

This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.

*Energy savings may vary based on actual usage and other factors.

EPEAT Certified

With EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.*

*Subject to ViewSonic's warranty and on-site service terms and conditions.

Awards

Specifications

Screen Size: 34
Viewable Area (in.): 34
Panel Type: MVA
Display Resolution: 3440 x 1440
Display Resolution: UWQHD (3440x1440)
Static Contrast Ratio: 3,000:1
Dynamic Contrast Ratio: 80,000,000:1
Light Source: LED
Brightness: 400 cd/m2
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 21:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30,000
Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25%
Curvature: 1500R
Refresh Rate: 100Hz
PC Resolution (max): 3440 x 1440
Mac® Resolution (max): 3440 x 1440
USB Type A: 4
USB Type B: 1
USB Type C: 98W x 1
3.5mm Audio Out: 1
Ethernet LAN (RJ45): 1
HDMI 2.0 In: 2
DisplayPort: 1
Internal Speakers: 5W (x2)
Eco Mode (Conserve): 40.4W
Eco Mode (optimized): 43.3W
Consumption (typical): 46.7W
Consumption (max): 176.7W
Voltage: AC 100-240V (universal), 50-60Hz
Stand-by: 0.3W
Power Supply: Internal
Cable Organization: No
Kensington Lock Slot: 1
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-90%
VESA Compatible: 100 x 100 mm
Frequency Horizontal: HDMI 2.0, DisplayPort, USB Type C: 15 ~ 155 KHz
Frequency Vertical: HDMI 2.0, DisplayPort, USB Type C: 50 ~ 100 Hz
Height Adjust: 110 mm / 4.3 in
Swivel: 120º
Tilt (Forward/Back): 5º / 40º
Net (lbs): 20.1
Net Without Stand (lbs): 14.8
Gross (lbs): 32.4
Net (kg): 9.1
Net Without Stand (kg): 6.7
Gross (kg): 14.7
Packaging (in.): 36.2 x 19.0 x 11.0
Physical (in.): 31.8 x 16.67~21.0 x 8.6
Physical Without Stand (in.): 31.8 x 15.3 x 4.6
Packaging (mm): 920.0 x 482.0 x 280.0
Physical (mm): 807.0 x 423.4~533.4 x 217.0
Physical Without Stand (mm): 807.0 x 388.0 x 116.0
Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, NOM, Mexico Energy
Package Contents: VG3456C Display, Power Cable, HDMI Cable, USB Type C cable, USB A/B Cable, Quick Start Guide
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
