LDS135-151 - 135" Display, 1920 x 1080 Resolution, 450-nit Brightness, 24/7
Product Overview
Ready-To-Use Kit

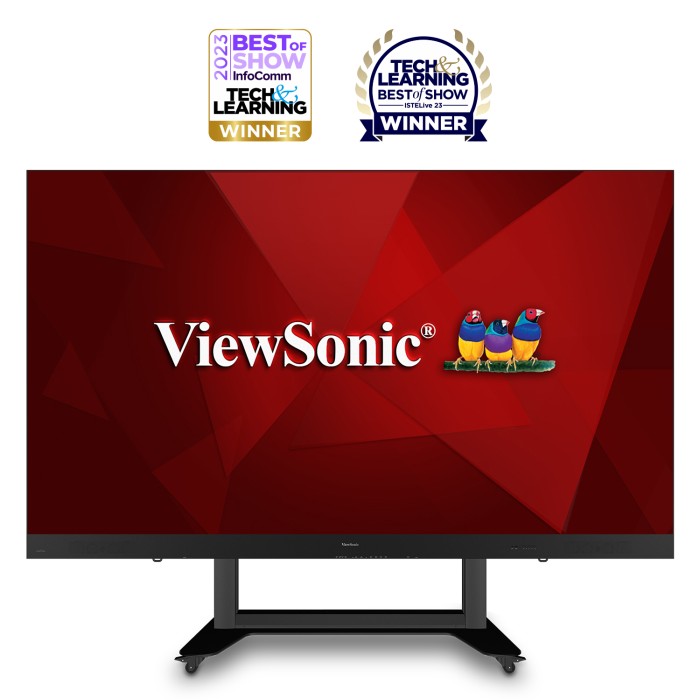

The included Direct View LED display comes with preassembled LED modules, cabinets, a system control box, mobile cart and flight case. It can be set up and ready to use within just a few minutes, saving time and effort as well as lowering the technical barrier for installers. The flight case provides convenient storage and ample protection for the display during transport.
Foldable Screen
A foldable screen design allows the display to be packed into its custom flight case, making it easy to set up and share between classrooms, conference rooms, auditoriums, and other areas around a school or business.
Motorized Height Adjustment
The mobile cart includes a motorized height adjustment feature that raises the display up to 25 inches with the simple press of a button. This added versatility provides better visibility whether the display is placed on a stage or in a conference room, and a variety of other scenarios.
Freedom of Movement
The mobile cart also includes 360° silent wheels that allow you to move the display freely, and quitely, whenever you need to. The wheels easily lock so that everything remains steady and in place.
Multiple Inputs on One Screen
An intuitive split-screen function makes video conferences and online collaborations more flexible and creative. The display also supports Picture-by-Picture (from up to 4 different inputs) or Picture-in-Picture (a screen within another screen) scenarios in real-time.*
*PBP and PIP require HDMI source input.
Wireless Content Sharing
The pre-installed ViewBoard Cast™ enables content to be streamed from mobile devices onto the display over wireless networks, whether one-to-one or many-to-one.
Simple, Easy, All-In-One Setup
From the LED tiles, to the AV hardware and software, power supplies and cables, this all-in-one solution includes everything you need in one box for streamlined installation.
- OS: Android 9.0
- GPU: Mult-core MaliG51 MP2
- CPU: MTK9669
- Memory: 4GB DDR4
- Storage: 64GB (56GB available)
- Media Player Type: Yes
- Internal Speakers: 20W (x2)
- PC Resolution (max): 1920x1080
- Mac® Resolution (max): 1920x1080
- HDMI 1.4 In: 2
- HDMI 2.0 In: 3
- HDMI 2.1 In: 1
- HDMI 2.0 Out: 2
- 3.5mm Audio Out: 1
- USB 2.0: 3 (Type A Input, and Power 5V/1.5A)
- USB Type C: 1 (Video input, and Power 5V/2A)
- RS232: 1
- Ethernet LAN (RJ45): 1
- IR in: 1
- Intel® OPS Slot In (80-pin): 1
- Voltage: 100-120V+/- 10%, 50/60Hz, 20A
- Consumption (max): 2000W
- Consumption (typical): 900W
- Stand-by: <0.5W
- On Screen Display: Yes
- Remote Control: Yes
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 20-80%
- Net (lbs): 564
- Gross (lbs): 965
- Net (kg): 253
- Gross (kg): 438
- Packaging (in.): 74.8 x 80.0 x 31.5
- Physical (in.): 70.9 x 76.7 x 30.3 (min.), 118.5 x 102.3 x 30.3 (max.)
- Packaging (mm): 1900.0 x 2032.0 x 800.0
- Physical (mm): 1800.0 x 1948.0 x 770.0 (min.), 3010.0 x 2598.0 x 770.0 (max.)
- Warranty: 3-year limited warranty on parts and labor, on-site service
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Package Contents: Power Cord, Remote Control, QSG, Maintenance Tool (LD-MK-001) x 1, LAN Cable (Cat 5A) x 1, IR Extender Cable x 1, Spart Modules (LED PCB x 7)
- Regulations: cTUVus, FCC, RoHS
- Display Type: Direct View LED
- Screen Size: 135
- Viewable Area (in.): 135
- LED Pitch Size (mm): 1.56
- LED Grayscale: 14 bits
- Backlight Life (Hours): 100,000
- Viewing Angles: 160º horizontal, 160º vertical
- Operation Rating: 24/7
- Display Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Light Source: Fine Pixel Pitch LED
- Brightness: 450 cd/m2
- Static Contrast Ratio: 6,000:1
- Refresh Rate: 4,440Hz
