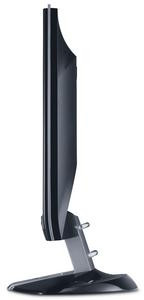

ViewSonic VX1935wm 19" WIDE SCREEN LCD WITH CLEARMOTIV™ 5MS BROADCAST QUALITY VIDEO

LCD

Typ:	19” Wide TN colour TFT active matrix WXGA LCD
Kontrastverhältnis:	700:1 (typ.)
Betrachtungswinkel:	130° horizontal, 120° vertical (at 10:1) 150° horizontal, 140° vertical (at 5:1)
Helligkeit:	300cd/m²
Anzeigefläche:	41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Optimale Auflösung:	1440 x 900@60Hz
Reaktionszeit:	5ms (off-on-off) (typ.)
Lichtquelle:	Long life, 40000 hrs. (min.)
Panel-Oberfläche:	Anti-glare (3H)
Pixelabstand:	0.285mm
Farbtiefe:	16.2M colours (6-bit+2-bit FRC)v
Pixeltakt:	136.5MHz

KOMPATIBILITäT

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ up to 1440 x 900 non-interlaced
ABMESSUNGEN

B x H x T: 450 x 434 x 210 (with stand)
450 x 341 x 76 (without stand)
545 x 515 x 162 (packaging)
ZERTIFIKATE

CE, CB, ISO13406-2 (pixel failure class II), GOST-R+Hygienic, MPR II,
SASO, Energy Star, ENERGY, WEEE, RoHS
LIEFERUMFANG

LCD Monitor, power cable, D-sub video cable, DVI cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
GARANTIE

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Lautsprecher: 2 x 1.5 watt integrated speakers
EINGANG

Synchronisierung: H/V separate (TTL), composite, sync on green

Digital: DVI-D (TMDS, 100 ohms)

Analog: RGB analogue (0.7 Vp-p, 75 ohm)

Frequenz: DVI-D (TMDS, 100 ohms)
ANSCHLüSSE

Analog: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Audioeingang: 3.5mm stereo audio line-in

Stromversorgung: 3-pin AC plug (CEE22)
STROMVERSORGUNG

Spannung: AC 100–240V, 50/60Hz (auto switch), internal power supply

Verbrauch: 35 watt (typ.), <1 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio
(volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number,
serial number, website), manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution notice, OSD position, OSD timeout,
OSD background), OSD/power lock, memory recall

GEWICHT

Netto: 5.6kg (with stand)
4.7kg (without stand)

Brutto: 5.6kg (with stand)
4.7kg (without stand)
ENERGIEVERWALTUNG

Meets MPR II and Energy Star® standards
SICHERHEIT

Kensington® security port
WANDHALTERUNG

VESA FDMI 100mm x 100mm
ERGONOMIE

Neigung: 35 watt (typ.), <1 watt in power save mode
BETRIEBSBEDINGUNGEN

Feuchtigkeit: 20%–85% (non-condensation)

Temperatur: 0°C–40°C

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ up to 1440 x 900 non-interlaced

Synchronisierung:	H/V separate (TTL), composite, sync on green
Digital:	DVI-D (TMDS, 100 ohms)
Analog:	RGB analogue (0.7 Vp-p, 75 ohm)
Frequenz:	DVI-D (TMDS, 100 ohms)

Analog:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Audioeingang:	3.5mm stereo audio line-in
Stromversorgung:	3-pin AC plug (CEE22)

Spannung:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Verbrauch:	35 watt (typ.), <1 watt in power save mode

Netto:	5.6kg (with stand) 4.7kg (without stand)
Brutto:	5.6kg (with stand) 4.7kg (without stand)

Feuchtigkeit:	20%–85% (non-condensation)
Temperatur:	0°C–40°C
