LCD Display

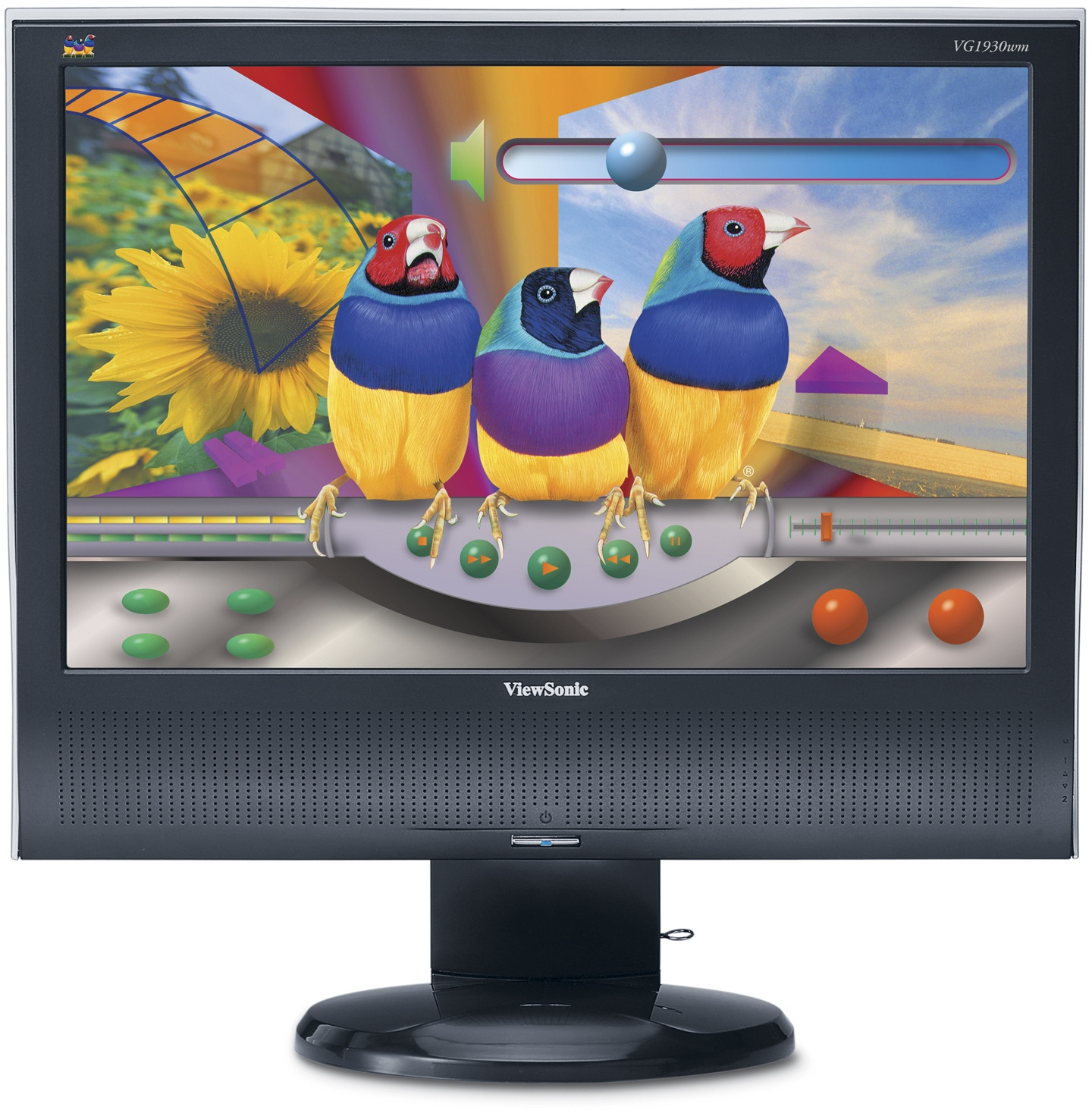

VG1930wm
Wichtigste Eigenschaften
Produktübersicht
ViewSonic’s 19” VG1930wm combines WIDESCREEN and multimedia performance with ergonomic flexibility. Improve productivity and save time with widescreen versatility. Display multiple pages, larger spreadsheets and more on a single screen without the need to swap. HEIGHT ADJUSTMENT, tilt and 360° swivel features allow the user to set the ergonomic position of the monitor to generate the best possible viewing position. Enjoy high brightness and contrast levels for rich, precise, detailed images and razor sharp text, whilst DIGITAL AND ANALOGUE inputs ensure maximum connectivity options. Built-in stereo-speakers deliver high quality audio performance. The elegantly designed VG1930wm widescreen monitor is the ideal business LCD.
Besuchen Sie uns
- www.viewsonic.com
-
COLORS
Black -
LCD
Typ: 19” Wide TN colour TFT active matrix WXGA+ LCD Kontrastverhältnis: 700:1 (typ.) Betrachtungswinkel: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Helligkeit: 300cd/m² (typ.) Anzeigefläche: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal Optimale Auflösung: 1440 x 900@60Hz Reaktionszeit: 5ms (off-on-off) (typ.) Lichtquelle: Long life, 40000 hrs. (typ.) Panel-Oberfläche: Anti-glare Pixelabstand: 0.285mm Pixeltakt: 135MHz -
KOMPATIBILITäT
PC: VGA up to 1440 x 900 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 -
ABMESSUNGEN
Physisch mit Fuß: 460 x 434–514 x 230 Physisch ohne Fuß: 460 x 352 x 61 Verpackung (B x H x T): 560 x 525 x 282 -
ZERTIFIKATE
TCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CB, CE, GOST-R, UL, cUL, FCC-B, ICES-003, SASO, ENERGY STAR®, C-Tick, BSMI, PSB, Argentina TUV-S/IRAM/UL-AR S Mark ,MPR II, VCCI, CCC, WEEE, RoHS -
LIEFERUMFANG
LCD display, VGA cable, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
AUDIO
Lautsprecher: 2 x 1.5 watt integrated speakers Verstärker: 1.5-watt @ THD < 8% -
ANSCHLüSSE
Analog: 15-pin mini D-sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) Stromversorgung: 3-pin AC plug (CEE22) Audioeingang: 3.5mm stereo audio line-in -
STROMVERSORGUNG
Spannung: AC 100–240V, 50/60Hz (auto switch), internal power supply Verbrauch: 35 watt (typ.), <1 watt in power save mode -
BEDIENUNGSELEMENTE
Grundausstattung: Power, menu [1], up, down, select [2], mute, volume up/down OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), View Match® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall -
BETRIEBSBEDINGUNGEN
Temperatur: 0°C–40°C Feuchtigkeit: 10%–90% (non-condensing) -
GEWICHT
Netto mit Fuß: 5.4kg Brutto: 6.9kg -
VIDEOEINGANG
Frequenz: Fh: 24~82kHz, Fv: 50~75Hz Synchronisierung: H/V separated (TTL) (screen-on-screen) Analog: RGB analogue (0.7 Vp-p, 75 ohm) Digital: DVI-D (TMDS, 100 ohm) -
ENERGIEVERWALTUNG
Meets TCO’03 and ENERGY STAR® standards -
SICHERHEIT
Kensington® security port -
WANDHALTERUNG
VESA FDMI 75mm x 75mm -
ERGONOMIE
Neigung: Down 5°, Up 20° Schwenken: 360° swivel base Höhenverstellung: 0~80mm
