LCD Display

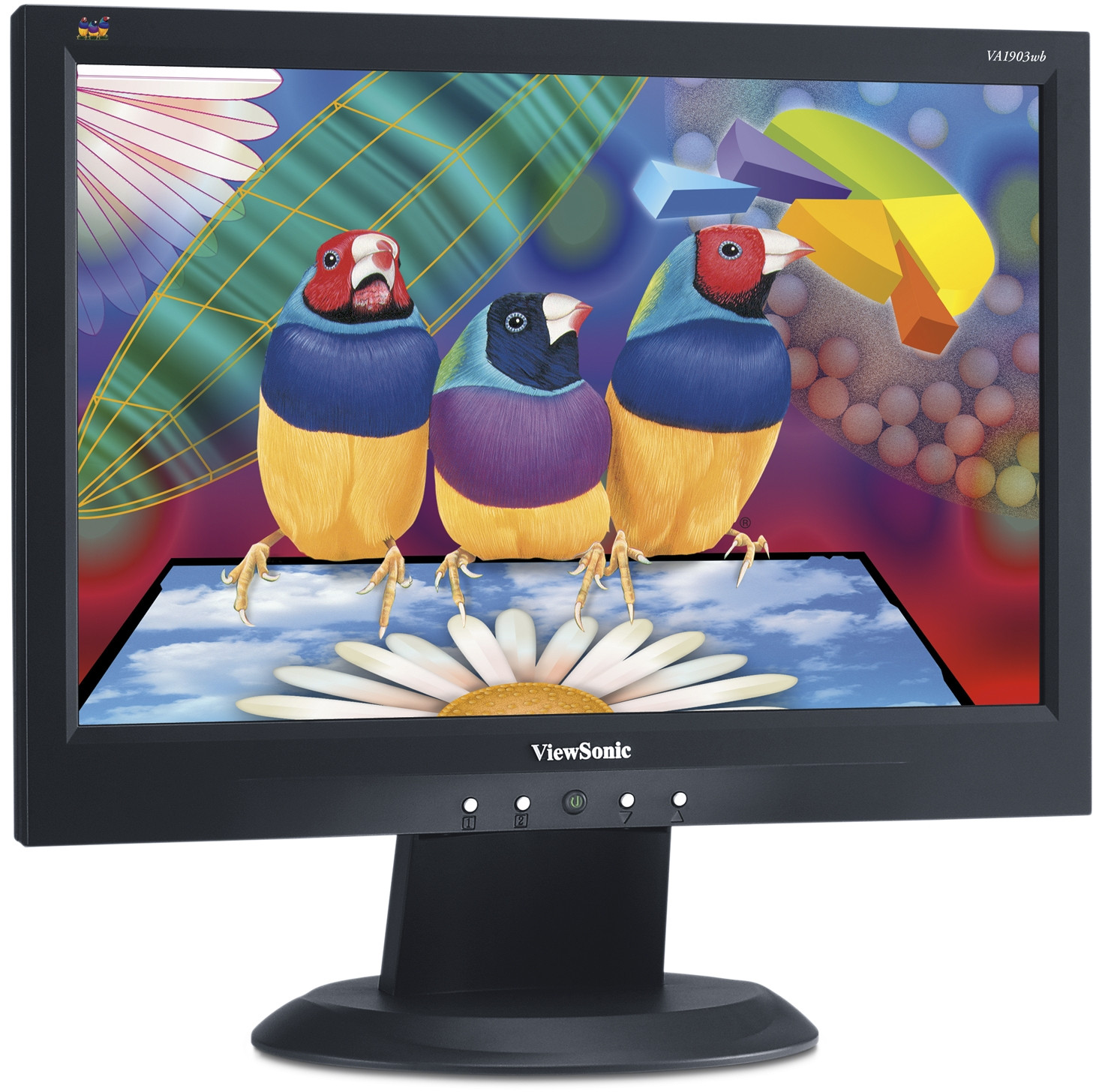

VA1903wb
Wichtigste Eigenschaften
Produktübersicht
ViewSonic’s VA1903wb LCD brings the enjoyment of panoramic widescreen to the masses. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS or side-by-side full page layouts. Thanks to a SUPER-FAST 5MS response time together with 300cd/m² brightness levels and high 700:1 contrast, you get to enjoy superior blur-free clarity, amazing colour and stunning brightness. The VA1903wb delivers on ViewSonic’s tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It’s the easy choice for gamers, home/small office users and corporate professionals.
Besuchen Sie uns
- www.viewsonic.com
-
COLORS
Black -
LCD
Typ: 19” Wide TN colour TFT active matrix WXGA+ LCD Kontrastverhältnis: 700:1 (typ.) Betrachtungswinkel: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Helligkeit: 300 cd/m² Anzeigefläche: 41.2cm horizontal x 25.4cm vertical, 48.3cm diagonal Optimale Auflösung: 1440 x 900@60Hz Reaktionszeit: 5ms (off-on-off) (typ.) Lichtquelle: Long life, 50000 (min.) Bildformat: 16:9 Panel-Oberfläche: Anti-glare (3H) Pixelabstand: 0.285mm Farbtiefe: 16.7M colours supported (6-bit + 2-bit FRC) Pixeltakt: 140MHz -
KOMPATIBILITäT
PC: VGA up to 1440 x 900 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced -
ABMESSUNGEN
Physisch mit Fuß: 448 x 404 x 210 Physisch ohne Fuß: 448 x 318 x 63 Verpackung (B x H x T): 520 x 473 x 158 -
ZERTIFIKATE
TCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R, Hygienic (20 copies), UL, cUL, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, Energy Star, C-Tick, KTL/MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, WEEE, RoHS -
LIEFERUMFANG
LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
ANSCHLüSSE
Analog: 15-pin mini D-sub (detachable cable) Stromversorgung: 3-pin AC plug (CEE22) -
STROMVERSORGUNG
Spannung: AC 100 – 240V, 50/60Hz (auto switch), internal power supply Verbrauch: 33 watt (typ.), <1 watt in power save mode -
BEDIENUNGSELEMENTE
Grundausstattung: Power, menu [1], up, down, select [2] OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall -
BETRIEBSBEDINGUNGEN
Temperatur: 0°C – 40°C Feuchtigkeit: 10% – 90% (non-condensation) -
GEWICHT
Netto mit Fuß: 4.4kg Brutto: 5.6kg -
VIDEOEINGANG
Frequenz: Fh: 24–82kHz, Fv: 50–75 Hz Synchronisierung: H/V separated (TTL) Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm) -
ENERGIEVERWALTUNG
TCO’03 and Energy Star standards -
SICHERHEIT
Kensington security port -
WANDHALTERUNG
VESA FDMI 100mm x 100mm -
ERGONOMIE
Neigung: Down 5°, Up 20°
