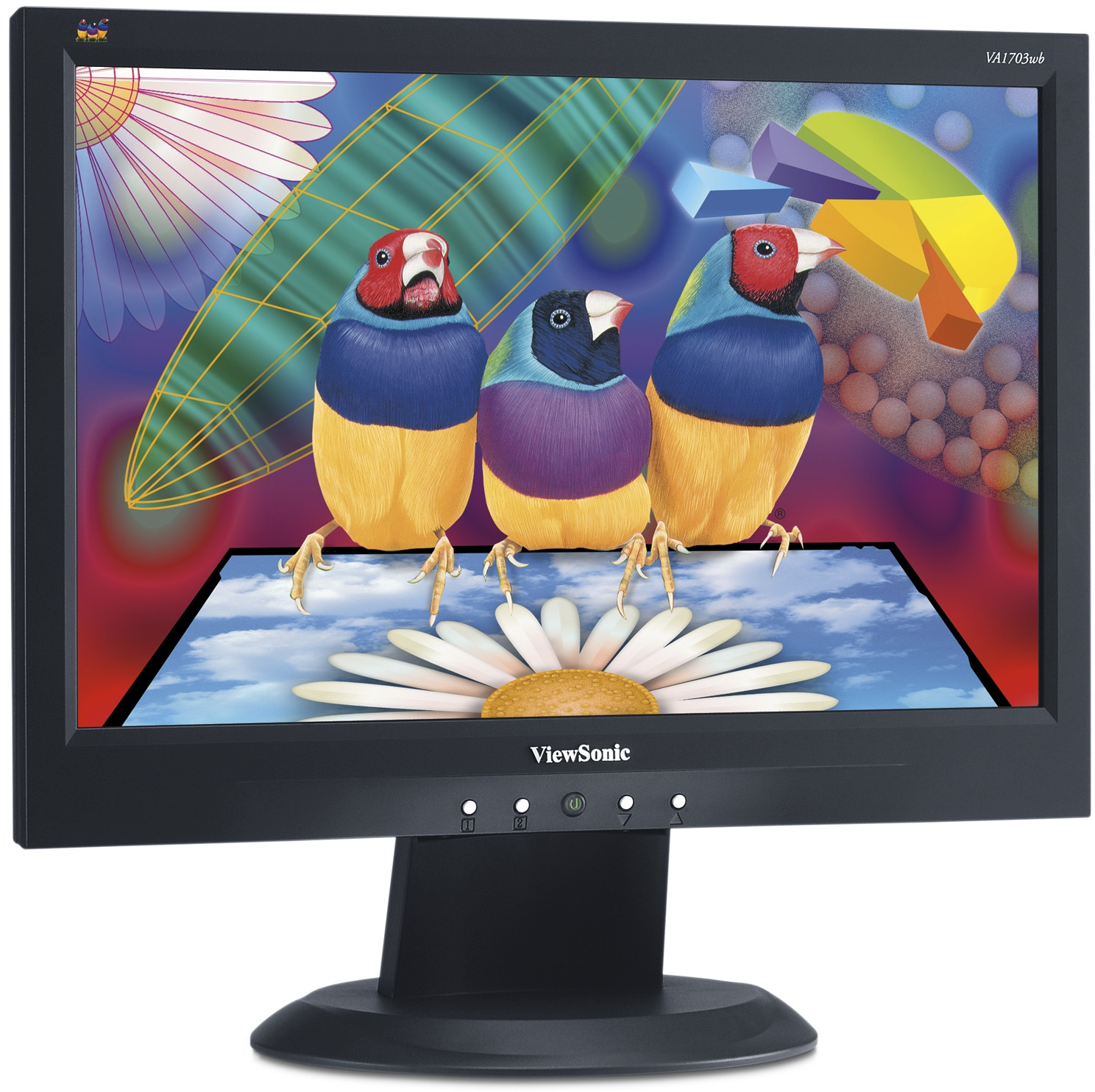

ViewSonic VA1703wb 43cm / 17" WIDESCREEN LCD MONITOR VA SERIES WITH 8MS VIDEO RESPONSE TIME

Wichtigste Eigenschaften

Produktübersicht

ViewSonic's 43cm / 17" VA1703wb LCD brings panoramic widescreen to everyone. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS, side-by-side full-page layouts, and immersive gaming that virtually surrounds the user. With ClearMotiv® video response, you get to enjoy extreme clarity, amazing colour and stunning brightness.The VA1703wb delivers on ViewSonic's tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It's the easy choice for gamers, home/small office users and corporate professionals.

Besuchen Sie uns

www.viewsonic.com

COLORS

Black

LCD

Typ:	17” Wide TN colour TFT active matrix WXGA+ LCD
Kontrastverhältnis:	500:1 (typ.)
Betrachtungswinkel:	150° horizontal, 130° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Helligkeit:	250 cd/m² (typ.)
Anzeigefläche:	36.7cm horizontal x 23.0cm vertical, 43.2cm diagonal
Optimale Auflösung:	1440 x 900@60Hz
Reaktionszeit:	8ms (off-on-off) (typ.)
Lichtquelle:	Long life, 30000 (min.)
Panel-Oberfläche:	Anti-glare (3H)
Pixelabstand:	0.255mm
Farbtiefe:	262k colours supported (6-bit)
Pixeltakt:	135MHz

KOMPATIBILITäT

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
ABMESSUNGEN

Physisch mit Fuß: 407 x 375 x 210

Physisch ohne Fuß: 407 x 293 x 63

Verpackung (B x H x T): 456 x 420 x 156

ZERTIFIKATE

GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R+Hygienic (3 copies), UL, cUL, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, MIC, BSMI, PSB, MPR II, VCCI, CCC, WEEE, RoHS

LIEFERUMFANG

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
ANSCHLüSSE

Analog: 15-pin mini D-sub (detachable cable)

Stromversorgung: 3-pin AC plug (CEE22)
STROMVERSORGUNG

Spannung: AC 100–240V, 50/60Hz (auto switch), internal power supply

Verbrauch: 25 watt (typ.), <1 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

BETRIEBSBEDINGUNGEN

Temperatur: 0°C – 40°C

Feuchtigkeit: 10% – 80% (non-condensation)
GEWICHT

Netto mit Fuß: 3.2kg

Netto ohne Fuß: 2.9kg

Brutto: 4.0kg
VIDEOEINGANG

Frequenz: Fh: 24–82kHz, Fv: 50–75 Hz

Synchronisierung: H/V separated (TTL)

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
ENERGIEVERWALTUNG

Meets MPR II and ENERGY STAR standards
SICHERHEIT

Kensington security port
WANDHALTERUNG

VESA FDMI 75mm x 75mm
ERGONOMIE

Neigung: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced

Physisch mit Fuß:	407 x 375 x 210
Physisch ohne Fuß:	407 x 293 x 63
Verpackung (B x H x T):	456 x 420 x 156

Analog:	15-pin mini D-sub (detachable cable)
Stromversorgung:	3-pin AC plug (CEE22)

Spannung:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Verbrauch:	25 watt (typ.), <1 watt in power save mode

Temperatur:	0°C – 40°C
Feuchtigkeit:	10% – 80% (non-condensation)

Frequenz:	Fh: 24–82kHz, Fv: 50–75 Hz
Synchronisierung:	H/V separated (TTL)
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Netto mit Fuß:	3.2kg
Netto ohne Fuß:	2.9kg
Brutto:	4.0kg
