Klíčové Vlastnosti

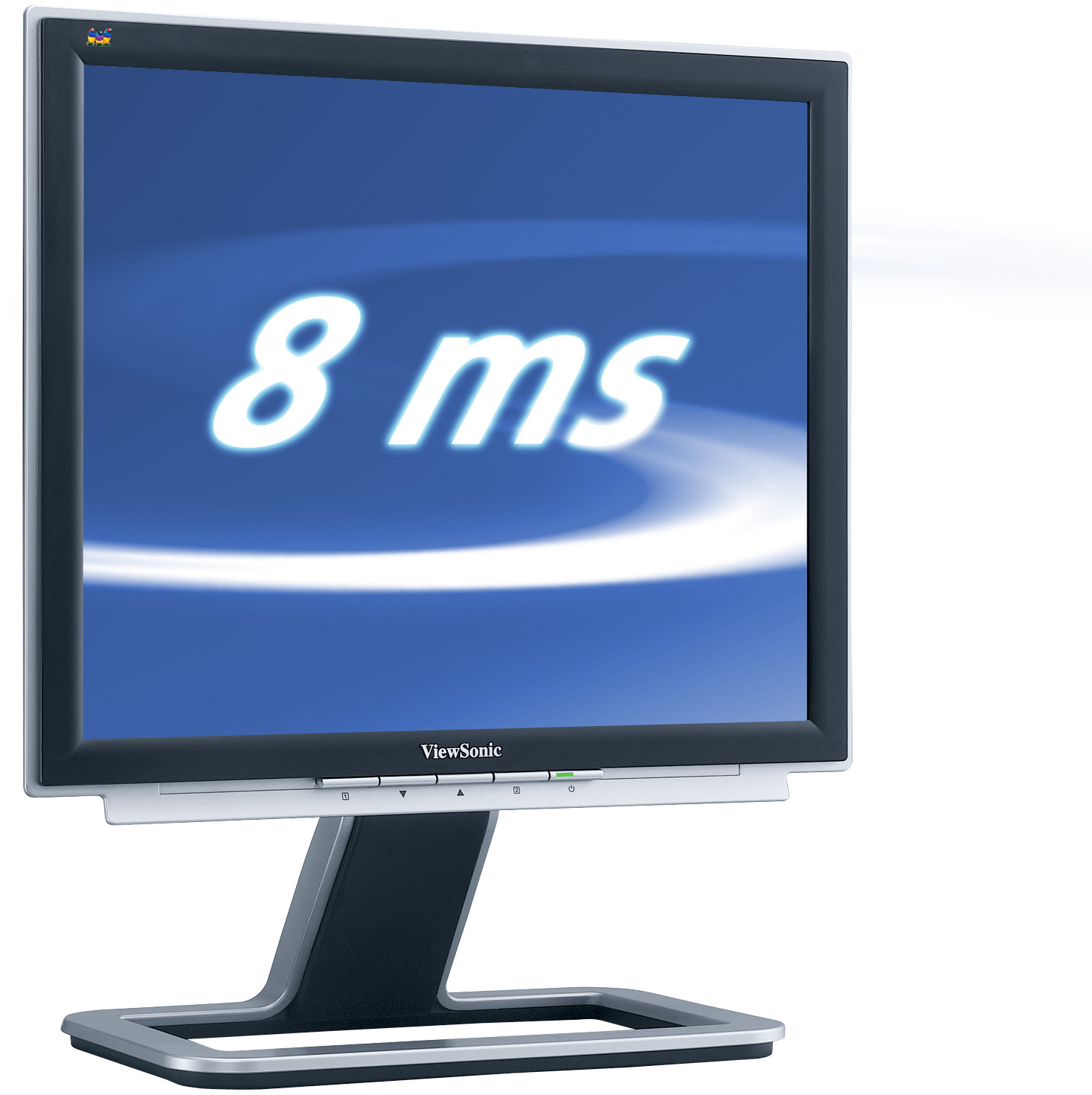

VX724
Produkt Popis
Navštivte nás
  • www.viewsonic.com
  • LCD
    Typ: 43cm / 17" TN-Colour TFT Active Matrix SXGA LCD
    Kontrastní poměr: 135MHz
    Zobrazovací úhly: 140° horizontal, 130° vertical @ 10:1
    160° horizontal, 160° vertical @ 5:1
    Jas: 300cd/m² (typ.)
    Display Area: 338mm horizontal x 270mm vertical; 43.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Doba odezvy: 3ms (grey-to-grey); 5.4ms (on-off-on) (typ.)
    Světelný zdroj: Long life, 40,000hrs. (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0,264mm
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Pixel Clock: 135MHz
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 (@ max. 75Hz non-interlaced)
    Mac®: Power Mac™ G3/G4/G5 1280 x 1024 (@ max. 75Hz)
  • DIMENSIONS
    W x H x D mm: 388 x 438 x 176 (with stand)
    388 x 332 x 62 (without stand)
  • OBSAH BALENÍ
    LCD display, power cable, 15-pin VGA video cable, DVI cable,
    Quick Start Guide, ViewSonic Wizard CD
  • WARRANTY
    Please see:
    www.viewsoniceurope.com/UK/Support/warranty.htm
  • INPUT
    Sync: H/V separated (TTL), composite, sync-on-green
    Frequency: Fh: 30-82kHz, Fv: 50-75Hz
    Video: RGB analogue (75 ohms, 0.7 Vp-p); DVI-D (TMDS, 100 ohms)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Výkon: 3-pin AC plug, (CEE22)
  • POWER
    Napětí: AC 100–240V, 50–60Hz (auto switch), internal power supply
    Spotřeba: < 32W (typ); ≤ 1 watt in power save mode
  • CONTROLS
    Physical: Down 5°, Up 20°
    Main Menu: Auto image adjust, brightness, contrast, input select [analogue,
    digital], ViewMatch® colour adjust [sRGB, 9300K, 6500K-default,
    5400K, user colour - RGB], information [resolution, H. frequency,
    V. frequency, pixel clock, model number, serial number], manual
    image adjust [H. size, H./V. position, fine tune, sharpness], setup
    menu [language (English, French, German, Italian, Spanish, Finnish,
    Japanese, Traditional Chinese, Simplified Chinese), resolution
    notice, OSD position, OSD timeout, OSD background], memory
    recall, OSD lock, power lock
  • WEIGHT
    Čistá hmotnost: 5.0kg (with stand)
  • POWER MANAGEMENT
    Meets TCO’99, Energy and ENERGY STAR standards
  • ERGONOMICS
    Naklápění: Down 5°, Up 20°
  • OPERATING CONDITIONS
    Vlhkost: 10% to 90% (non-condensation)
    Teplota: 0°C to 40°C
