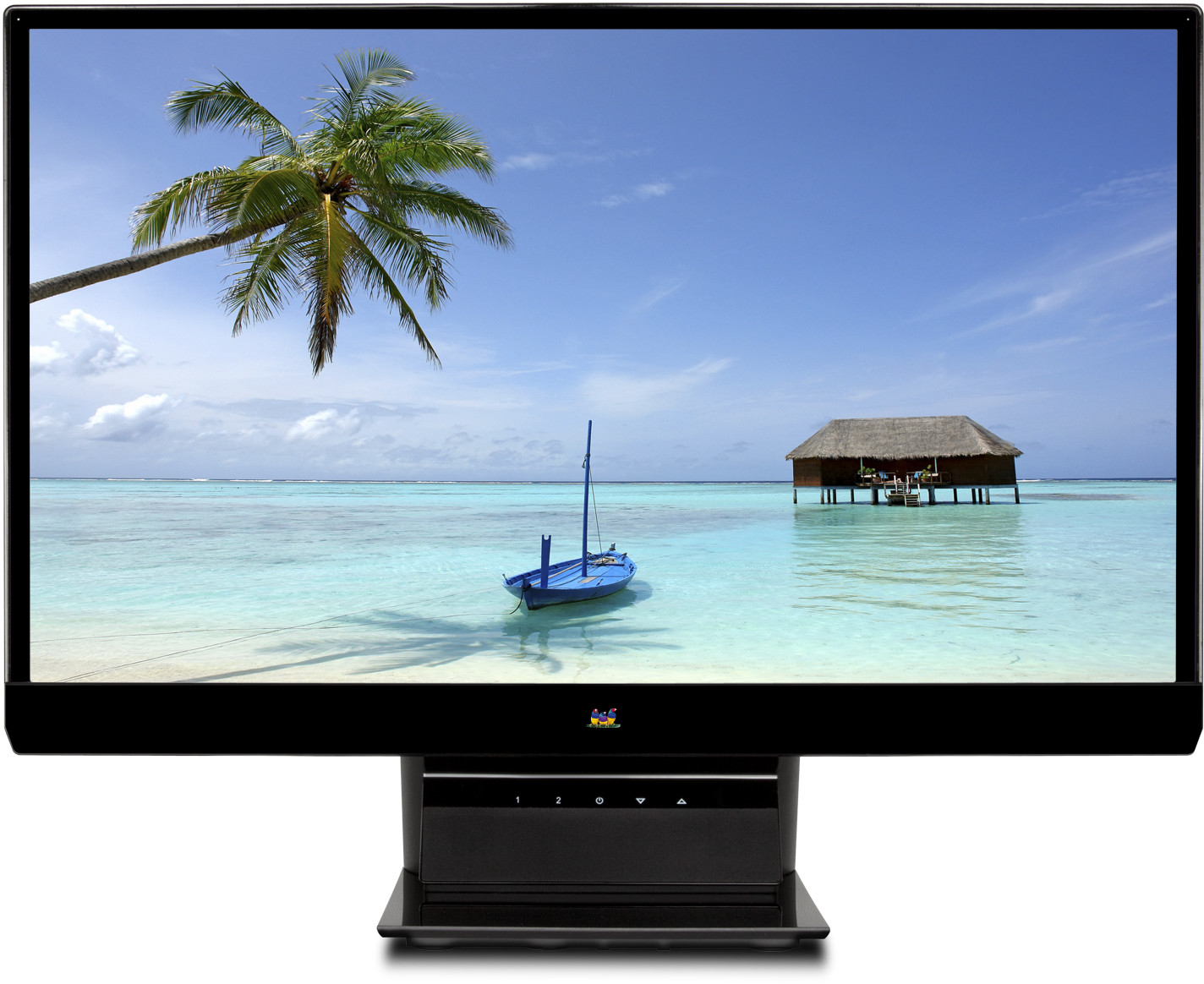

ViewSonic VX2270Smh-LED Widescreen Full HD 1080p With SuperClear™ IPS

Klíčové Vlastnosti

Produkt Popis

The ViewSonic® VX2270Smh-LED features an LEDbacklit 22" (21.5"/54.6 viewable) frameless designwidescreen monitor with up to 40%* energy savingscompared to a regular 22"/55.9cm monitor. Theenvironmentally-friendly mercury-free VX2270Smh-LED offers Full HD 1920x1080 resolution, HDMI®and DVI with HDCP and VGA inputs, external powersupply, SRS Premium Sound®, and 30,000,000:1 MEGADynamic Contrast Ratio. A stylish glossy ID and thinprofile combine to make it the centerpiece of your homeor office. The SuperClear™ IPS panel with wide viewingangles and ultra high contrast ratio deliver extraordinaryvisual clarity, making VX2270Smh-LED an excellentchoice for entertainment and gaming.

Navštivte nás

www.viewsonic.com

LCD

Typ:	21.5"/54.6 Wide Color TFT Active Matrix IPS LED
Kontrastní poměr:	1000:1 (typ.)
Zobrazovací úhly:	178º horizontal, 178º vertical
Display Area:	18.7"/ 47.5cm horizontal x 10.5"/ 26.7cm vertical; 21.5"/54.6cm diagonal
Optimum Resolution:	1920x1080
Doba odezvy:	7ms (GTG)
Panel Surface:	Anti-glare, hard-coating (3H)
Jas:	250 cd/m² (typ.)
Poměr dynamického kontrastu:	30,000,000:1
Backlight:	White-light LED
Životnost podsvícení:	30,000 hours (min.)

COMPATIBILITY

PC: PC compatibles (from VGA up to 1920x1080 non-interlaced)

Mac®: Up to 1920x1080
DIMENSIONS

Fyzicky (VxŠxH): 499.5 x 392 x 179.5 mm / 19.7 x 15.4 x 7.1 in.

Packaging: 556 x 460 x 179 mm / 21.9 x 18.1 x 7.1 in.
AUDIO

Speakers: 1.5-watt (x2)
CONNECTOR

Digital: Digital HDMI, DVI-D (with HDCP)

Audio Out: 3.5mm jack (blue)

Výkon: External power adapter

Audio Input: 3.5mm jack (green)

Analog: 15-pin mini D-sub (VGA)
POWER

Napětí: AC 100–240V (universal), 50 / 60Hz

Spotřeba: 26W (typ)

Optimize: 22W (typ)

Conserve: 19W (typ)

CONTROLS

Front Panel:

Power, 1, 2, up, down

OSD Setting:

Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB,
DVI-D, HDMI), Color Adjust (sRGB, Bluish, Cool, Native,
Warm, User Color [R,G,B]), Audio Adjust (volume, mute,
audio input), Information, Manual Image Adjust (H/V Position,
Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast,
Response Time, Aspect Ratio, Overscan, ECO-mode), Setup
Menu (Language, Resolution Notice, OSD Position, OSD
Timeout, OSD Background, Auto Power Off, Sleep, Power
Indicator), Memory Recall

OPERATING CONDITIONS

Teplota: 32–104º F (0–40º C)

Vlhkost: 20–90% (non-condensing)
VIDEO INPUT

Frequency: Fh: 24~83kHz, Fv: 50~76Hz

Sync: Separate Sync

Analogue: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Digital: HDMI / DVI-D (TMDS, 100 ohms)
ERGONOMICS

Naklápění: Forward 5º, Back 20º
WEIGHT

Hrubý: 5.7 kg / 12.6 lb.

Čistá hmotnost: 3.6 kg / 7.9 lb.

PC:	PC compatibles (from VGA up to 1920x1080 non-interlaced)
Mac®:	Up to 1920x1080

Fyzicky (VxŠxH):	499.5 x 392 x 179.5 mm / 19.7 x 15.4 x 7.1 in.
Packaging:	556 x 460 x 179 mm / 21.9 x 18.1 x 7.1 in.

Digital:	Digital HDMI, DVI-D (with HDCP)
Audio Out:	3.5mm jack (blue)
Výkon:	External power adapter
Audio Input:	3.5mm jack (green)
Analog:	15-pin mini D-sub (VGA)

Napětí:	AC 100–240V (universal), 50 / 60Hz
Spotřeba:	26W (typ)
Optimize:	22W (typ)
Conserve:	19W (typ)

Teplota:	32–104º F (0–40º C)
Vlhkost:	20–90% (non-condensing)

Frequency:	Fh: 24~83kHz, Fv: 50~76Hz
Sync:	Separate Sync
Analogue:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Digital:	HDMI / DVI-D (TMDS, 100 ohms)

Hrubý:	5.7 kg / 12.6 lb.
Čistá hmotnost:	3.6 kg / 7.9 lb.
