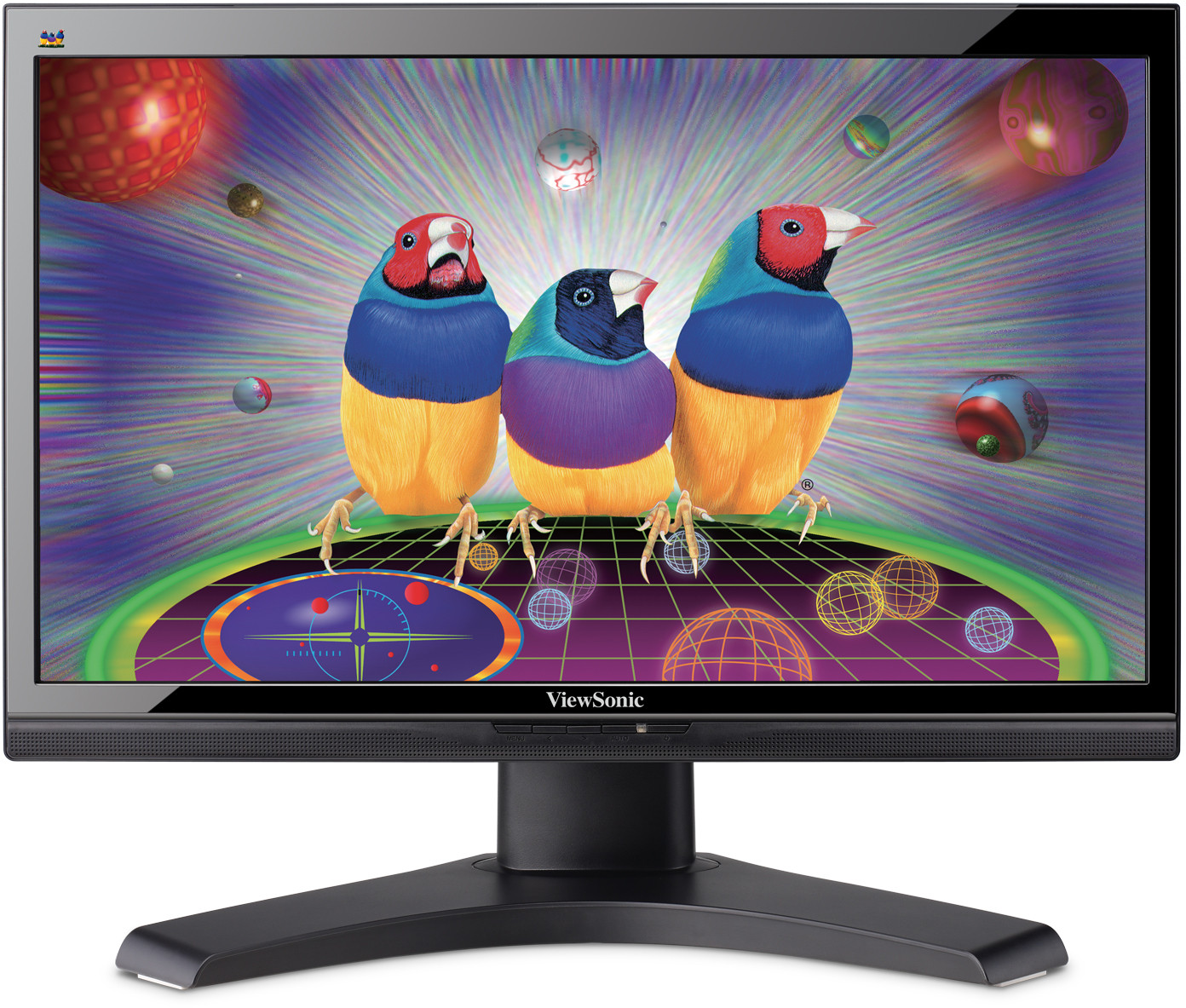

ViewSonic VX2258wm 55CM/21.5” Touch Screen LCD Monitor

LCD

Kontrastní poměr:	1000:1
Zobrazovací úhly:	170° (H), 160° (V)
Optimum Resolution:	1920 x 1080
Doba odezvy:	5ms (typical)
Světelný zdroj:	50,000 hrs (minimum)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.3mm (H)×0.3mm (V)
Colour Support:	16.7 M
Size:	55CM/21.5” wide Colour TFT Active Matrix LCD with 16:9 aspect ratio
Jas:	200 cd/m²
Poměr dynamického kontrastu:	100,000:1

COMPATIBILITY

PC: VGA up to 1920×1080 Non Interlaced

Mac®: Power Mac, up to 1920×1080
DIMENSIONS

Physical With Stand: 513×419×263 (mm), 20.1×16.4×10.5 (in)
INPUT

Sync: Separate Sync / Composite Sync / SOG

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–83kHz / 50–76Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Digital: 1×DVI-D

Audio Out: Audio Out - 3.5 mm jack

Výkon: Built-in power Adapter, 3-Pin plug

USB: For Touch connection
POWER

Napětí: AC 100-240V (Universal); 50/60Hz(Switch)

Spotřeba: 24 W (typical) / 28 W (typical) with audio

Save Mode (W): ≦1W

CONTROLS

Basic:	[1], [2], Power, Down[▼], Up[▲]
OSD:	Volume, mute, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B], Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Display Mode, ECO Mode, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Memory recall

VESA MOUNT COMPLIANT

100mm × 100mm
ERGONOMICS

Naklápění: 20° ~ -3°

Otočný: 60°
AUDIO

Speakers: 1Wx2
WEIGHT

Čistá hmotnost: 6.2 kg / 13.6 lbs
OPERATING CONDITIONS

Vlhkost: 20 - 90 (%)

Teplota: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1920×1080 Non Interlaced
Mac®:	Power Mac, up to 1920×1080

Sync:	Separate Sync / Composite Sync / SOG
Analogue:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency:	24–83kHz / 50–76Hz

Analogue:	1×15 pin mini D-sub
Digital:	1×DVI-D
Audio Out:	Audio Out - 3.5 mm jack
Výkon:	Built-in power Adapter, 3-Pin plug
USB:	For Touch connection

Napětí:	AC 100-240V (Universal); 50/60Hz(Switch)
Spotřeba:	24 W (typical) / 28 W (typical) with audio
Save Mode (W):	≦1W

Naklápění:	20° ~ -3°
Otočný:	60°

Vlhkost:	20 - 90 (%)
Teplota:	0 - 40 (°C) / 32 - 104 (°F)
