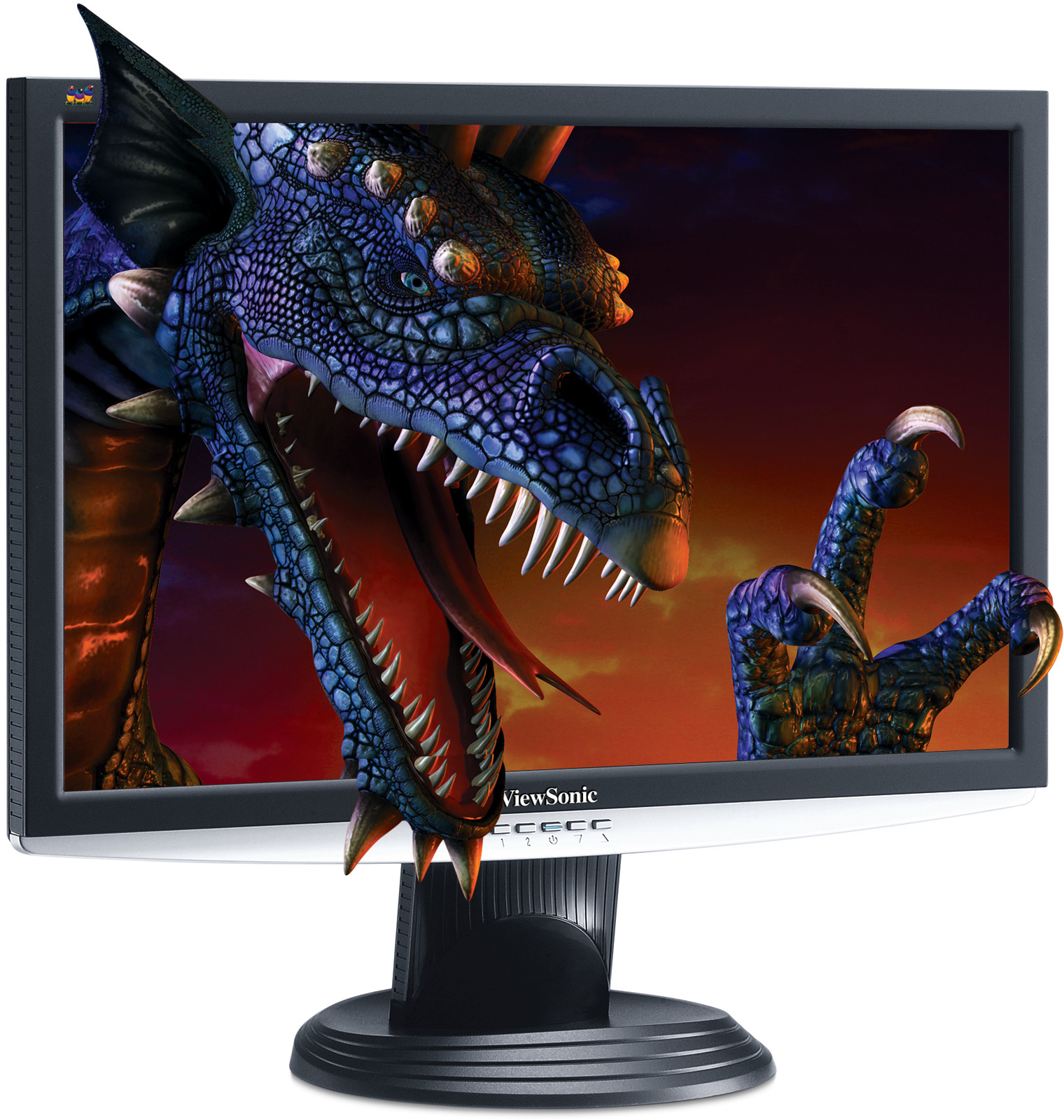

VX2240w
Produkt Popis
Take it to the next level with ViewSonic’s 56 cm / 22" VX2240w ultimate widescreen gaming LCD. Supercharge your gaming and entertainment experience with its ultra-fast 2ms video response time and large 16:10 native aspect ratio. Enjoy graphic-intensive applications in dramatic detail. Advanced Amplified Impulse™ technology and a stunning 1680 x 1050 pixels of resolution provide HD broadcast-quality for intensive games, movies and graphics.OptiSync analogue and digital inputs with HDCP offer superior video signal quality and allow you to dock multiple components and HD sources. The OSD lock function safeguards you against accidental changes to your optimal screen settings.lA built-in Kensington security port provides an additional deterrent against theft.The advanced technology and design of the VX2240w make it the perfect complement for your desktop.
Navštivte nás
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Typ: 56 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD
    Kontrastní poměr: 1000:1 (typ.), 4000:1 DCR (typ.)
    Zobrazovací úhly: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Jas: 300cd/m²
    Display Area: 46.4cm horizontal x 29cm vertical, 55.9cm diagonal
    Optimum Resolution: 1680 x 1050@60Hz
    Doba odezvy: 2ms (grey-to-grey), 5ms (off-on-off) (typ.)
    Světelný zdroj: Long life, 40000 hrs. (typ.)
    Panel Surface: Anti-glare (3H)
    Colour Support: 16.7M colours supported (6-bit+2-bit HI FRC)
    Pixel Clock: 165MHz
  • COMPATIBILITY
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
  • DIMENSIONS
    Physical With Stand: 510 x 432 x 225
    Physical Without Stand: 510 x 355 x 61
    W x H x D mm: 564 x 481 x 128
  • OBSAH BALENÍ
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick
    Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
    (multi-language) (multi-language)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Výkon: 3-pin AC plug (CEE22)
  • POWER
    Napětí: AC 100–240V, 50/60Hz (auto switch), internal power supply
    Spotřeba: 38 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select 2]
    OSD: Auto image adjust,contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial umber), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD
    background), auto white balance, OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Teplota: 0°C–40°C
    Vlhkost: 10%–90% (non-condensation)
  • WEIGHT
    Net With Stand: 5.0kg
    Hrubý: 6.6kg
  • VIDEO INPUT
    Frequency: Fh: 24~82kHz, Fv: 50~75Hz
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
  • POWER MANAGEMENT
    TCO’03 and ENERGY STAR standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA® FDMI 100mm x 100mm
  • ERGONOMICS
    Naklápění: Down 5°, Up 20°
