Klíčové Vlastnosti

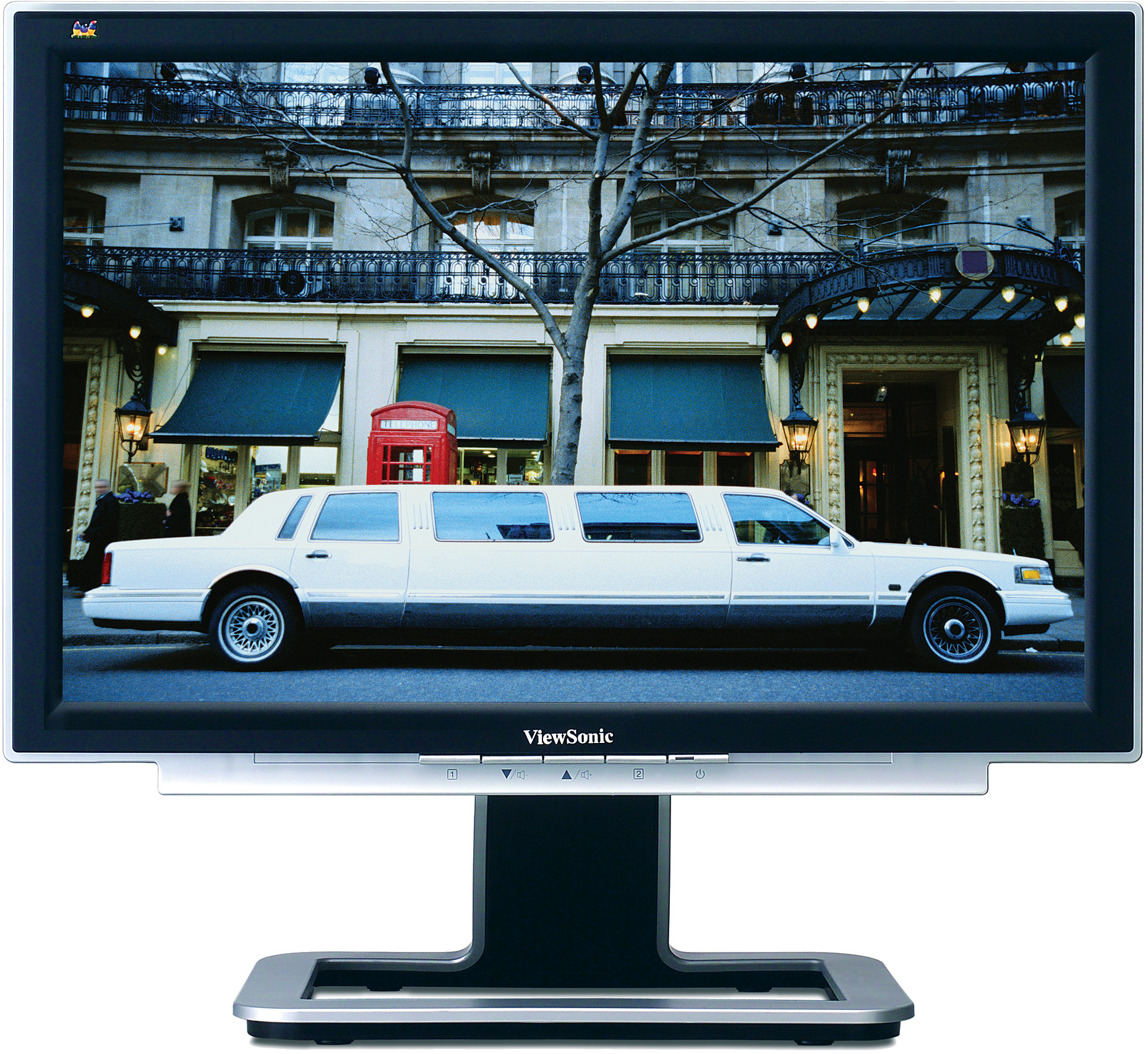

VX2025wm
Produkt Popis
Navštivte nás
  • www.viewsonic.com
  • LCD
    Typ: 20.1” Wide MVA colour TFT active matrix WSXGA+ LCD
    Kontrastní poměr: 800:1 (typ.)
    Zobrazovací úhly: 176° horizontal, 176° vertical (at 10:1)
    Display Area: 43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
    Optimum Resolution: 1680 x 1050
    Doba odezvy: 8ms (Grey-to-Grey) (typ.), 16ms (off-on-off) (typ.)
    Světelný zdroj: Long life, 40000 hrs. (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.258mm
    Colour Support: 16.7M colours (8-bit)
    Pixel Clock: 205MHz analogue, 165MHz digital
    Jas: 300cd/m²
  • COMPATIBILITY
    PC: VGA up to 1680 x 1050 non-interlaced (max. 60Hz)
    Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)
  • DIMENSIONS
    W x H x D mm: 485 x 441 x 201 (with stand)
    485 x 340 x 67 (without stand)
  • OBSAH BALENÍ
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide,
    ViewSonic Wizard CD-ROM (User Guide/drivers)
  • WARRANTY
    Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
  • INPUT
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
    Digital: DVI-D (TMDS, 100 ohm)
    Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz
  • CONNECTOR
    Analogue: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)
    Digital: 24-pin DVI-D (detachable cable)
    Audio: 3.5mm stereo audio line-in
    Výkon: 3-pin AC plug (CEE22)
  • POWER
    Napětí: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Spotřeba: 35 watt (max.), <1 watt in power save mode
  • CONTROLS
    Basic: Down 5°, Up 20°
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch®
    colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V
    frequency, pixel clock, model number, serial number), manual image adjust (H/V
    position, H size, fine tune, sharpness), setup menu (language, resolution notice,
    OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Teplota: 0°C – 40°C
    Vlhkost: 10% – 90% (non-condensation)
  • WEIGHT
    Čistá hmotnost: 6.3kg (with stand)
  • POWER MANAGEMENT
    Meets TCO’99 and ENERGY standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA® FPMPMI 100mm x 100mm
  • ERGONOMICS
    Naklápění: Down 5°, Up 20°
  • AUDIO
    Speakers: Integrated invisible stereo speakers
