Klíčové Vlastnosti

VSD224
Produkt Popis

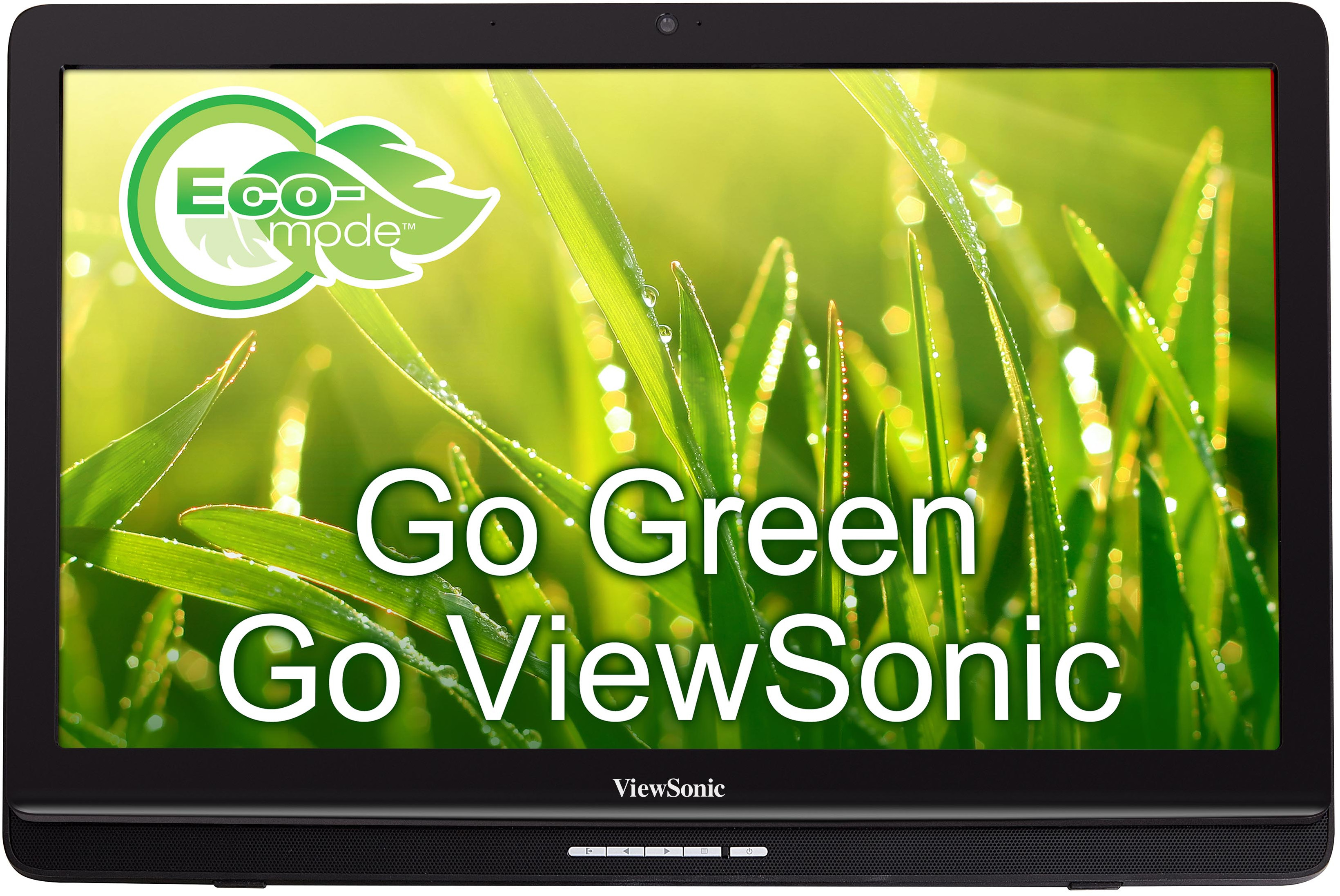

The ViewSonic VSD224 is a 22’’ (21.5” viewable) all-in-one Smart Display with 1920x1080 Full HD resolution. It features a Quad-core 1.6 GHz Processor, an optical touch screen, and Android KitKat OS. Retailers can utilize the VS224 as digital signage, a social media station and a product purchase kiosk. Versatile connectivity options include HDMI, two USB ports, micro USB port, Micro SD card reader, RJ45 LAN, headphone jack, and 1.2M pixel webcam with integrated microphone for video conferencing. Wireless and Bluetooth network connections allow users to collect sales data, transfer files and increase customer involvement during purchasing or in-store browsing. Integrated speakers, Optical touch and enhanced 3H hard coated glass, increases the VSD224’s versatility, making it perfect for an ever evolving business platform.
Navštivte nás
  • www.viewsonic.com
  • SYSTEM
    CPU Processor: Rockchip RK3188 ( Quad- Core A9 1.6GHz)
    Operační systém: Android™ KitKat 4.4 system
    System Memory: 1GB DDR3L
    Storage Memory: 8GB eMMC iNand
    Internal MIC: Yes
  • DISPLAY
    Typ: 21.5” TFT transmissive LCD ( AUO – T215HVN01.1
    Optimum Resolution: 1920 x 1080
    Jas: 250 cd/m2 (typ.)
    Kontrastní poměr: 3000:1 (typ.)
    Backlight: Using DC adjust backlight with flicker-free implement
    Touch Panel: Optical 12C interface (21TQG215020) glass 3mm
  • INPUT/OUTPUT
    USB: (A type)*2 for peripheral (KB/Mice/Flash drive & external HD support FAT32 format only)
    HDMI: Micro-USB (OTG)
    Card Reader: Micro SD card
    LAN/Ethernet: 10M/100M
    Audio: 3.5mm audio jack for stereo headset
    Speakers: 2W *2 stereo
    Front Camera: 1.3MP Fix focus
  • POWER
    Napětí: AC Input voltage 100~240VAC, 50/60Hz (universal),
    AC input current : 1 Aac max
    DC output voltage : 19V dc ( typical)
    DC output current : 2.1A ( typical)
    Spotřeba: - On mode: 24.5 W (Typical)
    - Standyby mode: 5 W
    -Off mode : 0.33 W
  • OPERATING CONDITIONS
    Temperature (º F / º C): 0°C to 35°C, 20%~90% non-condensing, 0~35°C, 0~6,561 ft (2.000 m), operational at reduced reliability and performance.
    Vlhkost: -30°C to 65°C, 5%~90% non-condensing
  • DIMENSIONS (W X H X D) (INCH / MM)
    Fyzicky (palce / mm): 20.89 x 14.06 x 2.96 inches/530.4 x 357.1 x 75.2 mm
    Balení (palce / mm): 23.9x 18.9 x 7.25 inches/607 x 480 x 184 mm
  • WEIGHT
    Čistá hmotnost (lb / kg): 4.66 kg (14.2 lbs)
    Hrubá hmotnost (lb / kg): 6.45 kg (10.35 lbs)
