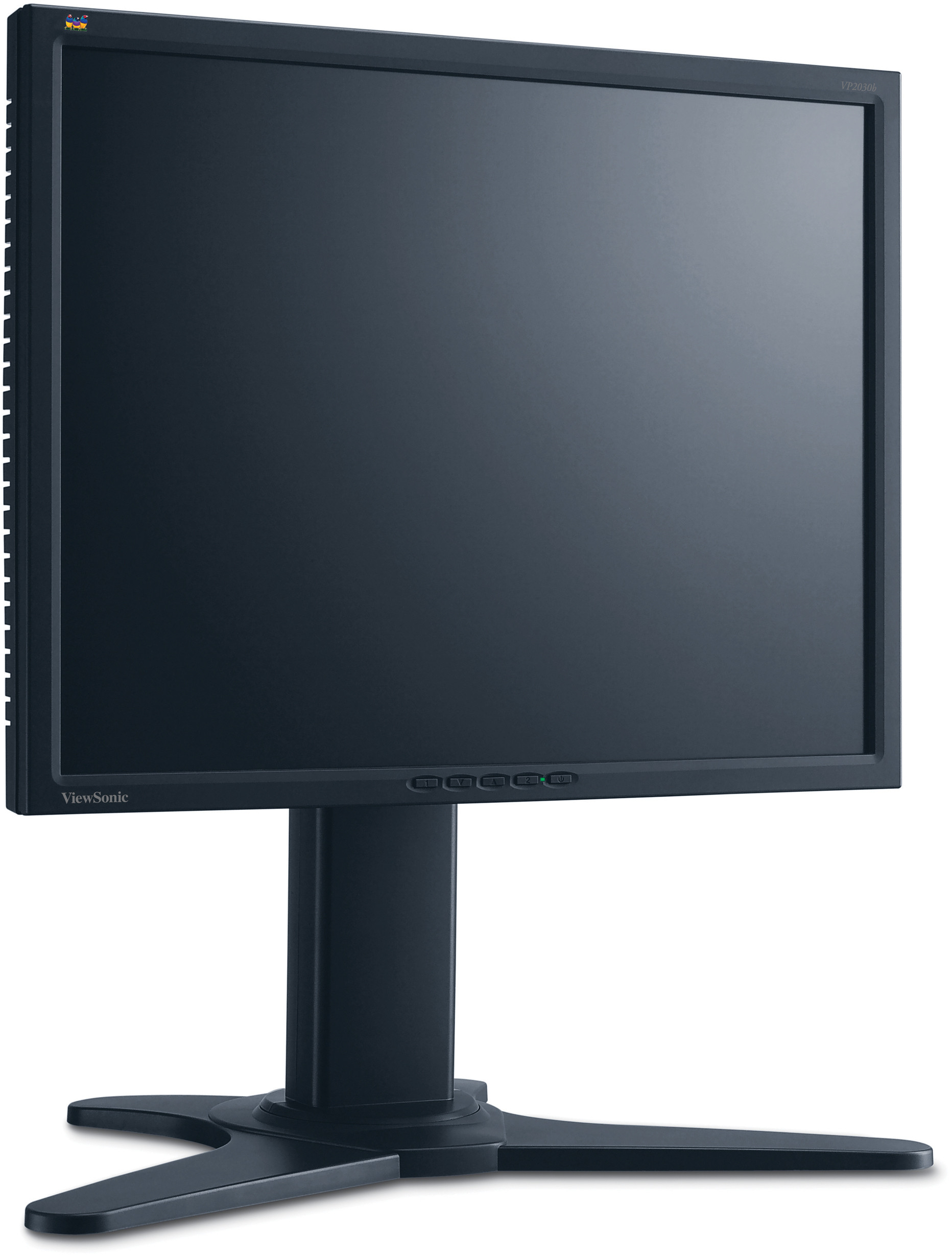

ViewSonic VP2030b Large work space and enhanced flexibility

Klíčové Vlastnosti

Produkt Popis

With the VP2030b, the large 20.1” screen and 1600 x 1200 resolution ensures you don’t lose sight of your big ideas. This THINEDGE ULTRA-SLIM BEZEL LCD MONITOR also increases productivity thanks to 170o ultra-wide viewing angles and ClearMotiv™ 8 ms broadcast- quality display technology. Professional users such as video editors, financial traders and CAD/CAM engineers as well as power gamers will welcome the possibility of multiple-panel configurations with easy HEIGHT/TILT/270° SWIVEL/PIVOT adjustments. The numerous digital/analogue inputs and USB 2.0 high-speed connectivity make the VP2030b extremely versatile and is sure to become a popular choice for demanding applications.It's not just another professional LCD. It's a ViewSonic.

Navštivte nás

www.viewsonic.com

COLORS

Black

LCD

Typ:	20.1" MVA colour TFT active matrix UXGA LCD
Kontrastní poměr:	1000:1 (typ.)
Zobrazovací úhly:	170° horizontal, 170° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Glass Surface:	Anti-glare
Display Area:	40.8cm (horizontal) x 30.6cm (vertical), 51.1cm diagonal
Optimum Resolution:	1600 x 1200
Doba odezvy:	8ms (grey-to-grey), 16ms (off-on-off)
Pixel Pitch:	0.255mm
Bandwidth:	165MHz
Colour Support:	16.7M colours (8-bit)
Jas:	300cd/m² (typ.)

COMPATIBILITY

Mac®: Power Mac™ up to 1600 x 1200 (max. 60Hz)

PC: Compatible from VGA up to 1600 x 1200 non-interlaced (max. 60Hz)
DIMENSIONS

W x H x D mm: 468 x 403 - 538 x 315 (w/stand)
448 x 346 x 66 (w/o stand)
OBSAH BALENÍ

LCD monitor, power cable, 15-pin VGA video cable, DVI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers), PerfectSuite™ CD-ROM

CONNECTOR

Analogue:	15-pin mini D-sub (detachable cable)
Digital:	29-pin Digital DVI-I (analogue and digital) (detachable cable)
USB:	1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
Výkon:	3-pin AC plug (CEE22)

POWER

Napětí: AC 100 – 240V, 50/60Hz (Auto-Switch), internal power supply

Spotřeba: 52 watt (typ.), < 2 watt in power save mode

CONTROLS

Basic:

Soft power, menu [1] , down, up, select [2], main power

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-A, DVI-D), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (PIP [PIP,PIP position, PIP swap], H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, input priority, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock, memory recall

OPERATING CONDITIONS

Teplota: 0°C to 40°C

Vlhkost: 10% to 90% (non-condensing)
WEIGHT

Čistá hmotnost: 9kg (w/stand); 5.2kg (w/o stand)
VIDEO INPUT

Frequency: Fh: 24 – 92kHz, fv: 50 – 85Hz

Sync: H/V separated (TTL), composite, sync on green

Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)

Digital: DVI (TMDS, 100 ohms)
POWER MANAGEMENT

Meets TCO’99, ENERGY and Energy Star standards
ERGONOMICS

Naklápění: Down 5°, up 20°

Otočný: 270° (135° left/right)

Height Adjustment: 0~ ≥135mm

Pivot: 0°~ 90°

Mac®:	Power Mac™ up to 1600 x 1200 (max. 60Hz)
PC:	Compatible from VGA up to 1600 x 1200 non-interlaced (max. 60Hz)

Napětí:	AC 100 – 240V, 50/60Hz (Auto-Switch), internal power supply
Spotřeba:	52 watt (typ.), < 2 watt in power save mode

Frequency:	Fh: 24 – 92kHz, fv: 50 – 85Hz
Sync:	H/V separated (TTL), composite, sync on green
Analogue:	RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Digital:	DVI (TMDS, 100 ohms)

Naklápění:	Down 5°, up 20°
Otočný:	270° (135° left/right)
Height Adjustment:	0~ ≥135mm
Pivot:	0°~ 90°

Teplota:	0°C to 40°C
Vlhkost:	10% to 90% (non-condensing)
