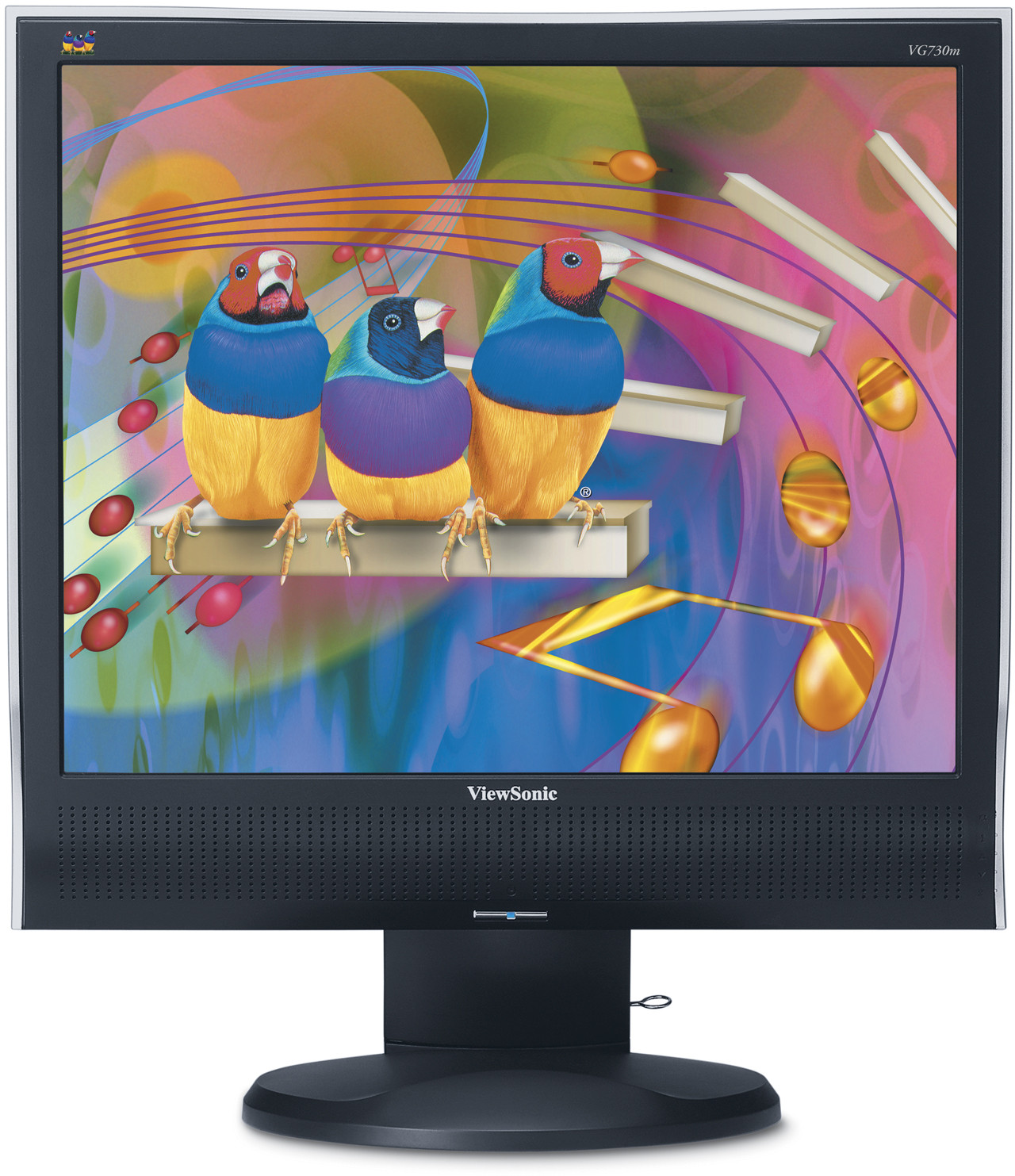

ViewSonic VG730m 17" DIGITALMEDIA™ LCD MONITOR WITH CLEARMOTIV® 8MS VIDEO RESPONSE

Klíčové Vlastnosti

Produkt Popis

The 17” ViewSonic VG730m LCD monitor is the ultimate value LCD business display. Featuring height adjustment, tilt and 360° swivelfeatures, the VG730m allows the user to set the ergonomic position of the monitor to generate the best possible viewing position andgreatest viewing comfort. Image quality is guaranteed with premium contrast and brightness levels to deliver superb pictures with vivid, brilliant colours and crisp detail. Digital and analogue inputs ensure maximum connectivity and integrated stereo speakers provide space-saving high quality sound to your desktop. The full featured VG730m is the ideal LCD monitor for business, home office, government or education use.

Navštivte nás

www.viewsonic.com

COLORS

Black

LCD

Typ:	43cm / 17" TN colour TFT active matrix SXGA LCD
Kontrastní poměr:	600:1 (typ.)
Zobrazovací úhly:	150° horizontal, 145° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Jas:	280cd/m² (typ.)
Display Area:	33.8cm (horizontal) x 27.0cm (vertical), 43.2cm diagonal
Optimum Resolution:	1280 x 1024@60Hz
Doba odezvy:	8ms (off-on-off) (typ.)
Světelný zdroj:	Long life, 50,000 hrs. (typ)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.264mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock:	140MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
DIMENSIONS

Physical With Stand: 387 x 475-555 x 230

Physical Without Stand: 387 x 367 x 67

W x H x D mm: 445 x 552 x 278
OBSAH BALENÍ

LCD Monitor, power cable, D-sub video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/ drivers) (multi-language)
AUDIO

Reproduktor: 2 x 1.5 watt integrated stereo speakers
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Výkon: 3-pin AC plug (CEE22)

Audio: 3.5mm stereo audio line-in
POWER

Napětí: AC 100–240V, 50/60Hz (auto switch), internal power supply

Spotřeba: 35 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2], mute

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Teplota: 5°C–35°C

Vlhkost: 20%–80% (non-condensation)
WEIGHT

Net With Stand: 5.0kg

Hrubý: 6.9kg
VIDEO INPUT

Frequency: Fh: 30–82kHz, Fv: 50–75Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Digital: DVI-D (TMDS, 100 ohms)
POWER MANAGEMENT

Meets TCO’03 and ENERGY STAR standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Naklápění: Down 5°, up 20°

Otočný: 360° swivel base

Height Adjustment: 0~80mm

PC:	VGA up to 1280 x 1024 non-interlaced
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced

Physical With Stand:	387 x 475-555 x 230
Physical Without Stand:	387 x 367 x 67
W x H x D mm:	445 x 552 x 278

Analogue:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Výkon:	3-pin AC plug (CEE22)
Audio:	3.5mm stereo audio line-in

Napětí:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Spotřeba:	35 watt (typ.), <1 watt in power save mode

Frequency:	Fh: 30–82kHz, Fv: 50–75Hz
Sync:	H/V separated (TTL)
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Digital:	DVI-D (TMDS, 100 ohms)

Naklápění:	Down 5°, up 20°
Otočný:	360° swivel base
Height Adjustment:	0~80mm

Teplota:	5°C–35°C
Vlhkost:	20%–80% (non-condensation)

Net With Stand:	5.0kg
Hrubý:	6.9kg
