Klíčové Vlastnosti

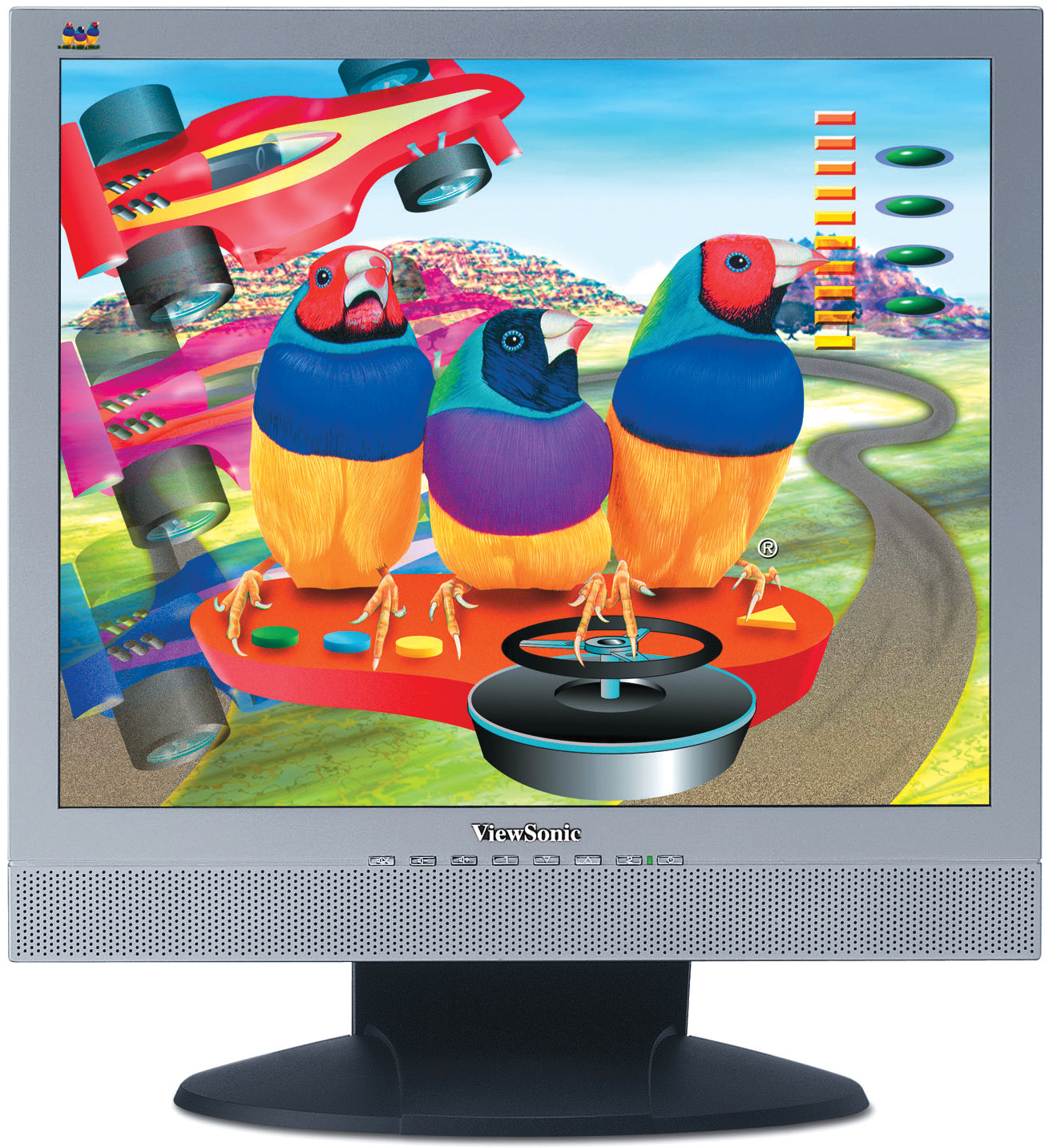

VG712b
Produkt Popis
Navštivte nás
  • www.viewsonic.com
  • LCD
    Typ: 43mm / 17.0" colour TFT active matrix SXGA LCD
    Kontrastní poměr: 500:1 (typ)
    Zobrazovací úhly: 140° horizontal, 130° vertical (at 10:1)
    160° horizontal, 160° vertical (at 5:1)
    Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Doba odezvy: 8ms (typ.)
    Panel Surface: Anti-glare
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Jas: 300 cd/m² (typ)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024
    Mac®: Power Mac™ G3/G4 up to 1280 x 1024
  • DIMENSIONS
    Physical With Stand: 378mm x 405mm x 177mm
    Physical Without Stand: 378mm x 405mm x 50mm
  • AUDIO
    Reproduktor: 2x3-watts
    Amplifier: 3 watts @1kHz
  • CONNECTOR
    Audio: 3.5mm audio line-in
    Signal: 15-pin mini D-sub, DVI-D2
    Výkon: 3-pin AC plug
  • POWER
    Napětí: AC 100-240V, 50-60Hz (auto switch), external power supply
    Spotřeba: <36W (typ), ≤1W in power save mode
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2, mute, volume up, volume down
    OSD: Auto image adjust, contrast, brightness input select, audio adjust
    (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
    5400K, 5000K, user colour), information (mode, model
    number, serial number), manual image adjust (H. size, H. position,
    V. position, fine tune, sharpness), setup menu (language, resolution
    notice, OSD position, OSD timeout), memory recall
  • OPERATING CONDITIONS
    Teplota: 0–40°C
    Vlhkost: 10–90% (non-condensing)
  • WEIGHT
    Čistá hmotnost: 5.3kg
  • VIDEO INPUT
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
  • POWER MANAGEMENT
    Meets TCO’03 and ENERGY standards.
