LCD Displej
VG2235m
Klíčové Vlastnosti
Produkt Popis

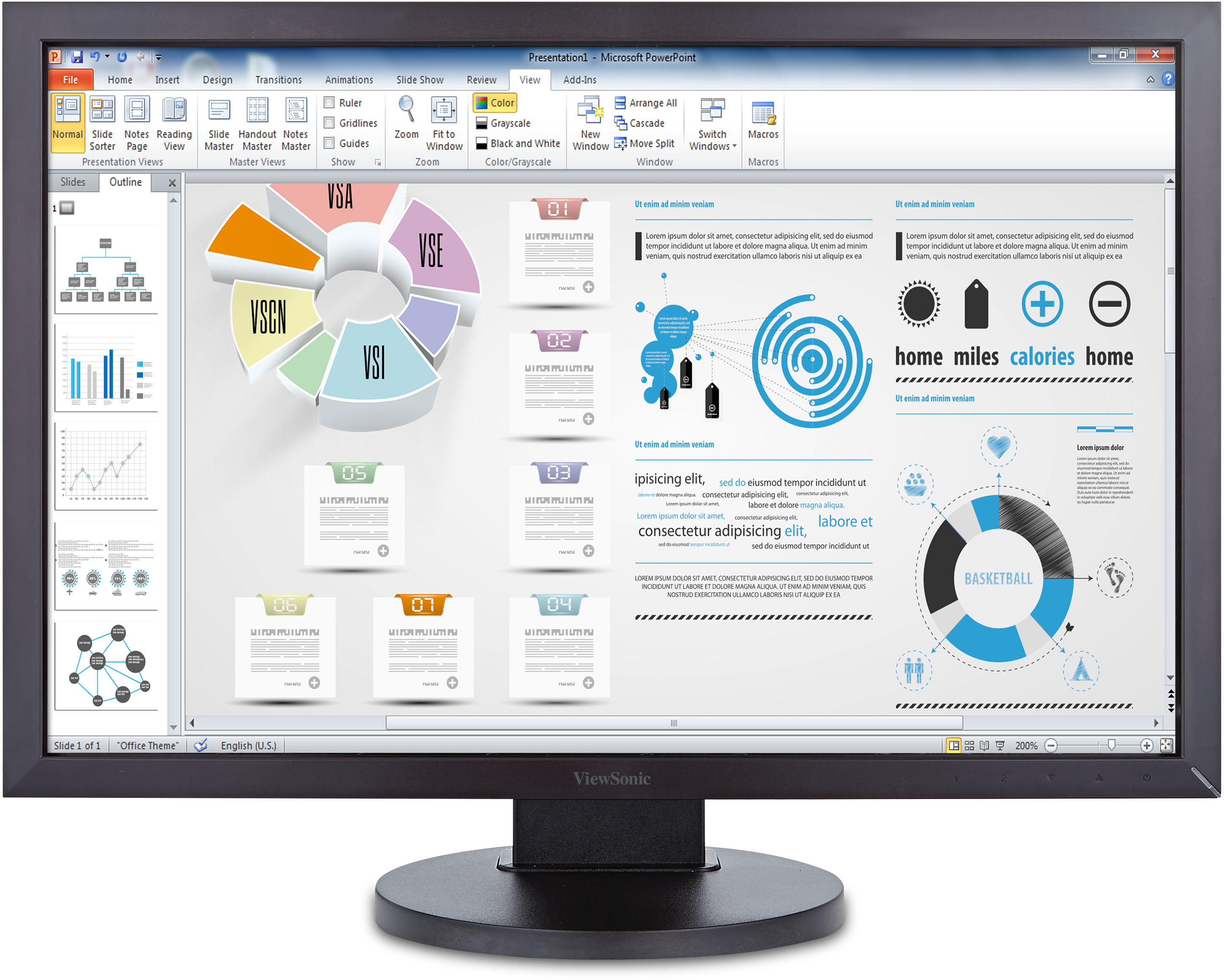

ViewSonic’s VG2235m is a fully ergonomic 22’’ multimedia display that features 1680 x 1050 resolution, 16:10 aspect ratio, and -5° to 37° tilt, 360° swivel, 90° pivot and 100mm height adjustment to provide a larger on-screen work area for greater productivity and comfort. Daily users will appreciate ViewSonic’s latest Flicker-free and Blue Light Filter eye-care technologies that reduce eye fatigue caused by prolonged use. ENERGY STAR® certified and energy-efficient, this ViewSonic LED display’s exclusive ECO-mode reduces power consumption at all brightness levels and minimizes maintenance effort and cost. ViewMode Web, Text and Movie modes also provide optimized image performance for different activities, making this display the perfect choice for corporate, government, SMB and educational institutions.
Navštivte nás
- www.viewsonic.com
-
LCD
Typ: 22" Wide Color a-Si TFT Active Matrix LCD Optimum Resolution: 1680 x 1050 Kontrastní poměr: 1000:1 (typ) Zobrazovací úhly: 170°/160° (typ) Doba odezvy: 5 ms (typ) Panel Surface: Anti-Glare type, Hardness 3H Display Area: 473.76 x 296.1 mm Colour Support: 16.7M Jas: 250 cd/m² Poměr dynamického kontrastu: 20M:1 Backlight: WLED light bar Životnost podsvícení: 30,000 Hrs (Min) -
KOMPATIBILITA
PC: VGA up to 1680x1050 Non Interlaced Mac®: Power Mac up to 1280x1024 -
KONEKTOR
Výkon: Internal Power Board , 3-pin plug (CEE22) x1 Video: D-Sub x1, DVI-D x1 Audio Input: Audio in x1(3.5mm plug) Reproduktor: 2Wx2 -
OVLáDACí PRVKY
Front Panel: [1],[Dn] [Up], [2], [PW] OSD Setting: Auto Image Adjust Contrast/Brightness Input Select D-SUB,DVI, Audio Adjust Volume, mute, Audio input Color Adjust sRGB, BLUISH, COOL, NATIVE, WARM, User Color [R, G, B] Information Manual Image Adjust H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, OVERSCAN, Eco mode,ViewMode,Blue Light Filter Setup Menu Language Select, Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off, Power Indicator, SLEEP Memory Recall
[ 1 ] : Main Menu [ 2 ] : Input Select [Up] : To immediately ViewMode [Dn] : To immediately Blue kight filter [Up] + [Dn] : 1. In the CR/BT menu, Recall Contrast or Brightness to default in its menu without OSD message 2. In the Audio mode, recall both of Volume and Mute to default without OSD message.( Under Volume adjust submenu,recall Volume to default without OSD message.) 3. While OSD menu off, recall Contrast & Brightness to default without OSD message. 4. After DCR on, CR/ BT is disabled, therefore, no action for CR/BT. [ 1 ] + [ 2 ] : Timing toggle, refer to section [ 1 ] + [Up] + [Dn] : Auto White Balance [ 1 ] + [Dn] : Power Lock [ 1 ] + [Up] : OSD Lock [2] + [▲]: Logo Boot Up Screen On/Off [2] + [▼]: Toggle DDC/CI and DDC/2B -
DIMENSIONS
Physical With Stand: 20.17” (W) x 15.31" (H) x 8.04” (D) 512.4mm (W) x 389.0mm (H) x 204.3mm (D) Physical Without Stand: 20.17” (W) x 13.2” (H) x 1.88” (D) 512.4mm (W) x 335.3mm (H) x 47.7mm (D) Packaging: 22.32" (W) x 15.90" (H) x 5.98" (D) 567mm (W) x 404mm (H) x 152mm (D) -
OBSAH BALENÍ
LCD Display Power Cable Video Cable Audio Cable Quick Start Guide ViewSonic Wizard CD-ROM *Actual content may differ from market to market -
WARRANTY
*Warranty offered may differ from market to market -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws -
INPUT SIGNAL
Digital: DVI (TMDS, 100 ohms) Sync: Separate Sync Composite Sync Sync on Green Frequency: Fh = 30 ~80 kHz ; Fv = 50 ~75 Hz Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p) -
POWER
Optimize: 11W Conserve: 8W Napětí: AC 100-240V (Universal); 50/60 Hz Spotřeba: 18.5W -
VESA® MOUNT
100 x 100 mm -
ERGONOMICS
Height Adjustment: 0-100mm Rotation: 90˚ Naklápění: 37˚ ~ -5˚ Otočný: 360˚ -
WEIGHT
Hrubý: 13.67 lbs / 6.20 kg Net With Stand: 10.69 lbs / 4.85 kg Net Without Stand: 7.17 lbs / 3.25 kg -
OPERATING CONDITIONS
Vlhkost: 10% to 90% (no condensation) Teplota: 32°F to 104°F (0°C to 40°C)
