Klíčové Vlastnosti

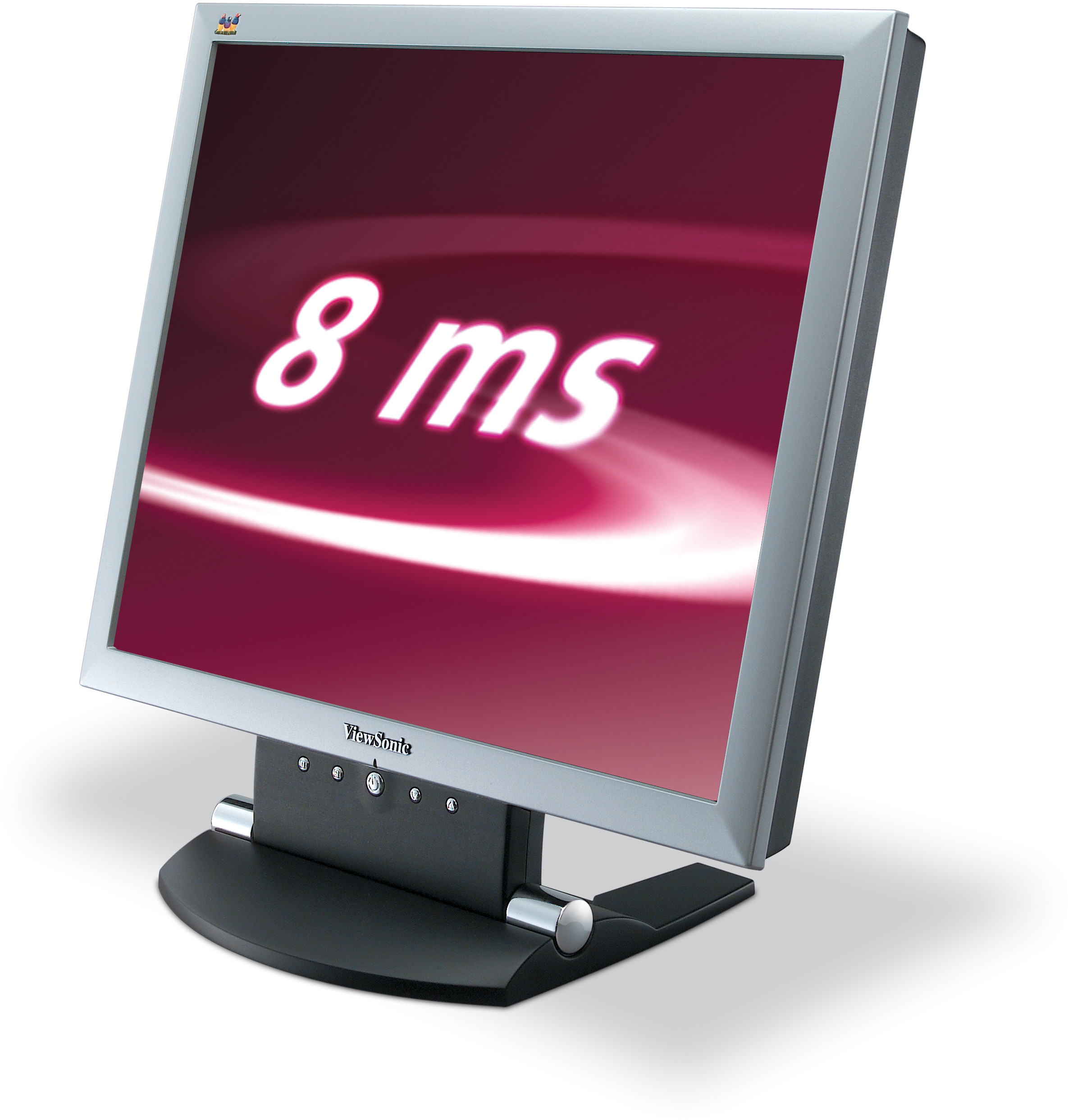

VE710s
Produkt Popis
Navštivte nás
  • www.viewsonic.com
  • LCD
    Typ: 17” Colour TFT Active Matrix SXGA LCD,TN Technology.
    Kontrastní poměr: 500:1 (typ)
    Zobrazovací úhly: 140° horizontal, 125° vertical @10:1
    160° horizontal, 145° vertical @ 5:1
    Display Area: 337.9mm horizontal x 270.3mm vertical
    Doba odezvy: 8ms (typ)
    Panel Surface: Anti-glare
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Jas: 260 cd/m² (typ)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 (non interlaced)
    Mac®: Power Mac™ G3/G4 up to 1280 x 1024
  • DIMENSIONS
    Fyzicky (VxŠxH): 377.6mm (W) x 195.6 mm (D) x 374.0 mm (H)
  • CONNECTOR
    Signal: 15-pin mini D-sub, attached cable
    Výkon: 3-pin AC plug
  • POWER
    Napětí: AC 100–240V, 50–60Hz (internal power supply)
    Spotřeba: <35W (typ); ≤ 1 watt in power save mode
  • CONTROLS
    Basic: Power (Soft), [1], [Down], [Up], [2]
    OSD: Auto Image Adjust, Contrast, Brightness, Colour Adjust [sRGB,
    9300K, 6500K (default), 5400K, R, G, B], Information [Mode, Model
    Number, Serial Number, Website], Manual Image Adjust [H. Size,
    H. Position, V. Position, Fine Tune, Sharpness, Setup Menu Language
    (English, French, German, Italian, Spanish, Finnish, Japanese,
    Simplified and Traditional Chinese), Resolution Notice, OSD
    Position, OSD Timeout, OSD Background], Memory Recall
  • OPERATING CONDITIONS
    Teplota: 0–40°C
    Vlhkost: 10–90% (non-condensing)
  • WEIGHT
    Čistá hmotnost: 4.1 kg
  • VIDEO INPUT
    Frequency: Fh: 30~80kHz, Fv: 50~75Hz
    Sync: H/V separated (TTL)
    Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
  • POWER MANAGEMENT
    Meets TCO'99, ENERGY and Energy Star standards.
