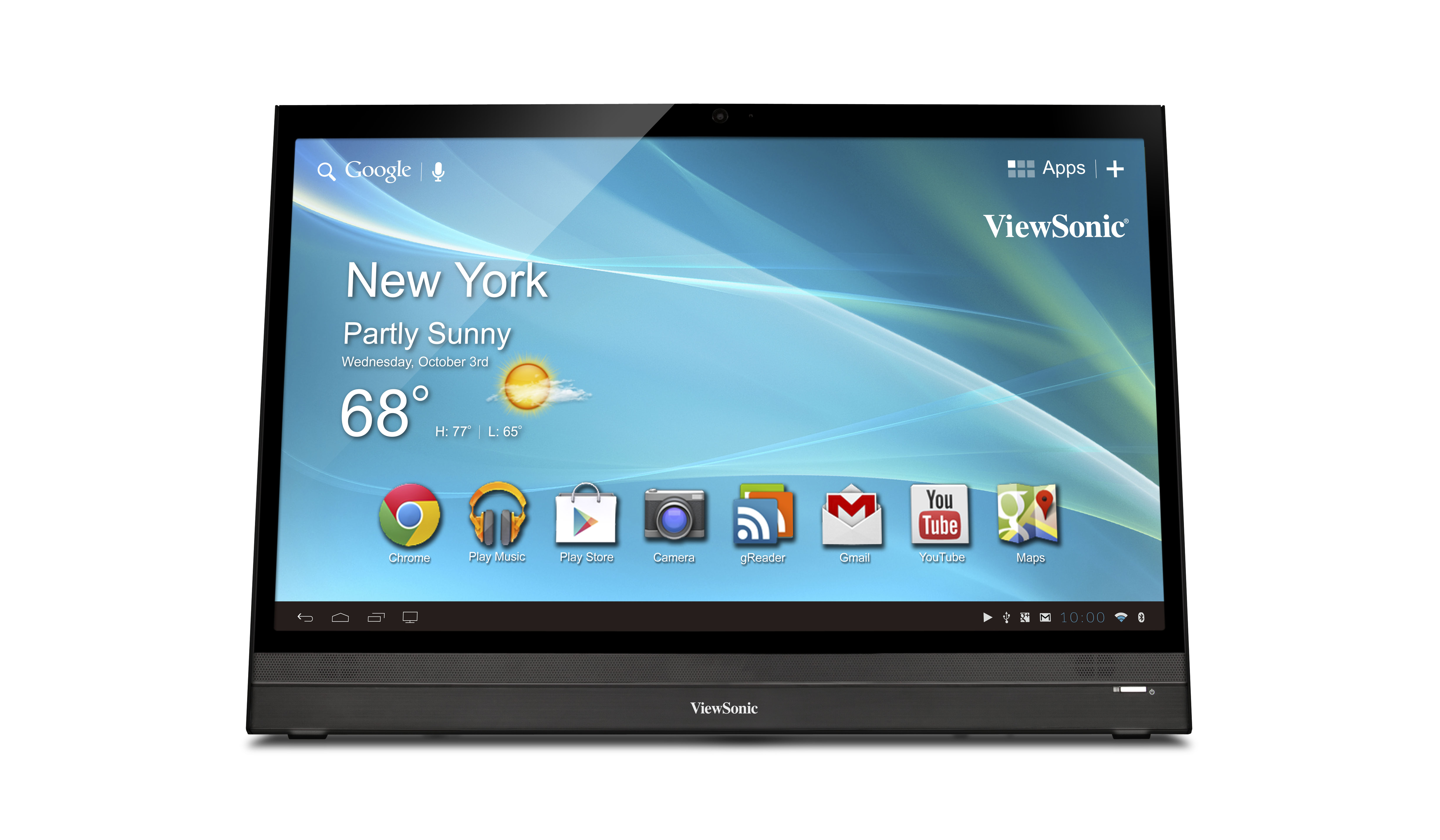

ViewSonic SD-A225 Next Generation Desktop Thin Client

Klíčové Vlastnosti

Produkt Popis

The ViewSonic® SD-A225 is a 22" (21.5" viewable) multi-touch smart display client with 1920 x 1080 Full HD resolution, and a TI Dual Core OMAP processor. With Citrix® XenMobile™ pre-installed, the SD-A225 is a completely locked-down, secured, and fully manageable device for your business. Now you can easily provision and deploy both your mobile and desktop devices. Versatile connectivity options include micro HDMI®, three USB ports (2 Type A and 1 micro USB OTG), micro SD card reader, RJ45, headphone jack, and 1.3MP webcam with integrated microphone for video conferencing. Wireless and Bluetooth® network connections provide instant access to transfer data, documents, and multimedia files. Integrated speakers with SRS® 3D complete the package for multimedia enjoyment. The SD-A225 provides the security and control needed on the desktop to leverage the investments being made in mobile and cloud-based tools.

Navštivte nás

www.viewsonic.com

LCD

Typ:	22" (21.5" viewable) Wide Colour TFT Transmissive LED
Kontrastní poměr:	3000:1 (typ.)
Zobrazovací úhly:	170º horizontal, 160º vertical
Display Area:	19.0" horizontal x 10.7" vertical; 21.5" diagonal
Optimum Resolution:	1920 x 1080p
Doba odezvy:	5ms (typ.)
Jas:	250 cd/m2 (typ.)
Backlight:	White-light LED
Životnost podsvícení:	30,000 hours (min.)
Touch Controller:	Dual touch with pinch and zoom
Touch Panel:	Optical touch type, with glass 8H

DIMENSIONS

Fyzicky (VxŠxH): 20.2 x 13.9 x 1.0 in. / 512.8 x 353 x 56.6 mm

Packaging: 23.6 x 16.9 x 4.9 in. / 598 x 428 x 123 mm
OBSAH BALENÍ

1.SD-A225 smart display

2.power cord and adapter

3.micro HDMI to HDMI cable

4.micro USB to USB cable

5.Quick Start Guide

*Actual content may differ from market to market

CONNECTOR

HDMI (input):	Micro HDMI
USB:	Type A (x2), micro USB (x1)
Audio:	Headphone jack
Card Reader:	Micro SD card
LAN:	RJ45, Wi-Fi 802.11 b/g/n, Bluetooth V2.1
Výkon:	DC-In jack (ID 1.7mm, OD 4.0mm)
Reproduktor:	1-watt (x2)

POWER

Napětí: AC-DC power (Input: 100V~240V / Output: DC 19V)

Spotřeba: 36W (typ.)
VESA® MOUNT

100 x 100 mm
CAMERA

1.3MP
ERGONOMICS

Naklápění: 15º – 70º
WEIGHT

Hrubý: 12.8 lb. / 5.8 kg

Čistá hmotnost: 10.6 lb. / 4.8 kg
OPERATING CONDITIONS

Vlhkost: 20–90% (non-condensing)

Teplota: 32–95º F (0–35º C)

SYSTEM

CPU Processor:	TI OMAP4470 Dual Core 1.5GHz
Operační systém:	Android™ 4.1 with Citrix XenMobile
System Memory:	1GB (DDR2)
Storage Memory:	8GB (eMMC4.4)
Internal MIC:	Echo cancelling

Fyzicky (VxŠxH):	20.2 x 13.9 x 1.0 in. / 512.8 x 353 x 56.6 mm
Packaging:	23.6 x 16.9 x 4.9 in. / 598 x 428 x 123 mm

Napětí:	AC-DC power (Input: 100V~240V / Output: DC 19V)
Spotřeba:	36W (typ.)

Vlhkost:	20–90% (non-condensing)
Teplota:	32–95º F (0–35º C)

Hrubý:	12.8 lb. / 5.8 kg
Čistá hmotnost:	10.6 lb. / 4.8 kg
