Klíčové Vlastnosti
  • 22,000:1 contrast ratio
  • SonicExpert® technology
  • SuperColor™ technology
  • 5 colour modes
  • Dual HDMI inputs and USB power supply

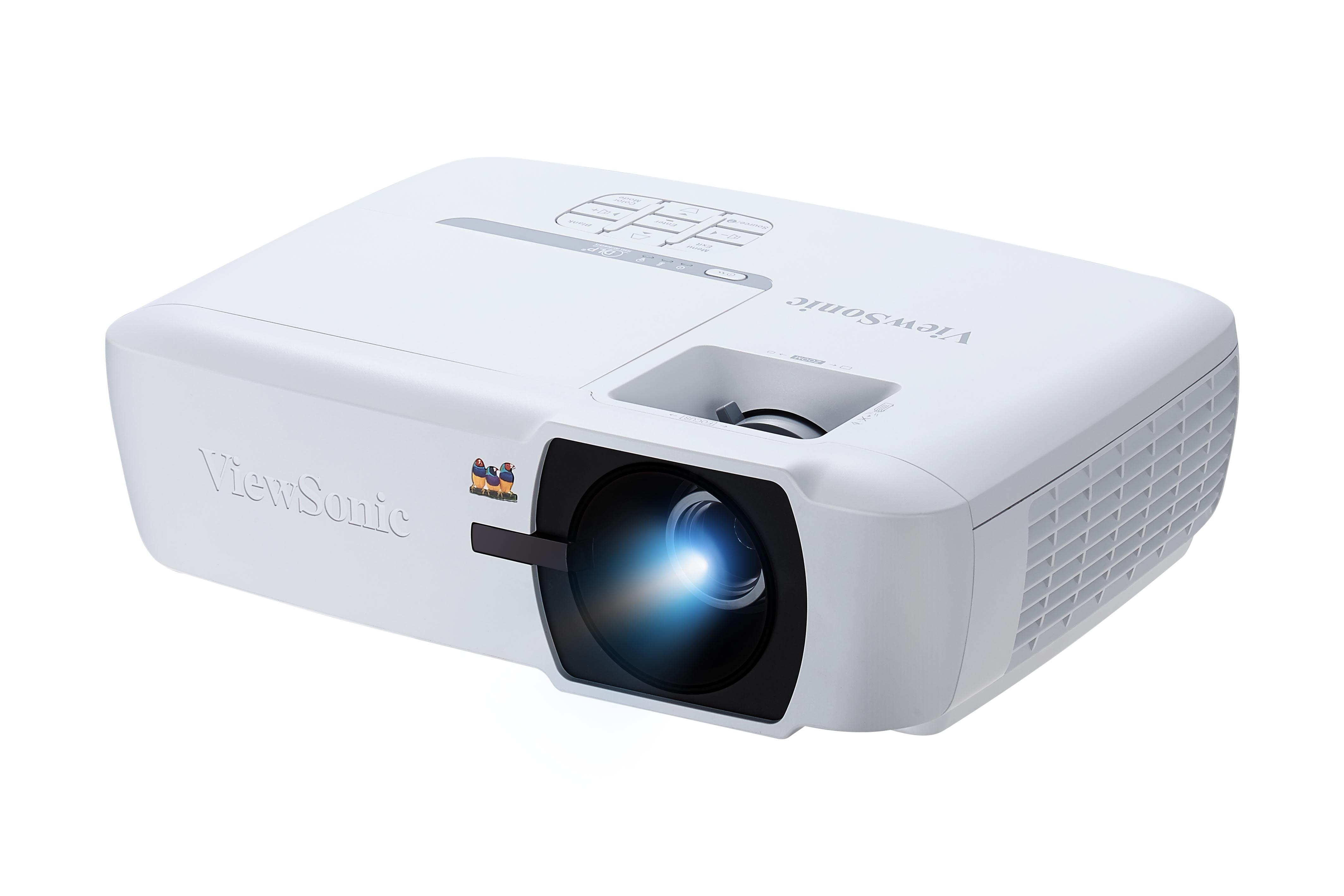

PA505W
Produkt Popis
The ViewSonic PA505W WXGA DLP projector offers impressive audiovisual performance for presentations in the meeting room and in the classroom. Packed with 3500 ANSI lumens of brightness and a 22,000:1 contrast ratio, PA505W is guaranteed to display the finest of details, even in brightly lit environments. Dual HDMI inputs enable multiple users to connect laptops and mobile devices simultaneously for a high-definition experience without lapses of time between presenters. Additionally, the projector’s integrated USB power supply can be used as a power source for any HDMI connected dongle. PA505W’s audio is powered by ViewSonic’s specially tuned SonicExpert® technology to deliver room-filling sound. When you’re done using the projector, the auto power off function can be used to power off your projector instantly to reduce energy consumption and extend lamp life.
  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Zoom/Focus
  5. Projection Lens
  6. Front IR
  7. Dual HDMI
  8. Computer in
  9. RS232
  10. Video
  11. Audio in/out
  12. USB 5V/1.5A
  13. Mini USB for service
  14. Monitor out
  15. Kensington Lock
Navštivte nás
  • www.viewsonic.com
  • SPECIFICATION
    Nativní rozlišení: 1280x800
    DC type: DC3
    Jas: 3500 ANSI Lumens
    Contrast Ratio with SuperEco mode: 22000:1
    Display Color: 1.07 Billion Colors
    Světelný zdroj: Lamp
    Light source life (Nor/SuperEco): 3500/7000
    Lampa Watt: 240W
    Posun projekce: 111%+/-10%
    Projekční poměr: 1.54-1.71
    Image size: 30" - 300"
    Projekční vzdálenost: 1m-11m (100"@3.32m)
    Keystone: ±40° (Vertical)
    Optický zoom: 1.1x
    Audible Noise (Eco): 30dB
    Podpora rozlišení: VGA(640 x 480) to FullHD(1920 x 1080)
    Kompatibilita s HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Kompatibilita s video soubory: NTSC, PAL, SECAM
    Horizontální frekvence: 15K~102KHz
    Vertikální rychlost snímání: 23~120Hz
  • VSTUP
    Computer in (D-SUB 15 pin): 2
    Kompozitní: 1
    Audio vstup (3,5 mm): 1
    HDMI: 2 (Back)
  • VýSTUP
    Monitor out (D-SUB 15 pin): 1
    Audio výstup (3,5 mm): 1
    Reproduktor: 8W Cube
    USB type A (Power): 1 (5V/1.5A)
  • KONTROLA
    RS232: 1
    USB type mini B (Services): 1
  • DALší
    Napětí zdroje napájení: 100-240V+/- 10%, 50/60Hz AC
    Spotřeba energie: Normal: 310W
    Standby: <0.5W
    Provozní teplota: 5~40℃
    Carton: Brown
    Čistá hmotnost: 2.94kg
    Dimensions (WxDxH) w/adjustment foot: 348x234x107mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Napájecí kabel: 1
    VGA cable: 1
    Dálkové ovládání: 1
    QSG & CD: QSG: 1 / CD: NA
