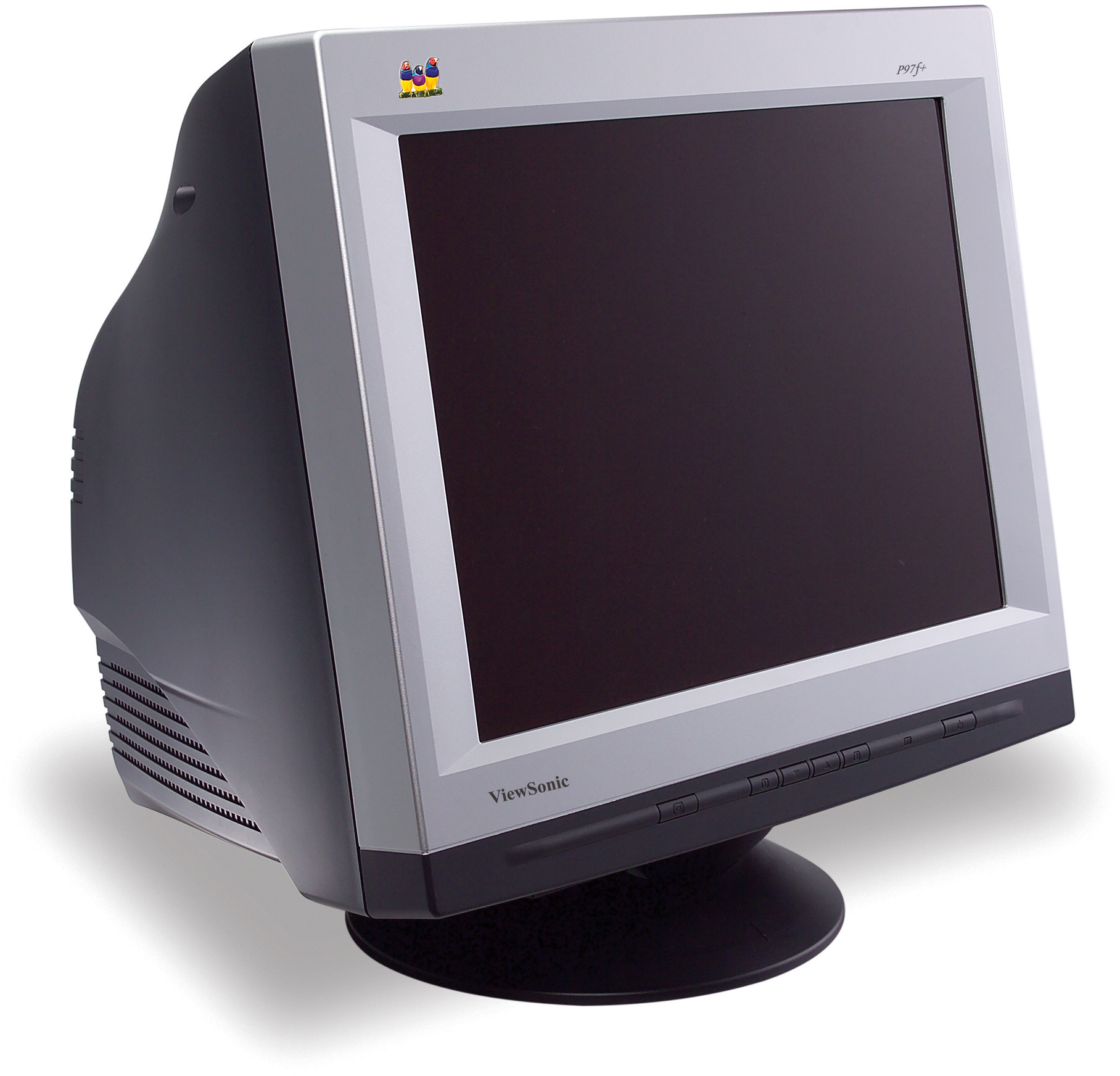

ViewSonic P97fSB 19” (18.0” viewable) Professional Series UltraBrite CRT

Klíčové Vlastnosti

Produkt Popis

Introducing ViewSonic’s ultra-stylish black-on-silver P97f+SBwith UltraBrite™ technology. With an easy touch of the UltraBritebutton, choose between HIGH-BRIGHTNESS TO ENHANCEGAMING, DVD, TV AND GRAPHICS or normal brightness forword processing, spreadsheets and text. The absolutely flatPerfectFlat® APERTURE GRILL TECHNOLOGY DELIVERS RICH,NATURAL HUES and precise colour fidelity. Combined withadvanced screen treatments, it ensures hours of comfortable,distortion-free viewing. With superior performance and at anexceptional price point, the P97f+SB is the perfect choice.

Navštivte nás

www.viewsonic.com

COMPATIBILITY

PC: VGA up to 2048x1536

Mac®: Power Mac ™ G3/G4 VGA up to 1152x870

Other: Most workstations
DIMENSIONS

Fyzicky (VxŠxH): 459mm (W) x 476mm (H) x 478mm (D)

18.1” (W) x 18.7” (H) x 18.8” (D)
INPUT SIGNAL

Frequency: Fh: 30 - 110kHz, Fv: 50 - 160Hz

Video: RGB analogue (0.7Vp-p, 75ohms)

Sync: H/V separated (TTL), composite
CONNECTOR

Signal: 15-pin D-sub (attachable)

Výkon: 3-pin plug (IEC320)
POWER

Napětí: 90 - 240 VAC, 50-60 Hz (auto-switch)

Spotřeba: 97 watts (typ), 130 watts (max)

CONTROLS

Basic:	Power on/off, menu, up, down, select, UltraBrite hot key
OSD:	Contrast, brightness, H/V-size, H/V-position, pincushion, pin-balance, Trapezoid, parallelogram, rotation, zoom, moiré, H/V-convergence, degauss, ViewMatch® colour (9300k, 6500k, 5000k, user), ViewMeter®(mode information) , language, recall

WEIGHT

Čistá hmotnost: 23.4kg (51.6lbs)
VIDEO INPUT

Bandwidth: 285MHz
POWER MANAGEMENT

Meets TCO and ENERGY STAR®

CRT

Typ:	19” (18.0” viewable) CRT, 90° deflection, PerfectFlat
Dot Pitch:	0.24mm aperture grill (uni-pitch)
Phosphor:	RGB B22 medium-short persistence
Glass Surface:	Tint: (TM ~ 47.5%), anti-reflection, anti-static (ARAG®)

MISCONVERGENCE

0.25mm (max) at centre

0.35mm (max) at corners
DISPLAY AREA

Factory Setting: 353mm (H) x 265mm (V) (typ)

Maximum Scan: 367mm (H) x 275mm (V), depending on signal timing used
OPERATING CONDITIONS

Vlhkost: 5% to 95% (non condensation)

Teplota: 0°C to 40°C

PC:	VGA up to 2048x1536
Mac®:	Power Mac ™ G3/G4 VGA up to 1152x870
Other:	Most workstations

Frequency:	Fh: 30 - 110kHz, Fv: 50 - 160Hz
Video:	RGB analogue (0.7Vp-p, 75ohms)
Sync:	H/V separated (TTL), composite

Napětí:	90 - 240 VAC, 50-60 Hz (auto-switch)
Spotřeba:	97 watts (typ), 130 watts (max)

Factory Setting:	353mm (H) x 265mm (V) (typ)
Maximum Scan:	367mm (H) x 275mm (V), depending on signal timing used

Signal:	15-pin D-sub (attachable)
Výkon:	3-pin plug (IEC320)

Vlhkost:	5% to 95% (non condensation)
Teplota:	0°C to 40°C
