Klíčové Vlastnosti

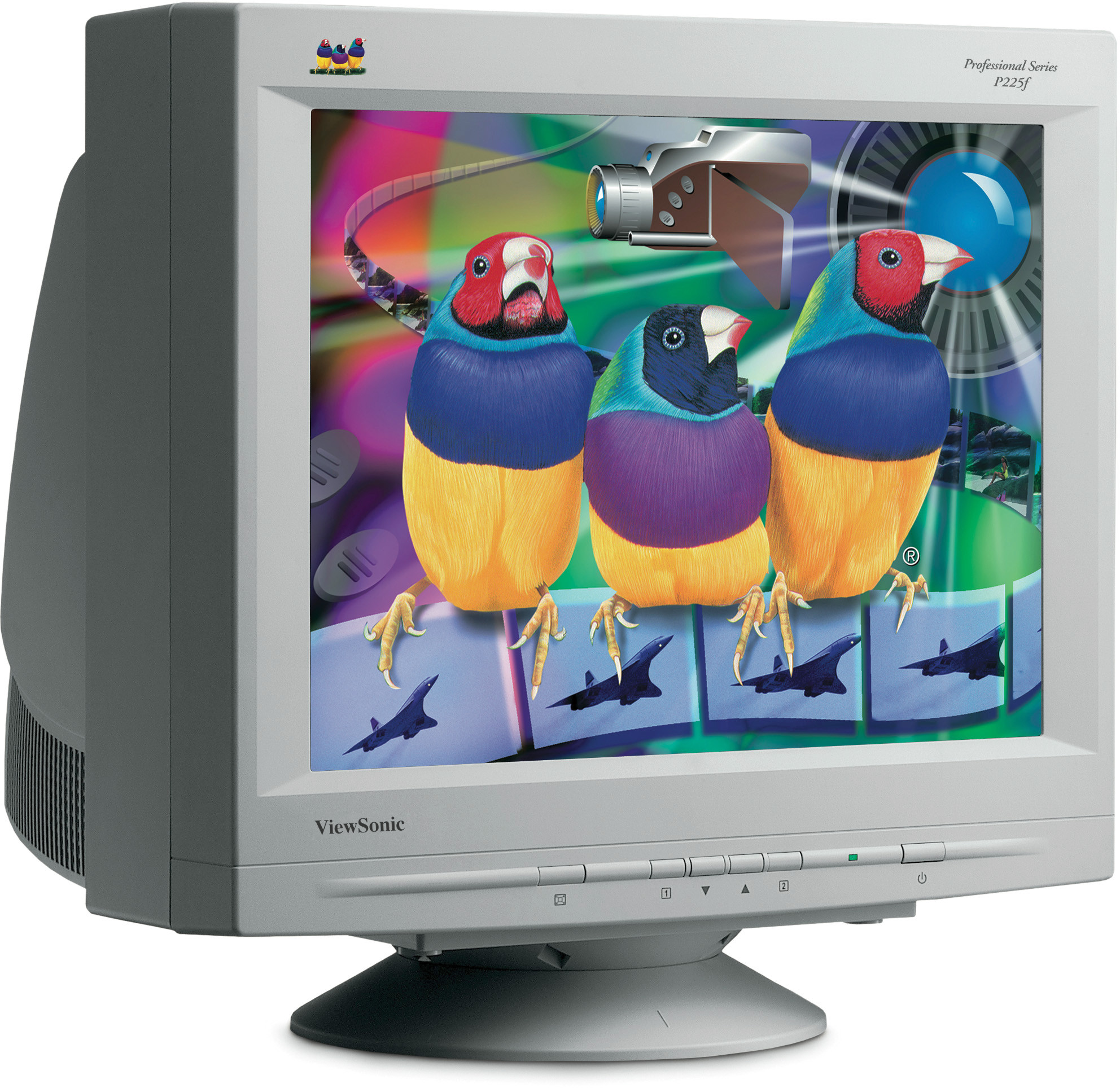

P225f
Produkt Popis
The P225f PerfectFlat monitor from ViewSonic delivers extraordinary performancein a big 22" (20.0" viewable) screen. The monitor boasts anultra high flicker-free resolution of 2048 x 1536 and a video input bandwidthof 340MHz to provide great image details and clarity. In addition,features like an ultra fine 0.24mm aperture grille uni-pitch, PerfectFlattechnology, and advanced screen coating provide precise edge-to-edgeimages in astonishing, rich colours. The P225f is the top-of-the-linechoice for the most demanding professionals in pre-press, imaging, desktoppublishing, 3D, CAD/CAM and graphic design applications. Makethis your ultimate display choice.
Navštivte nás
  • www.viewsonic.com
  • COMPATIBILITY
    PC: PC compatible (from VGA up to 2048 x 1536)
    Mac®: Power Mac™ /G3 from 640 x 480 up to 2048 x 1536
    Other: Most workstations
  • DIMENSIONS
    Fyzicky (VxŠxH): 500mm (W) x 504.3mm (H) x 526.3mm (D)
  • WARRANTY
    Three-year limited warranty
  • INPUT SIGNAL
    Frequency: Fh:30-127kHz, Fv:50-160Hz
    Video: RGB analogue (0.7Vp-p, 75 ohms)
    Sync: H/V separate (TTL), composite, sync-on-green
  • CONNECTOR
    Signal: 15-pin mini D-sub, BNC x 5 [RGBHV]
    Výkon: 3-pin plug (IEC320)
  • POWER
    Napětí: AC 90-260 V, 50-60(+/-2)Hz
    Spotřeba: 130W (typ)
  • CONTROLS
    Basic: Power on/off, Menu, up, down, select, Zoom Hotkey
    OnView®: Contrast, brightness, H/V-position, H/V-size, zoom, pincushion,
    pin-balance, trapezoid, parallelogram, rotation, top/bottom
    hooking, linearity centre, linearity edge, H-moiré, H/V-convergence,
    H/V-focus, corner purity, degauss,ViewMatch® colour,
    language,ViewMeter®, H/V OSD position, OSD offtime, input
    select, recall
  • WEIGHT
    Čistá hmotnost: 31.1kg
  • OTHER
    DDC1, DDC2B, VESA® GTF
  • VIDEO INPUT
    Bandwidth: 340MHz (typical)
  • POWER MANAGEMENT
    Meets ENERGY STAR®, VESA® DPMS™, TCO´03, and
    Energy 2000 standards
  • CRT
    Typ: 56cm / 22" (20" diagonal viewable area), 90° deflection
    Dot Pitch: 0.24mm aperture grille uni pitch
    Phosphor: RGB medium-short persistence B22
    Glass Surface: Tint (TM=39.8%), antistatic/antireflection
  • MISCONVERGENCE
    0.25mm (max at centre)

    0.35mm (max at corner)
  • DISPLAY AREA
    Factory Setting: 396mm (H) x 297mm (V)
    Maximum Scan: 400mm (H) x 300mm (V) (Dependent upon signal timing used)
  • OPERATING CONDITIONS
    Vlhkost: 5% to 90% (no condensation)
    Teplota: 5°C to 35°C (41°F to 95°F)
