Klíčové Vlastnosti

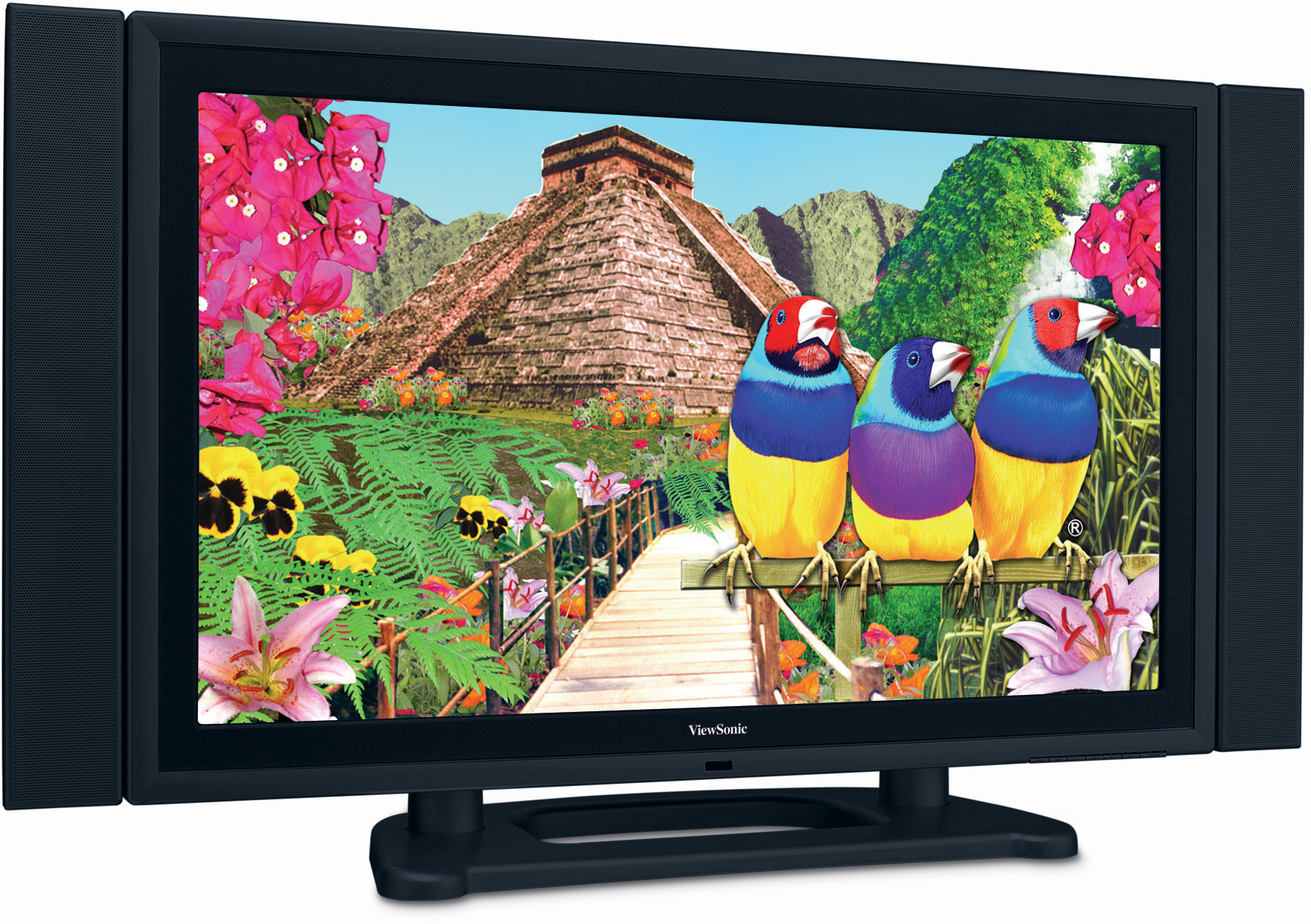

N4200w
Produkt Popis
Navštivte nás
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Typ: 107cm / 42" (42.02" viewable) color TFT active matrix, wide LCD
    Kontrastní poměr: 1600:1 (typ.)
    Zobrazovací úhly: 178° horizontal, 178° vertical (at 10:1)
    Jas: 500cd/m² (typ.)
    Glass Surface: Anti-glare 3H
    Display Area: 93.0cm (horizontal) x 52.3cm (vertical), 107cm diagonal
    Doba odezvy: 8ms (grey-to-grey)
    Poměr stran: 16:9
  • COMPATIBILITY
    PC: 1360x768 (preferred), 1024x768, 1280x768
    Mac®: Power Mac™ G3/G4/G5 up to 1280x1024, 1280x720
  • DIMENSIONS
    W x H x D mm: 1243 x 739 x 304 (with base)

    1243 x 655 x 146 (without base)

    1052 x 655 x 146 (without base/speakers)
  • OBSAH BALENÍ
    LCD TV, power cables (Europe [Schuko]/UK), 1.5m RF cable, remote control, batteries, quick start guide, user guide (multi-language)
  • AUDIO
    Reproduktor: 2x10-watt SRS TruSurround
  • INPUT
    Video vstup: PAL (B/G, D/K, I), SECAM (L), NTSC³, SD (480i/p, 576i/p), HD (720p, 1080i)
  • INPUT SIGNAL
    TV/Video comp.: 480i, 480p, 576p, 720p, 1080i
  • CONNECTOR
    Výkon: 3-pin plug (CEE22)
    Audio Out: 1 x L/R RCA set

    1 x SPDIF
    Composite Video Input: 1 x 4-pin mini DIN jack
    Component Video Input: 1 x RCA set (YPbPr/YCbCr)
    Audio Input: 2 x L/R RCA set
    Audio: 1 x RCA R/L Out
    Headphone: 1 x 3.5mm mini stereo jack
    SCART: 2 x SCART² (SCART 1 [RGB In, S-video In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
    Composite Video Output: 1 x RCA (CVBS)
    Digital-In: 2 x HDMI (HDCP)
    Tuner (Analogue): 1 x Coax RF (PAL/SECAM)
  • POWER
    Napětí: AC 90-240V (universal), 50-60Hz
    Spotřeba: 240W (typ)
  • CONTROLS
    Basic: Power, source, menu, channel up/down, volume up/down
    OSD: Picture Menu (Contrast, brightness, colour temperature [11000k, 9300k, 7500K], sharpness, flesh tone, white balance), TV Menu (Nicam, TV/CATV, channel edit, fine tune), Audio Menu (bass, treble, balance, sound effect), Setup Menu (view mode, sleep timer, blue screen, factory preset, language, OSD position, OSD transparency , OSD timeout), PIP/POP Menu (source, mode, size, position)
  • OPERATING CONDITIONS
    Teplota: 10% to 80% (non condensation)
    Vlhkost: 10% to 80% (non condensation)
  • WEIGHT
    Čistá hmotnost: 33kg (with base), 30.4kg (without base), 28.4kg (without base/speakers)
  • VESA MOUNT COMPLIANT
    VESA® FDMI 200mm x 300mm, 200mm x 400mm, M6 screws
  • TELETEXT
    Yes (1000 pages)
