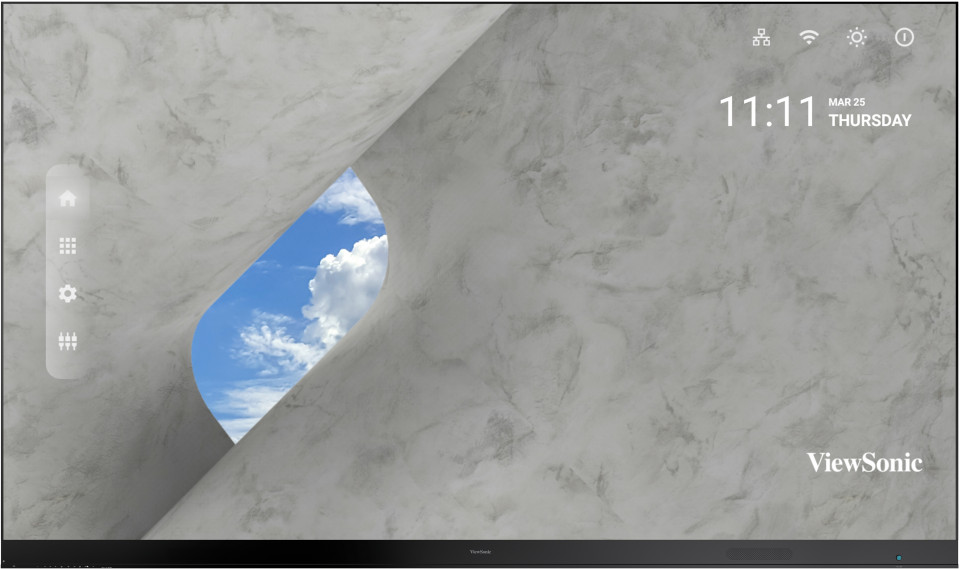

ViewSonic LD135-151 135” All-in-One Direct View LED Display

Klíčové Vlastnosti

Impressively large, yet seamless view
All-in-One design without complicated setup
Easy delivery, installation, and maintenance
Engaging front-facing presentation solution
Flexible wireless content sharing solution

Produkt Popis

The ViewSonic® LD135-151 is an innovative 135” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With 120% Rec. 709 wide colour gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 3.5 cm thickness & bezel-free seamless design, the LD135-151 offers greater colour, brightness, and contrast performance, giving viewers a magnificent visual impact, whether hanging on the wall or aluminum alloy floor stand. The All-in-One large screen display boasts easy delivery, installation, and maintenance with front-assembly modular design. The built-in screen sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LD135-151 enables IT personnel to remotely setup and configure.

RS-232
Ambient Light Sensor
USB 2.0 (5V/0.5A)
USB 3.0 (5V/1A)
HDMI Out
HDMI In
Audio Out
USB-B (Service)
IR Receiver
LAN
Menu Control: Stand-by
Menu Control: Input Source
Menu Control: Brightness Level
Speakers
Power Button

Navštivte nás

www.viewsonic.com

SPECIFIKACE

Screen Size:	135
Plocha displeje (mm):	3000 (H) x 1687.5(V)
Nativní rozlišení:	1920x1080
Tech:	Direct view LED
Pitch Size:	1.5625mm
Refresh frequency:	3840hz
Brightness (max.):	600 nits (8 levels adujstable)
Contrast Ratio (typ.):	6000:1
Viewing Angles (typ.):	H = 160, V = 160
LED Lifetime (typ.):	100,000 Hours
Místní úložiště:	Total 32GB , (26GB available storage)
Podpora rozlišení:	HDMI(640 x 480) to 1080p(1920 x 1080)
Kompatibilita s HDTV:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontální frekvence:	31K-94KHz
Vertikální rychlost snímání:	56-85Hz

VSTUP

HDMI: 2, (HDMI 1.4, HDCP 1.4)

USB Typu A: 3, (USB3.0 x1, USB2.0 x2)

RJ45 Input (Internet): 1

Wifi vstup: 2.4G/5Gn
VýSTUP

HDMI out: 1, (HDMI 1.4, HDCP 1.4)

Reproduktor: 5W*2

Audio výstup (3,5 mm): 1

USB typu A (napájení): Shared with USB input, (5V/1A*1, 5V/0.5A*2)
KONTROLA

RJ45 (LAN control): 1(share with Internet)

USB Type A (Services): 1(share with USB A Input)

USB Type B (Debug): 1

RS232 (DB 9-pin female): 1

IR Receiver: 1

DALší

Napětí zdroje napájení:	100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz, (vary by country)
Spotřeba energie:	2030W (typ), 2900W (max), < 0.5W (Sleep), < 0W (Off)
Provozní teplota:	0~40℃
LED Module Quantity:	100
Ingress Protection Rating:	IP30
Čistá hmotnost:	135kg
Gross Weight:	240kg
Screen Dimensions (WxHxD):	3020.95mm x 1805.95 mm x 35mm
Screen Dimensions (WxHxD) with wall mount:	3020.95mm x 1805.95 mm x 56mm
Packing Dimensions:	1800x850x745mm

STANDARD ACCESSORY

Napájecí kabel: 1

USB Cable (A-B): 1

Dálkové ovládání: 1

QSG: 1

Nástěnný držák: 1

Spare Parts: LED module*2(vary by country)
VOLITELNé PříSLUšENSTVí

Maintenance Tool: LD-MK-001

Stand: LD-STND-001

ViewBoard Cast Button(USB-C): VB-WPS-001

ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003

HDMI:	2, (HDMI 1.4, HDCP 1.4)
USB Typu A:	3, (USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet):	1
Wifi vstup:	2.4G/5Gn

HDMI out:	1, (HDMI 1.4, HDCP 1.4)
Reproduktor:	5W*2
Audio výstup (3,5 mm):	1
USB typu A (napájení):	Shared with USB input, (5V/1A1, 5V/0.5A2)

RJ45 (LAN control):	1(share with Internet)
USB Type A (Services):	1(share with USB A Input)
USB Type B (Debug):	1
RS232 (DB 9-pin female):	1
IR Receiver:	1

Napájecí kabel:	1
USB Cable (A-B):	1
Dálkové ovládání:	1
QSG:	1
Nástěnný držák:	1
Spare Parts:	LED module*2(vary by country)

Maintenance Tool:	LD-MK-001
Stand:	LD-STND-001
ViewBoard Cast Button(USB-C):	VB-WPS-001
ViewBoard Cast Button(USB-A+HDMI):	VB-WPS-003
