Komerční displeje
CDE4803
Klíčové Vlastnosti
- USB multimedia player
- vController software
- Hospitality mode
- Supports HDMI CEC pass-through
- Flicker-free and Blue Light Filter eye-care technologies
Produkt Popis

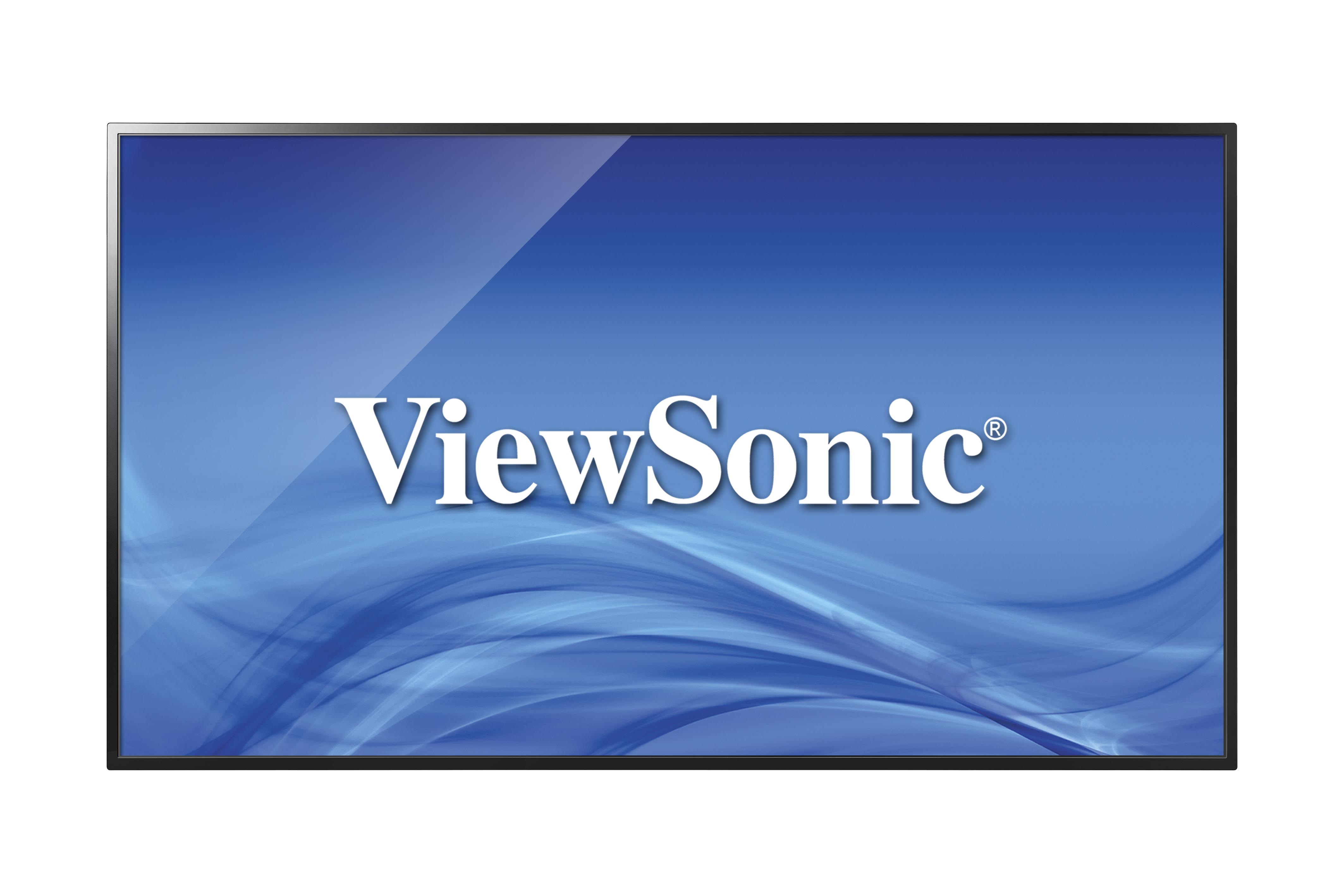

The ViewSonic CDE4803 is a great value, high performance 48’’ Full HD LED presenation display for hotel, restaurant and hospitality environments. In addition to versatile connectivity options, including HDMI, VGA, and SPDIF, the display comes with a simple and convenient USB multimedia playback functionality. With 1920x1080 resolution, 350-nit brightness, wide viewing angles and dual 10W stereo speakers, the slim-bezel CDE4803 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
Navštivte nás
- www.viewsonic.com
-
LCD PANEL
Velikost panelu: 48” Typ/Tech: TFT LCD Module with WLED Backlight Plocha displeje (mm): 1054.08(H) x 592.92 (V) (48” diagonal) Poměr stran: 16:9 Rozlišení: 1920 x1080 Colors: 1.06 Billion Colors Jas: 350 nits Kontrastní poměr: 4000:1 (typ.) Doba odezvy: 8 ms Zobrazovací úhly: H = 178, V = 178 (typ.) Backlight: LED Backlight Životnost podsvícení: 30,000 Hours (typ.) Povrchová úprava: Anti-Glare, 3H, Haze 2% (typ) -
INPUT
HDMI: x 2 RGB / VGA: x1 Audio: x1 RS232: x1 -
OUTPUT
Audio: x1 SPDIF: x1 IR Pass Through: x1 -
USB
Typ A: x1 -
REPRODUKTORY
10W x 2 -
COMPATIBILITY
RGB PC/HDMI PC: Up to 1920x1080 @60Hz. HDMI: 480i, 480p,720p, up to 1080p -
CONTROLS
Physical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting Auto sound, Equalizer, Balance, Reset sound settings Sleep timer, Date/Time. Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features Photo, Music, Movie 5°C to 40°C (Landscape) 20% ~ 80% non-condensing 0 meter to +3,000 meters (9842ft) above sea level -
POWER
Napětí: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Spotřeba: "On": Max 149 W, 115 W(Default) "Off"(Suspend): ≤ 0.5 W -
ERGONOMICS
Wall Mount (VESA® ): 200x200mm / 400x400mm ; Screw: M6*8 mm -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Vlhkost: 20% ~ 80% non-condensing -
DIMENSIONS (W X H X D)
Physical w/ stand (inch / mm): 42.59 x 26.11 x 12.98 / 1081.8 x 663.1 x 329.6 Physical w/o stand (inch / mm): 42.59 x 24.54 x 2.36 / 1081.8 x 623.4 x 59.9 Balení (palce / mm): 46.93 x 30.43 x 6.73 / 1192 x 773 x171 -
WEIGHT
Net w/ stand (lb / kg): 29.52 / 13.39 Net w/o stand (lb / kg): 25.40 / 11.52 Hrubá hmotnost (lb / kg): 34.83 / 15.8 -
WARRANTY
**Warranty offered may differ from market to market -
WHAT'S IN THE BOX?
1. CDE4803 presenation display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable 7. RS232 *Actual content may differ from market to market
