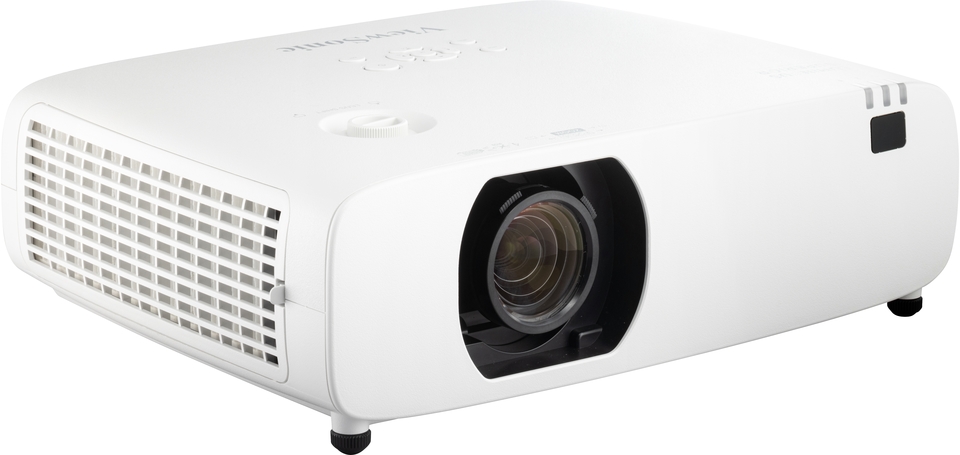

LSC520WU

5,200 ANSI Lumens WUXGA Laser Installation Projector

  • 5,200 ANSI Lumens offering bright images in any environment
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: V lens shift, 1.6x optical zoom, and H/V keystone correction
  • 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Centralized LAN control for efficient management
Poptávka po prodeji  Sdílet

POPIS

The LSC520WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC520WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues

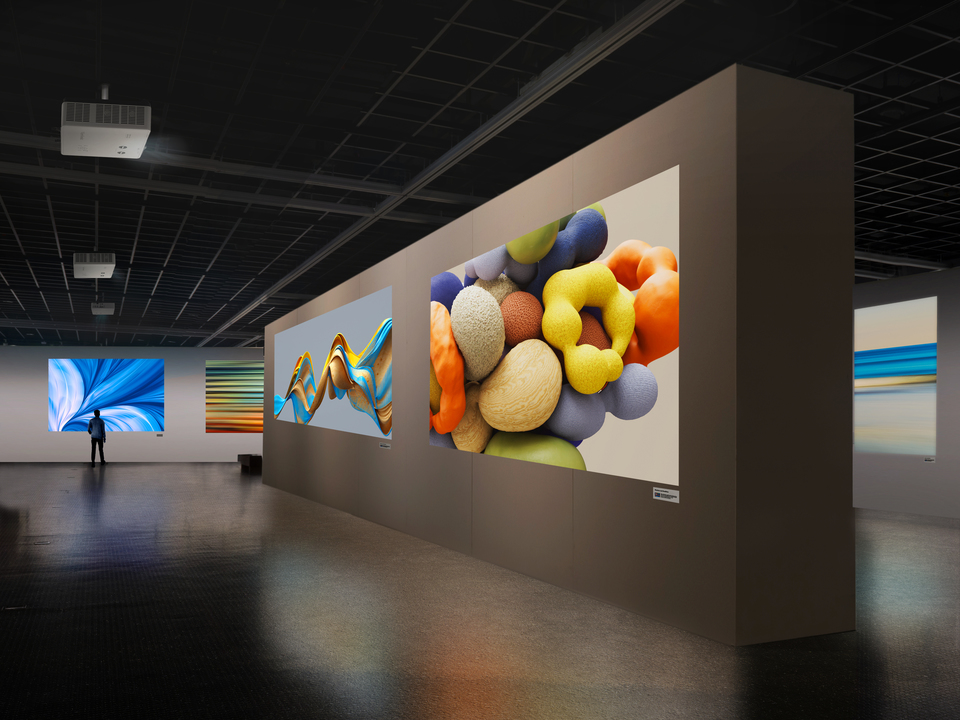

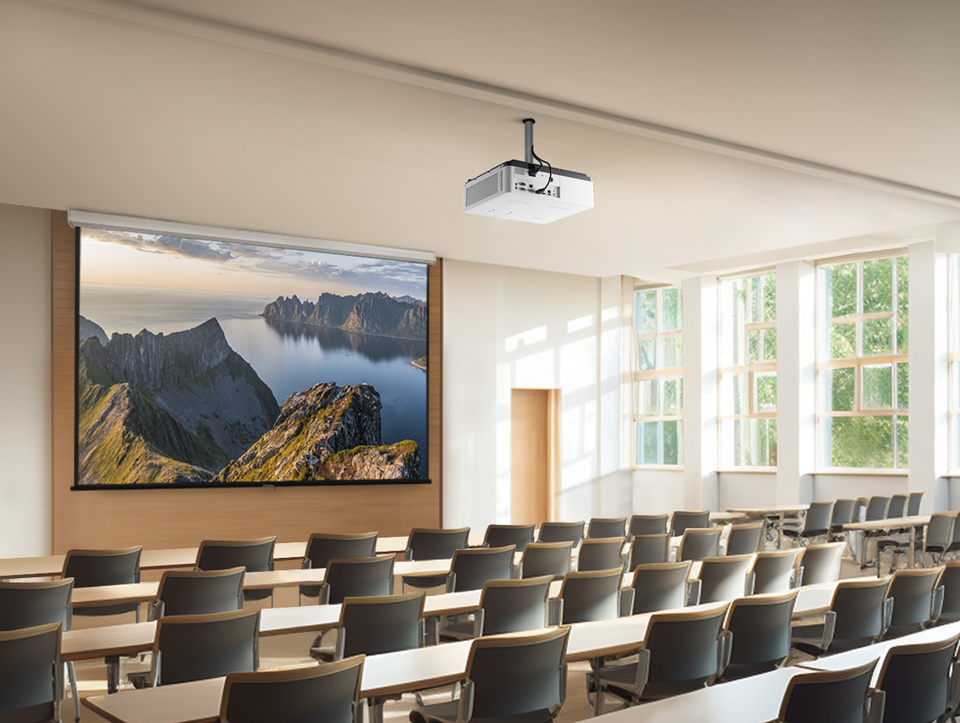

Delivering 5,200 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
5,200 ANSI Lumens
Bright Images for Large Venues 1

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to 300”
Ultra-large Screen with Lower Cost-per-inch 1

Next-Gen Meeting Experience with 21:9 Aspect Ratio

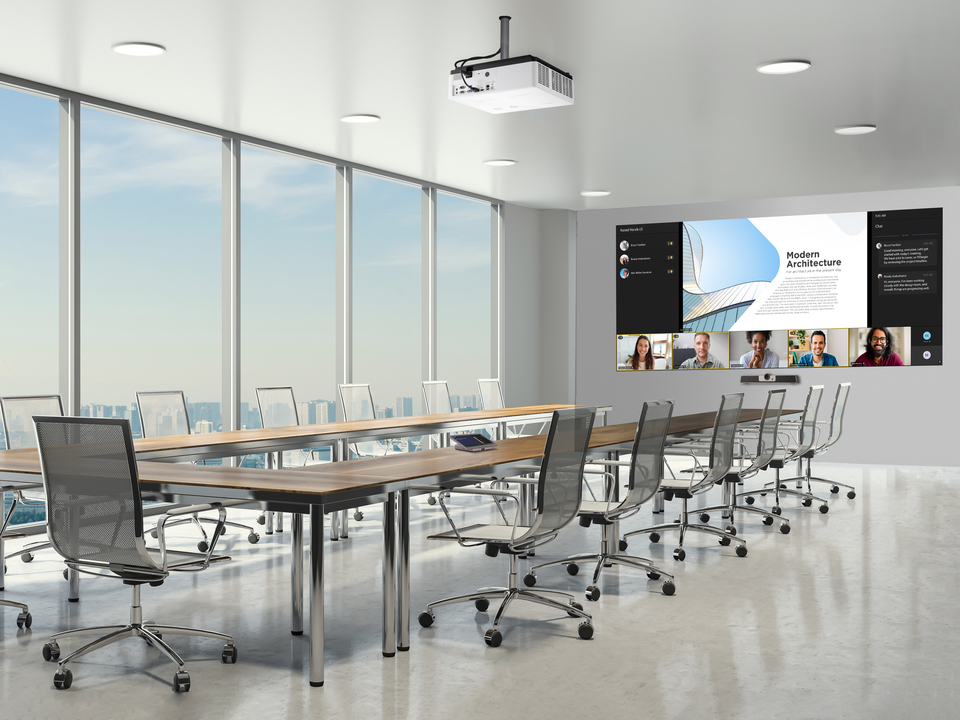

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
Next-Gen Meeting Experience with 21:9 Aspect Ratio 1

Adaptable to Any Environment

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
V Lens Shift, Keystone Correction, 1.6x Optical Zoom
Adaptable to Any Environment 1

Bright, Compact, Durable

The projector incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright, Compact, Durable 1

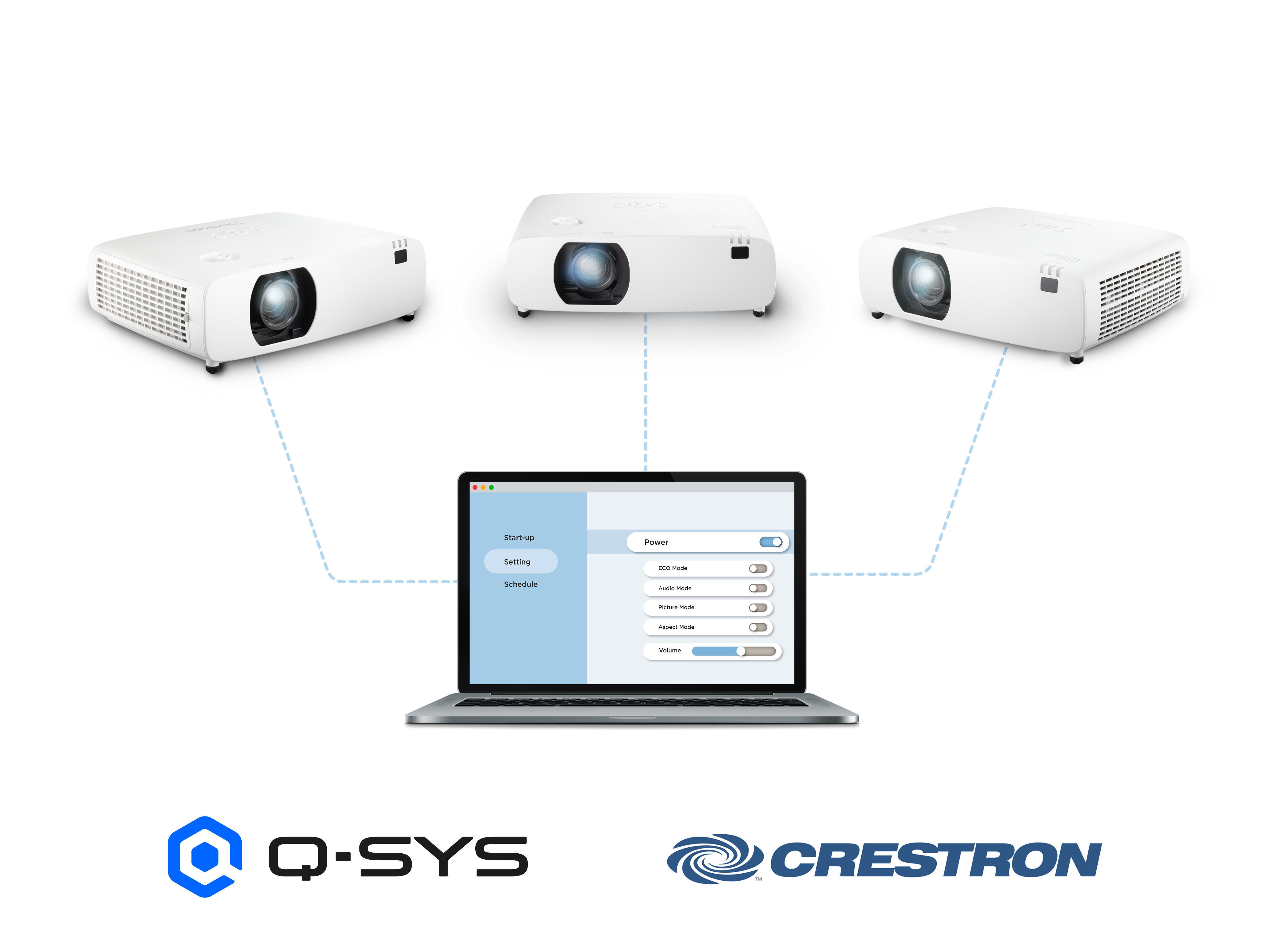

Centralized Control for Management Efficiency

The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

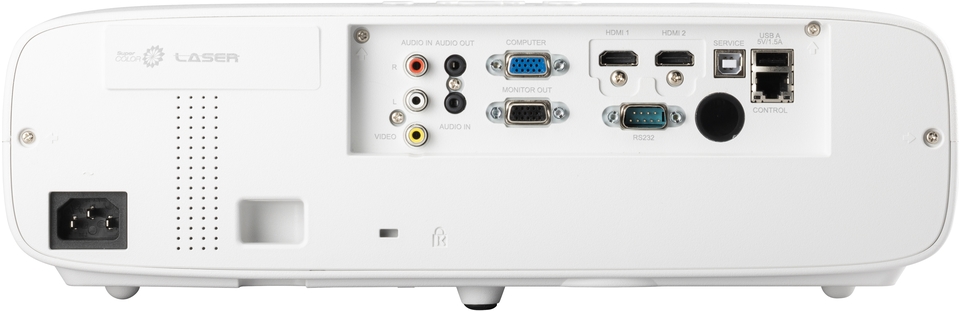

Dimension & I/O Ports

  1. Zoom Ring
  2. Focus Ring
  3. Front IR
  4. AC In
  5. Audio In
  6. Video
  7. Audio In (L)
  8. Audio In (R)
  9. Audio Out
  10. Computer
  11. Monitor Out
  12. HDMI x2
  13. Service
  14. USB-A (5V/1.5A)
  15. RJ45
  16. RS232
  17. LED Indicator
  18. Keypad
  19. Lens Shift Control Knob

SPECIFIKACE


  • Specifikace
    Projekční systém: 3LCD (3x0.64" with MLA)
    Nativní rozlišení: 1920x1200
    Jas: 5200 (ANSI Lumens)
    Brightness (Center Lumens): 6000
    Kontrastní poměr: 3000000:1
    Display Color: 1.07 Billion Colors
    Typ světelného zdroje: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Objektiv: F=1.58-2.02, f=15.3-24.6mm
    Posun projekce: 0%+/-5%
    Projekční poměr: 1.08-1.76
    Optický zoom: 1.6X
    Digital Zoom: 1.0x-4.0x
    Velikost obrázku: 30"-300"
    Projekční vzdálenost: 0.70-11.37m
    (100"@2.33m)
    Keystone: H:+/-30° , V:+/-30°
    Posun objektivu V. Rozsah: +45%, 0%
    Hlučnost (Normal): 35dB
    Hlučnost (Eco): 26dB
    Vstupní zpoždění: 60ms
    Podpora rozlišení: VGA(640 x 480) to 4K(3840 x 2160@30Hz)
    Kompatibilita s HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz
    Horizontální frekvence: 15K-100KHz
    Vertikální rychlost snímání: 23-85Hz
  • Vstup
    Počítač v (sdílet s komponentem): 1
    Kompozitní: 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio vstup (3,5 mm): 1
    Audio vstup (RCA R/L): 1
    USB Typu A: 1 (5V/1.5A)
  • Výstup
    Monitor out: 1
    Audio-out (3.5mm): 1
    Reproduktor: 16W
    USB typu A (napájení): 1
    (USB2.0 - 5V/1.5A,
    share with USB A Input)
