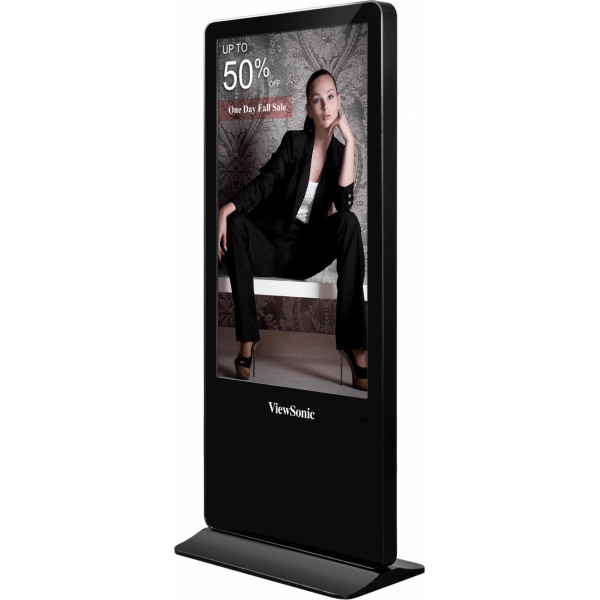

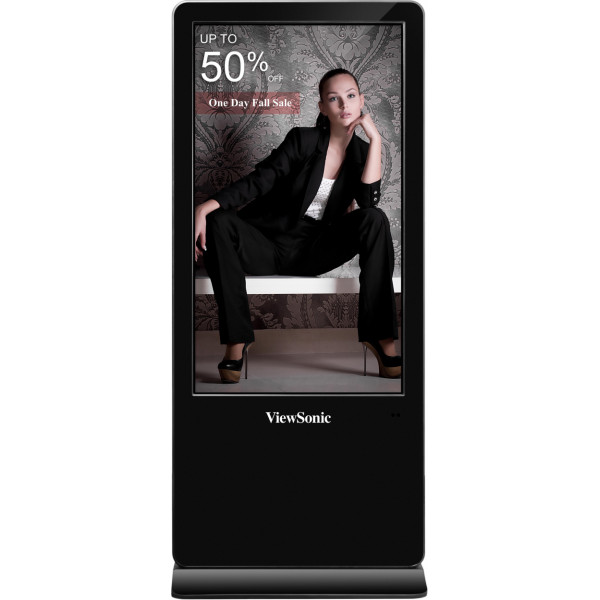

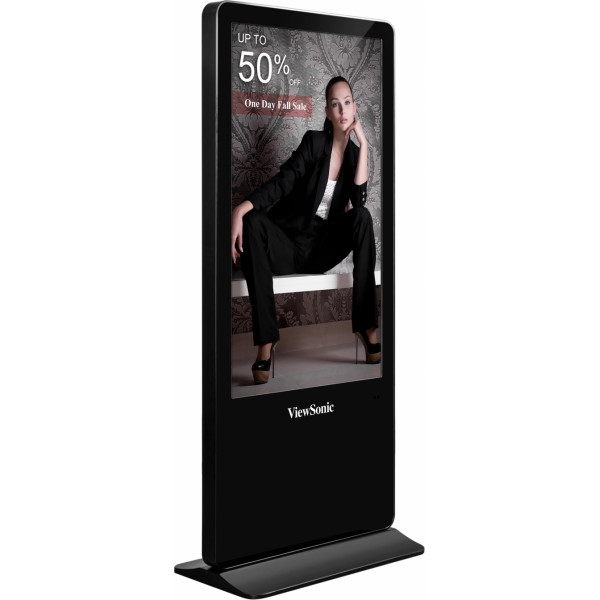

EP5520T

55 inch Touch All-in-one Digital ePoster

LCD PANEL
Velikost panelu: 55" (55'' diagonal)
Typ/Tech: TFT LCD Module with direct type white LED
Plocha displeje (mm): 1209.6(H) x 680.4(V)
Poměr stran: 16:09
Rozlišení: 1920 x 1080
Colors: 16.7M colors
Jas: 350 nits (typ.)
Kontrastní poměr: 4000:1 (typ.)
Doba odezvy: 8ms (typ.)
Zobrazovací úhly: Up and Down 178°, Left and Right 178° (min.)
Backlight: LED
Životnost podsvícení: 30,000 Hours (typ.)
Hardness: 7H
TOUCH
Typ/Tech: Infrared
Dotykové rozlišení: 32768 x 32768
Dotykový bod: 10 point
Response time: single point ≦ 7ms
multi-point ≦ 13ms
System: Windows 10/Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
INPUT
HDMI: x 2
RGB / VGA: x 1
Audio: x1 (3.5mm jack)
RS232: x 1

OUTPUT
Audio: x 1
LAN
RJ45: x1
USB
Typ A: x3 (USB2.0 x 1, USB3.0 x 2)
Typ B: x 1 (for touch module)
REPRODUKTORY
10W x2

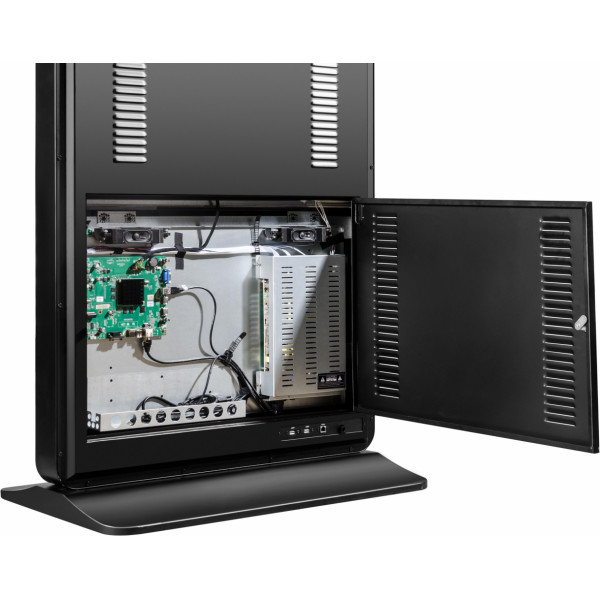

BUILT-IN PC
Procesor: MSD828
Graphic: Quad-core Mali450 GPU
Sound card: TPA3118
Paměť: 2GB DDR3-1866 SDRAM
Úložný prostor: eMMC 16GB
COMPATIBILITY
HDMI (1080p): Up to 1080p @ 60Hz
POWER
Napětí: 100-240VAC +/- 10% Wide Range
Spotřeba: 115W (typ.)
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C)
Vlhkost: 20% ~ 80% non-condensing
DIMENSIONS
(W x H x D)
Fyzicky (palce / mm): 820 x 1900 x 450 mm / 32.28 x 74.80 x 17.72 in.
Balení (palce / mm): 983 x 2016 x 618 mm / 38.70 x 79.37 x 24.33 in.
WEIGHT
Čistá hmotnost (lb / kg): 68 kgs / 149.91 lbs
Hrubá hmotnost (lb / kg): 83 kgs / 182.98 lbs
WARRANTY
**Warranty offered may differ from market to market
What's in the box?
1. Power Core
2. Remote control with battery
3. Quick Start Guide
4. User Guide CD
5. Key

*Actual content may differ from market to market
