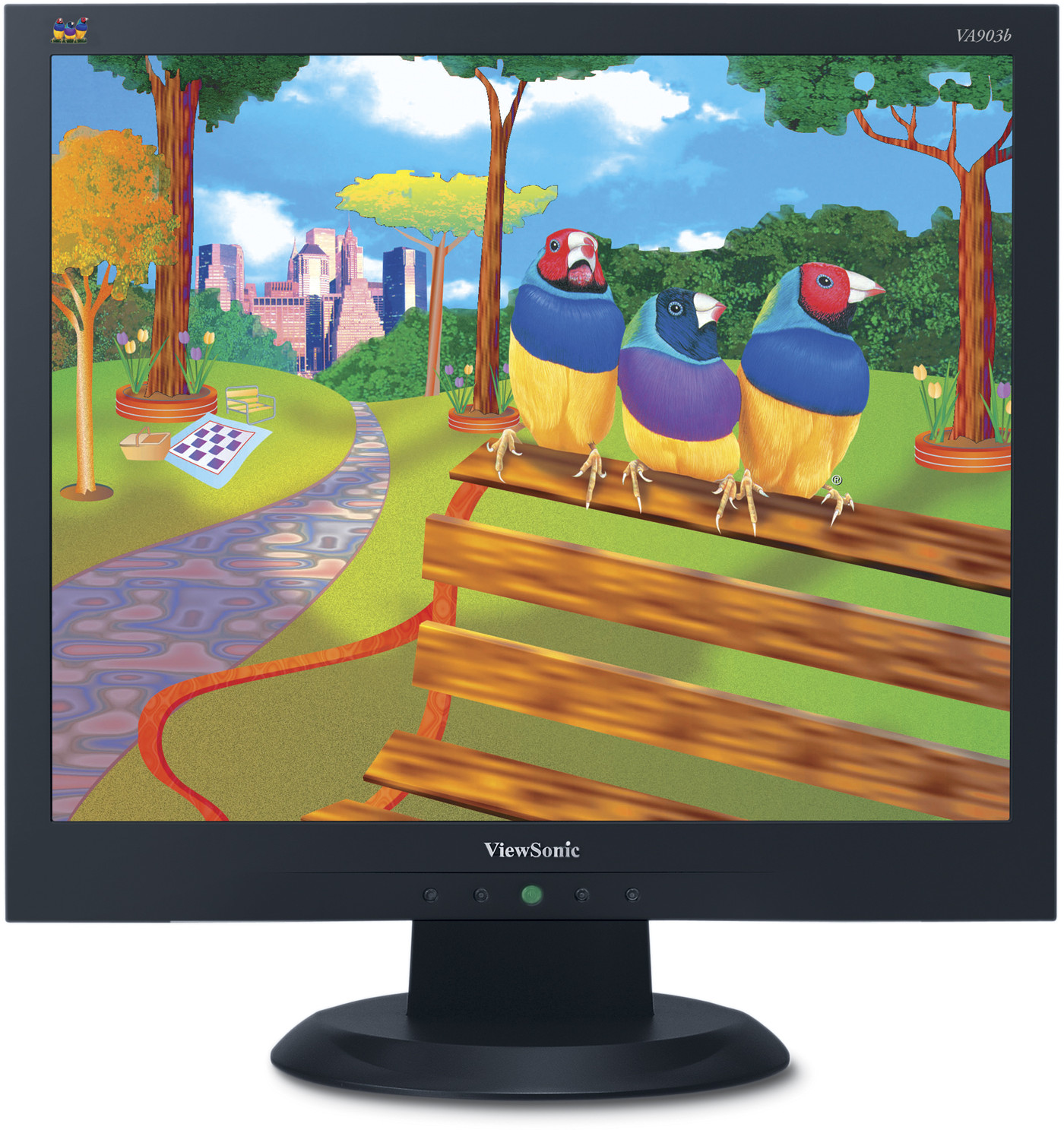

ViewSonic VA903b 48cm / 19" VA SERIES LCD MONITOR - ViewSonic Schweiz, Suisse, Svizzera, Svizra

COLORS

Black

LCD

Typ:	19” TN colour TFT active matrix SXGA LCD
Kontrastverhältnis:	700:1 (typ.)
Betrachtungswinkel:	150° horizontal, 135° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Helligkeit:	300 cd/m² (typ.)
Anzeigefläche:	37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimale Auflösung:	1280 x 1024@60Hz
Reaktionszeit:	5ms (off-on-off) (typ.)
Lichtquelle:	Long life, 50000 hrs. (typ.)
Panel-Oberfläche:	Anti-glare (3H)
Pixelabstand:	0.294mm
Farbtiefe:	16.7M colours supported (6-bit + 2-bit FRC)
Pixeltakt:	135MHz

KOMPATIBILITäT

PC: VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
ABMESSUNGEN

B x H x T: 416 x 428 x 210 (with stand)
ZERTIFIKATE

TCO’03, CE, CB, GS, Ergo, ISO13406-2, (pixel failure class II), UL/cUL, ENERGY STAR, FCC-B, NOM, GOST-R, BSMI, CCC, (PSB), (C-TICK), Green Mark, WEEE, RoHS
LIEFERUMFANG

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
GARANTIE

Three-year limited warranty on parts, labor and backlight
ANSCHLüSSE

Analog: 15-pin mini D-Sub (attached cable)

Stromversorgung: 3-pin AC plug (CEE22)
STROMVERSORGUNG

Spannung: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Verbrauch: <35 watt (max.), <1 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup
menu (language [English, Finnish, French German, Italian, Japanese, Spanish Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

BETRIEBSBEDINGUNGEN

Temperatur: 0°C – 40°C

Feuchtigkeit: 10% – 90% (non-condensing)
GEWICHT

Netto: 4.6kg (with stand)

Brutto: 5.8kg
VIDEOEINGANG

Frequenz: Fh: 30 – 82kHz,
Fv: 50 – 85Hz

Synchronisierung: H/V separated (TTL)

Analog: RGB analogue (0.7 Vp-p, 75 ohm)
SICHERHEIT

Kensington® security port
WANDHALTERUNG

VESA FDMI 100mm x 100mm
ERGONOMIE

Neigung: Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)

Analog:	15-pin mini D-Sub (attached cable)
Stromversorgung:	3-pin AC plug (CEE22)

Spannung:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Verbrauch:	<35 watt (max.), <1 watt in power save mode

Temperatur:	0°C – 40°C
Feuchtigkeit:	10% – 90% (non-condensing)

Frequenz:	Fh: 30 – 82kHz, Fv: 50 – 85Hz
Synchronisierung:	H/V separated (TTL)
Analog:	RGB analogue (0.7 Vp-p, 75 ohm)

Netto:	4.6kg (with stand)
Brutto:	5.8kg
