LCD-TV

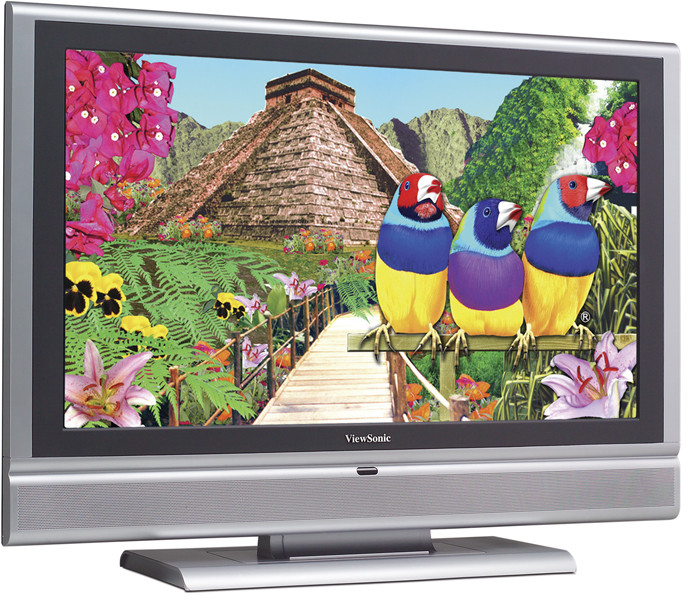

N4066w
Wichtigste Eigenschaften
Produktübersicht
Besuchen Sie uns
- www.viewsonic.com
-
LCD
Typ: 40” S-PVA colour TFT active matrix, wide 1366 x 768 Kontrastverhältnis: 1200:1 (typ.) Betrachtungswinkel: 178° horizontal, 178° vertical (at 10:1) Helligkeit: 500cd/m² (typ.) Anzeigefläche: 88.5cm (horizontal) x 49.8cm (vertical), 102cm diagonal Reaktionszeit: 8ms (grey-to-grey) Bildformat: 16:9 native (4:3, 16:9 zoom, 14:9 switchable) Panel-Oberfläche: Anti-glare 3H -
KOMPATIBILITäT
PC: Compatible from 640 x 480 up to 1360 x 768, 1280 x 1024 @ 60Hz preferred Mac®: Power Mac™ up to 832 x 624 -
LIEFERUMFANG
LCD TV, 1.8m power cables (Europe [Schuko]/UK), 1.8m AV cable, 1.8m SCART cable, remote control, batteries, quick start guide, user guide (multi-language) -
AUDIO
Lautsprecher: 2 x 10 watts SRS WOW -
ANSCHLüSSE
Audioausgang: 1 x L/R RCA set Composite-Videoeingang: 1 x RCA (CVBS) Audioeingang: 1 x L/R RCA set (Composite/S-video)
1 x L/R RCA set (digital video)
1 x 3.5mm mini stereo jack (PC)S-Video: 1 x 4-pin mini DIN jack Kopfhörer: 1 x 3.5mm mini stereo jack SCART: 3 x SCART (CVBS In/Out, RGB In, S-Video In, Audio In/Out) Stromversorgung: 3-pin plug (CEE22) Component-Video: 1 x RCA set (YPbPr/YCbCr) -
STROMVERSORGUNG
Spannung: AC 100 – 240V, 50/60Hz (auto switch); internal, fanless power supply Verbrauch: 260 watt (typ.) -
BEDIENUNGSELEMENTE
Grundausstattung: Power, source, menu, channel up/down, volume up/down Erweiterte Optionen: Input resolution, black level expansion, gamma selection, scan mode, scan conversion, film mode, IR control, monitor ID, tiling, date/time, schedule, DDC/CI, advanced option reset OSD: Video Menu (picture mode, contrast, brightness, saturation, tint, sharpness, NR), Audio Menu (volume, balance, equaliser, treble, bass, sound mode, SRS, HDMI audio In), Screen Menu (display mode, H. size, H/V position, phase, default, auto sync, colour temperature), Setup Menu (tuning, programme table, auto search, DTV) Tuning Sub Menu (programme number, fine tuning, channel name, frequency, TV system, manual search, skip), Programme Table Sub menu (channel name), Auto Search Sub Menu (country, auto search), DTV Sub Menu (system setting, channel settings, channel list, parent control, time setting, software version), Options Menu (language, sleep timer, menu background, source info, reset, PC display), power lock -
BETRIEBSBEDINGUNGEN
Temperatur: 0°C – 40°C Feuchtigkeit: 10% – 80% (non condensation) -
GEWICHT
Netto: 33kg (with base) Brutto: 40kg -
WANDHALTERUNG
VESA FDMI 200mm x 100mm, 200mm x 130mm, 200mm x 200mm, M6 screws -
VIDEOEINGANG
PAL (B/G, D/K, I), SECAM (L), NTSC³ SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T -
VIDEOTEXT/MHEG5
Yes (1000 pages)/-
