LS740W - 5,000 ANSI Lumens WXGA Laser Installation Projector

  • Long-lasting Laser Phosphor Light Source
  • Bright Images in Large Spaces
  • See the Bigger Picture with a 300" Screen
  • Reduced Weight and Size
  • Convenient Mounting Flexibility
  • Eco-Friendly
$999.99 USD
Downloads
Datasheet Media
Add to Compare
Comparison Sheet(PRG)

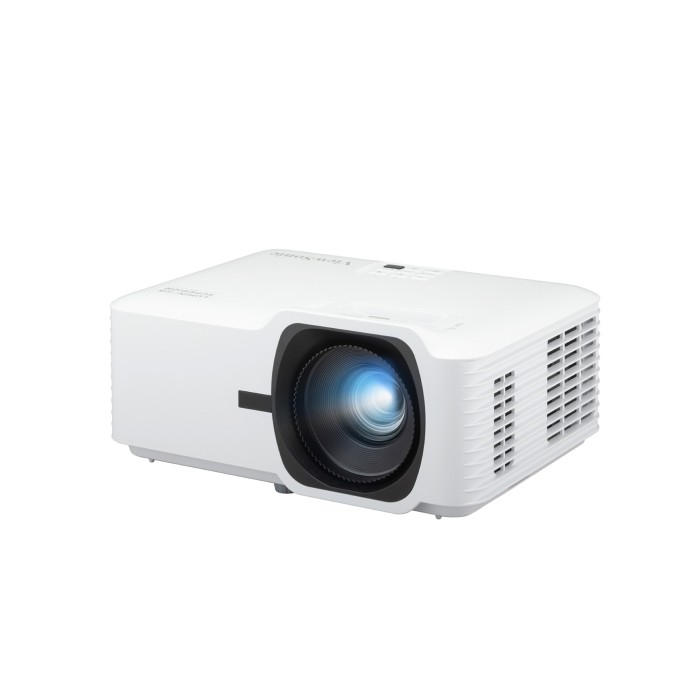

main product photo

Product Overview

With the ViewSonic® LS740W laser projector, you can light up every room with brilliant presentations. Featuring the latest laser phosphor technology, the LS740W projector delivers 5,000 ANSI lumens of brightness to ensure crisp images even in rooms with ambient lighting. Enjoy a maintenance-free projection experience without having to deal with complicated lamp replacements. This eco-friendly, high brightness projection solution features a compact design for easier transportation. Experience screen sizes up to 300” in WXGA 1280x800 resolution for show-stopping images designed to fill up boardrooms, lecture halls, auditoriums and other public spaces. The LS740W laser projector comes loaded with features like 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection and portrait mode for easy setup and versatile applications.
30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size

Long-lasting Laser Phosphor Light Source

Designed with a sealed optical engine and the latest laser phosphor light source (designed to last up to 30,000 hours*), this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.

*Light source lifespan may vary based on actual usage and other factors.

30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size

Bright Images in Large Spaces

Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size

See the Bigger Picture with a 300" Screen

Enjoy breathtaking images on an ultra-large screen capable of reaching up to 300". This state-of-the-art projector has a lower cost-per-inch compared to commercial displays.

30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size

Reduced Weight and Size

This projector weighs 35% less and is 35% more compact compared to its predecessors. Enjoy easier transporation and installation.

30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size

Convenient Mounting Flexibility

A 1.3x optical zoom lens provides more mounting flexibility over a standard lens so you can place your projector where you want and still get big, vivid images. For a perfectly proportioned picture every time, horizontal/vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images.

30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size30000 hours, 20% more brightness, 8% more heat resistant, 20% smaller size

Eco-Friendly

With a state-of-the-art lamp-free light source, this energy-efficient projector consumes up to 51% less power than some competing projectors.

Reliable 24/7 Operation

Featuring a long lifespan, this professional-grade projector is designed for reliable, extended use.

High Native Contrast Ratio

Experience deeper blacks and brighter whites thanks to a state-of-the-art Texas Instruments .65" DMD chip. This high native contrast ratio lets you enjoy greater visual depth, clearer images and enhanced legibility.

Vibrant Colors

Impress audiences with ViewSonic’s exclusive SuperColorTM technology and take presentations to the next level with true-to-life color enhancements.

USB-A Power Supply

The built-in 5V/1.5A USB-A output conveniently delivers power to a wireless HDMI dongle, eliminating the need for separate power adapters when streaming multimedia content.

  • Light Source: Laser
  • Display Resolution: WXGA (1280x800)
  • Display Resolution: 1280 x 800
  • Brightness (Lumens): 5,000 ANSI
  • Throw Distance: 0.77-9.98m (100"@2.54m)
  • Throw Ratio: 1.18-1.54
  • Keystone: Vertical (± 30º) / Horizontal (± 30º)
  • Lens: 1.3x optical zoom
  • Light Source (watt): Laser
  • Light Source Life, Normal (hours): 20000
  • Light Source Life, Dynamic Eco-Mode (hours): 30000
  • Color Depth: 1.07 Billion Colors
  • Aspect Ratio: 16:10
  • Input Lag: 37ms
  • Frequency Horizontal: 15K-102KHz
  • Frequency Vertical: 24-120Hz
  • PC Resolution (max): 1920 x 1200
  • PC Resolution (min): 640 x 480
  • Mac® Resolution (max): 1920 x 1200
  • Mac® Resolution (min): 640 x 480
  • USB 2.0 Type A: 1
  • 3.5mm Audio Out: 1
  • Control (RS232): 1
  • HDMI 1.4 (with HDCP 1.4): 2
  • Internal Speakers: 15W (x1)
  • Voltage: 100-240V+/- 10%, 50/60Hz AC
  • Consumption (max): 210W
  • Stand-by: <0.5W
  • Physical Controls: Keypad, Power key
  • On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
  • Temperature: 32-104º F (0 - 40º C)
  • Net (lbs): 6.6
  • Gross (lbs): 10.4
  • Net (kg): 3.0
  • Gross (kg): 4.7
  • Packaging (in.): 15.7 x 11.0 x 6.1
  • Physical (in.): 11.3 x 8.5 x 5.0
  • Packaging (mm): 400.0 x 280.0 x 155.0
  • Physical (mm): 286.0 x 216.0 x 129.0
  • Regulations: cTUVus
  • Package Contents: LS740W projector, power cable, remote control, Quick Start Guide
  • Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
  • Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
  • Notices: *Product and light source lifespan may vary based on actual usage and other factors. **Express Exchange(R) Service requires product registration. Program, pricing, specifications and availability are subject to change without notice. Copyright(R) 2023.
  • Light Source: Laser
  • Display Resolution: WXGA (1280x800)
  • Display Resolution: 1280 x 800
  • Brightness (Lumens): 5,000 ANSI
  • Throw Distance: 0.77-9.98m (100"@2.54m)
  • Throw Ratio: 1.18-1.54
  • Keystone: Vertical (± 30º) / Horizontal (± 30º)
  • Lens: 1.3x optical zoom
  • Light Source (watt): Laser
  • Light Source Life, Normal (hours): 20000
  • Light Source Life, Dynamic Eco-Mode (hours): 30000
  • Color Depth: 1.07 Billion Colors
  • Aspect Ratio: 16:10
  • Input Lag: 37ms
  • Frequency Horizontal: 15K-102KHz
  • Frequency Vertical: 24-120Hz
  • PC Resolution (max): 1920 x 1200
  • PC Resolution (min): 640 x 480
  • Mac® Resolution (max): 1920 x 1200
  • Mac® Resolution (min): 640 x 480
  • USB 2.0 Type A: 1
  • 3.5mm Audio Out: 1
  • Control (RS232): 1
  • HDMI 1.4 (with HDCP 1.4): 2
  • Internal Speakers: 15W (x1)
  • Voltage: 100-240V+/- 10%, 50/60Hz AC
  • Consumption (max): 210W
  • Stand-by: <0.5W
  • Physical Controls: Keypad, Power key
  • On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
  • Temperature: 32-104º F (0 - 40º C)
  • Net (lbs): 6.6
  • Gross (lbs): 10.4
  • Net (kg): 3.0
  • Gross (kg): 4.7
  • Packaging (in.): 15.7 x 11.0 x 6.1
  • Physical (in.): 11.3 x 8.5 x 5.0
  • Packaging (mm): 400.0 x 280.0 x 155.0
  • Physical (mm): 286.0 x 216.0 x 129.0
  • Regulations: cTUVus
  • Package Contents: LS740W projector, power cable, remote control, Quick Start Guide
  • Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).
  • Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
  • Notices: *Product and light source lifespan may vary based on actual usage and other factors. **Express Exchange(R) Service requires product registration. Program, pricing, specifications and availability are subject to change without notice. Copyright(R) 2023.
