Product Overview

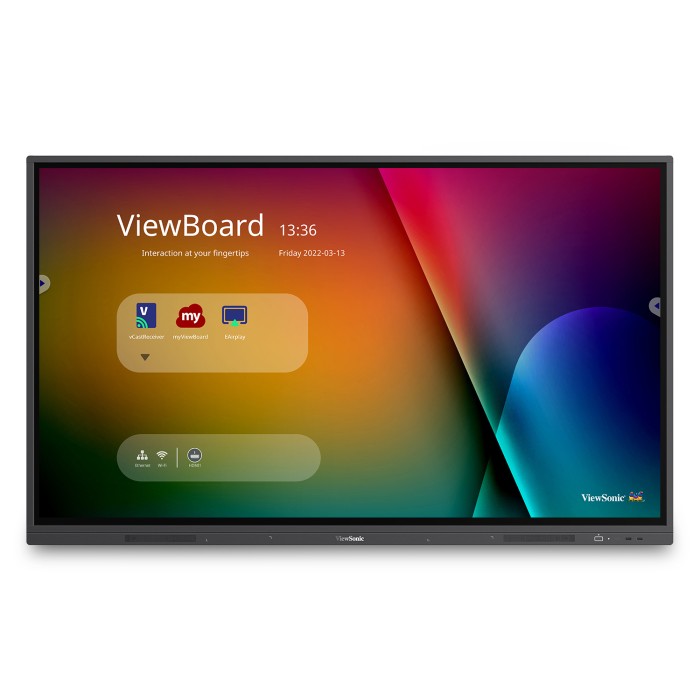

The ViewSonic^® ViewBoard^® IFP6532 is a 65” interactive flat panel display with digital whiteboard technologies for immersive learning in any classroom environment. With a high-accuracy touchscreen, the IFP6532 delivers an intuitive digital whiteboard experience for everyone from the youngest of students to the most experienced teachers. Featuring 4K Ultra HD resolution and a powerful 10W stereo speaker, this ViewBoard display delivers optimal images and sound for everyone in the classroom as well those learning remotely. With the integrated myViewBoard™ software ecosystem, this ViewBoard display enables teachers to access legacy files from the cloud, as well as build new interactive lessons. IT directors will be confident managing files from a secure cloud network, while curriculum directors will be pleased knowing that this software easily integrates with online resources.

Overview

20-point Multi-touch Interactive Screen

With a 20-point touch-enabled panel, this display encourages multiple users to simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

myViewBoard^™ Digital Whiteboarding Solution

myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.

ViewBoard Cast Content Sharing Software

ViewBoard Cast enables content streaming from mobile devices onto a ViewSonic display over wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic display. Multi-screen casting allows up to nine client screens to be shown on the ViewSonic display. Popular platforms such as Windows, Mac, iOS-Airplay, Android, and Chrome are supported.

Awards

Specifications

OS: ViewBoard OS based on Android 9.0
GPU: ARM Mali-G31
CPU: Amlogic T972 quad-core Cortex-A55, 12nm
Memory: 4GB DDR4
Storage: 32GB eMMC
Internal Speakers: 10W (x2)
HDMI 2.0 In: 2
VGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
USB 2.0: 4
USB 2.0 Type B: 1
OPS PC Slot: 1
RS232: 1
WIFI Module Slot: 1
Intel® OPS Slot In (80-pin): 1
Voltage: 164-264V
Consumption (typical): 175W
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 10-90%
Tip Detection: Dual tips, 3mm and 9mm
OS Support: Windows 7/ 8/10/11, MacOS 10.8 or later, Linux kernel 3.5 or later
Touch Points: Windows: 20, Android: 20
Touch Technology: Infrared
Net (lbs): 84.4
Gross (lbs): 101.4
Net (kg): 38.3
Gross (kg): 46
Packaging (in.): 64 x 8.2 x 39.5
Physical (in.): 58.6 x 35.3 x 3.4
Packaging (mm): 1628 × 208 × 1005
Physical (mm): 1489 × 897 × 87
Screw Size: M8
VESA Compatible: 600 x 400 mm
Ethernet LAN: (10/100/1000M) (Android & PC)
Wifi: Optional VB-WIFI-002 adapter, 802.11AC + Bluetooth 5.0
Screen Size: 65
Viewable Area (in.): 64.5
Point technology: 20-Point
Backlight Life (Hours): 30,000
Viewing Angles: 178º horizontal, 178º vertical
Display Resolution: 3840 x 2160
Response Time (Typical GTG): 6.5ms
Aspect Ratio: 16:9
Dynamic Contrast Ratio: 4,000:1
Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25%
Light Source: LED
Brightness: 350 cd/m2
Refresh Rate: 60Hz
