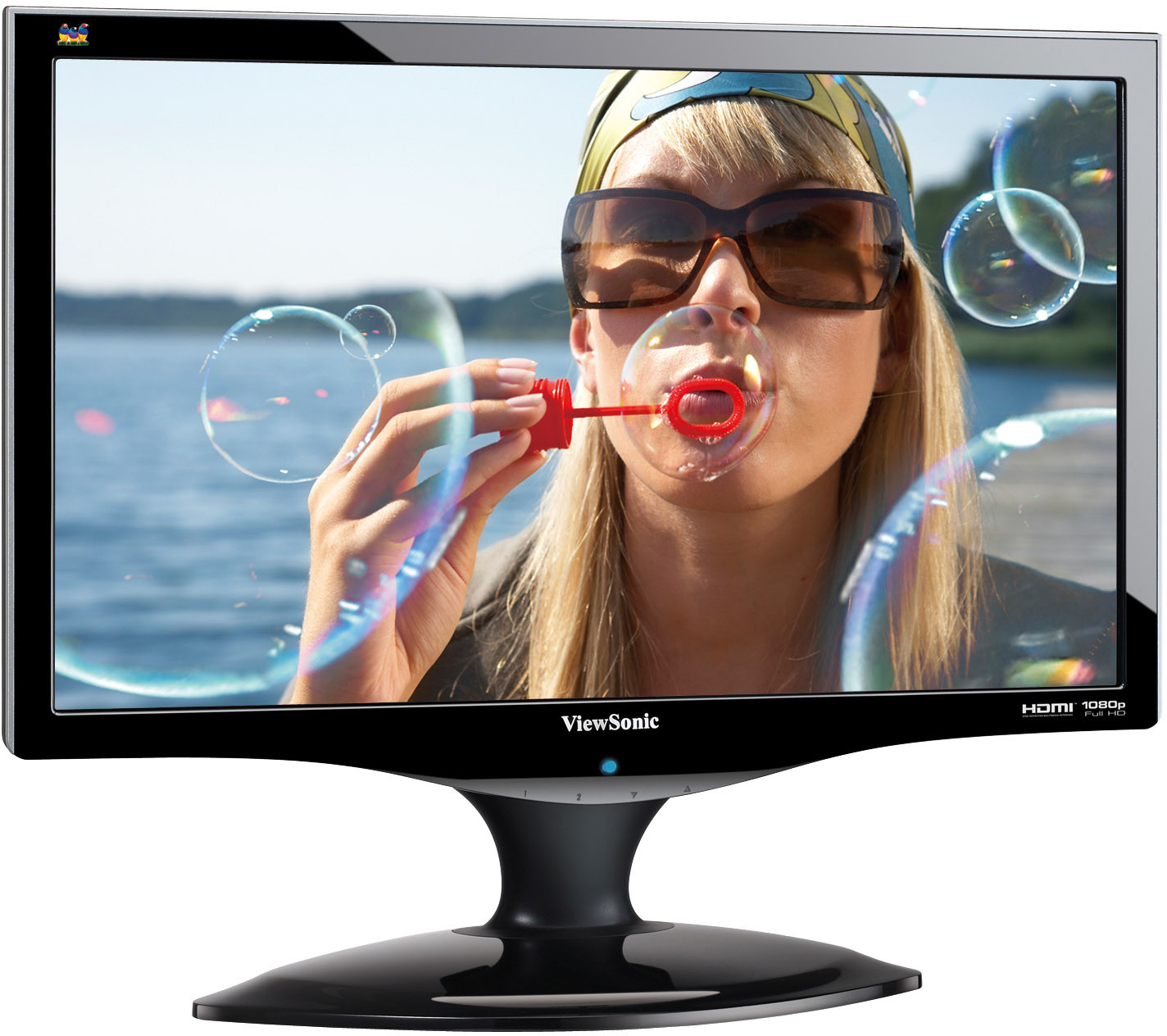

ViewSonic VX2260wm 56cm / 22" (21.5 viewable) 16:9 WIDESCREEN LCD WITH FULL HD 1080p RESOLUTION

Toets Features

Product Omschrijving

Optimize your desktop experience with ViewSonic’s full HD 1080p 56cm / 22" (21.5” viewable) VX2260wm widescreen LCD. Encased in a glossy black bezel, this monitor delivers beautiful HD images. Connect your game console or DVD player through the HDMI input and enjoy HD content on your desktop. High brightness and super-fast 2ms video response and ultra-high 20,000:1 dynamic contrast ratio deliver brilliant, blur-free images with incredible definition and detail. Completing the multimedia desktop experience are integrated stereo speakers with SRS WOW HD stereo sound. The Eco-mode function can save up to 40% on energy costs. The VX2260wm is ideal for the discriminating gamer or professional who demands top-of-the-line images and performance.

Bezoek Gebruikers

www.viewsonic.com

COLORS

Black

LCD

Type:	55 cm / 21.5" wide Color TFT Active Matrix LCD
Contrastverhouding:	1000:1 (typ.) ; 20000:1 dynamic
Kijkhoeken:	170° (H), 160° (V) at 10:1 c/r / 170° (H), 170° (V) at 5:1 c/r
Helderheid:	300cd/m² (typ.)
Display Area:	47.50 cm (18.7") (H) × 26.67 cm (10.5"）(V) /54.6cm (21.5") diagonal
Optimum Resolution:	1920x1080 WUXGA
Reactietijd:	5ms (on/off) ; 2ms (G to G)
Lichtbron:	Long life, 50,000 hrs. (typ)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.248mm (H)×0.248mm (V)
Colour Support:	16.7 M (6-bits + Hi FRC)

COMPATIBILITY

PC: up to 1920×1080 non-interlaced

Mac®: Power Mac, up to 1920×1080
DIMENSIONS

Physical With Stand: 513mm x 410mm x 208mm (20.2" x 16.1" x 8.2")

Physical Without Stand: 512mm x 330mm x 56mm (20.2" x 13.0" x 2.2")
VERPAKKINGSINHOUD

ViewSonic VX2260wm LCD, VGA cable, DVI cable, Audio cable, Power cable, Quick Start Guide, ViewSonic Wizard CD
AUDIO

Speaker: 2 x 1.5 watt with SRS WOW sound
RECYCLE/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.

INPUT

Sync:	Separate Sync / Composite Sync / SOG
Analogue:	RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital:	DVI-D (TMDS, 100ohms, with HDCP), HDMI (ver.1.3)
Frequency:	Fh: 24-83kHz, Fv: 50-76Hz

CONNECTOR

Analogue: 15 pin mini D-sub×1

Digital: DVI-D (with HDCP) / HDMI

Audio (input/output):
3.5 mm Audio line-in / 3.5 mm Audio line-out

Stroom: 3-pin AC plug (CEE22)
POWER

Spanning: AC 100-240V (Universal); 50/60Hz (Switch)

Consumptie: 40 (typ)

Eco Mode: Optimize 34W (typ.) / Conserve 27W (typ.)

Save mode: ≦1W

CONTROLS

Basic:

[1], [2], Power, Down, Up

On View (PC mode):

Auto image adjust, Contrast/Brightness, Input select: D-SUB, DVI, HDMI PC, HDMI AV, Audio adjust: Volume, mute, Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color [R, G, B], Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, response time, aspect ratio, display mode, Eco mode, Setup menu: language, resolution notice, OSD position, OSD timeout, OSD background, sleep, Memory recall

OPERATING CONDITIONS

Temperatuur: 32–104ºF (0–40ºC)

Luchtvochtigheid: 20–90% (non-condensed)
WEIGHT

Netto: 4.1 kg (9.1 lbs)

Bruto: 5.6 kg (12.3 lbs)
POWER MANAGEMENT

Meets ENERGY STAR® standards
VESA MOUNT COMPLIANT

VESA 100mm x 100mm
ERGONOMICS

Kantelen: 20° ~ -5°

PC:	up to 1920×1080 non-interlaced
Mac®:	Power Mac, up to 1920×1080

Physical With Stand:	513mm x 410mm x 208mm (20.2" x 16.1" x 8.2")
Physical Without Stand:	512mm x 330mm x 56mm (20.2" x 13.0" x 2.2")

Analogue:	15 pin mini D-sub×1
Digital:	DVI-D (with HDCP) / HDMI
Audio (input/output):	3.5 mm Audio line-in / 3.5 mm Audio line-out
Stroom:	3-pin AC plug (CEE22)

Spanning:	AC 100-240V (Universal); 50/60Hz (Switch)
Consumptie:	40 (typ)
Eco Mode:	Optimize 34W (typ.) / Conserve 27W (typ.)
Save mode:	≦1W

Temperatuur:	32–104ºF (0–40ºC)
Luchtvochtigheid:	20–90% (non-condensed)

Netto:	4.1 kg (9.1 lbs)
Bruto:	5.6 kg (12.3 lbs)
