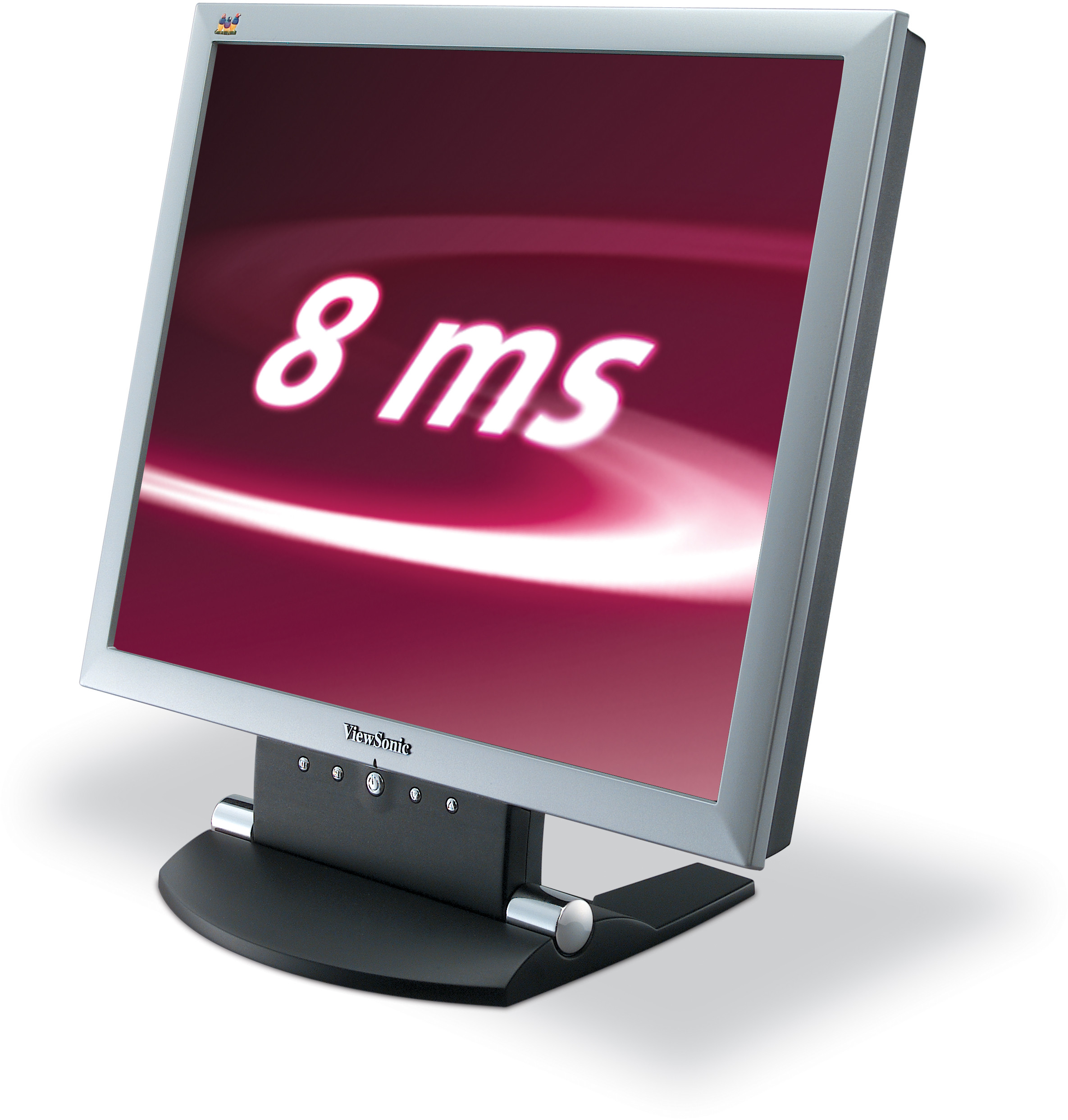

ViewSonic VE710s VE710 17" LCD Display

LCD

Type:	17” Colour TFT Active Matrix SXGA LCD,TN Technology.
Contrastverhouding:	500:1 (typ)
Kijkhoeken:	140° horizontal, 125° vertical @10:1 160° horizontal, 145° vertical @ 5:1
Display Area:	337.9mm horizontal x 270.3mm vertical
Reactietijd:	8ms (typ)
Panel Surface:	Anti-glare
Colour Support:	16.2M colours (6-bit + 2-bit FRC)
Helderheid:	260 cd/m² (typ)

COMPATIBILITY

PC: VGA up to 1280 x 1024 (non interlaced)

Mac®: Power Mac™ G3/G4 up to 1280 x 1024
DIMENSIONS

Fysiek (BxHxD): 377.6mm (W) x 195.6 mm (D) x 374.0 mm (H)
CONNECTOR

Signal: 15-pin mini D-sub, attached cable

Stroom: 3-pin AC plug
POWER

Spanning: AC 100–240V, 50–60Hz (internal power supply)

Consumptie: <35W (typ); ≤ 1 watt in power save mode

CONTROLS

Basic:

Power (Soft), [1], [Down], [Up], [2]

OSD:

Auto Image Adjust, Contrast, Brightness, Colour Adjust [sRGB,
9300K, 6500K (default), 5400K, R, G, B], Information [Mode, Model
Number, Serial Number, Website], Manual Image Adjust [H. Size,
H. Position, V. Position, Fine Tune, Sharpness, Setup Menu Language
(English, French, German, Italian, Spanish, Finnish, Japanese,
Simplified and Traditional Chinese), Resolution Notice, OSD
Position, OSD Timeout, OSD Background], Memory Recall

OPERATING CONDITIONS

Temperatuur: 0–40°C

Luchtvochtigheid: 10–90% (non-condensing)
WEIGHT

Netto: 4.1 kg
VIDEO INPUT

Frequency: Fh: 30~80kHz, Fv: 50~75Hz

Sync: H/V separated (TTL)

Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
POWER MANAGEMENT

Meets TCO'99, ENERGY and Energy Star standards.

PC:	VGA up to 1280 x 1024 (non interlaced)
Mac®:	Power Mac™ G3/G4 up to 1280 x 1024

Signal:	15-pin mini D-sub, attached cable
Stroom:	3-pin AC plug

Spanning:	AC 100–240V, 50–60Hz (internal power supply)
Consumptie:	<35W (typ); ≤ 1 watt in power save mode

Temperatuur:	0–40°C
Luchtvochtigheid:	10–90% (non-condensing)

Frequency:	Fh: 30~80kHz, Fv: 50~75Hz
Sync:	H/V separated (TTL)
Analogue:	RGB Analogue (75 ohms, 0.7 Vp-p)
