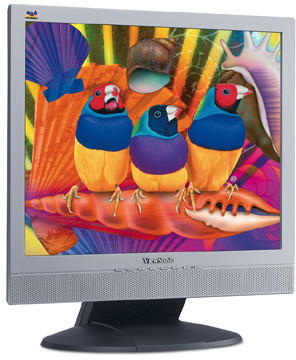

VA912
Product Omschrijving
Bezoek Gebruikers
  • www.viewsonic.com
  • LCD
    Type: 48cm / 19" colour TN TFT active matrix SXGA LCD
    Contrastverhouding: 600:1 (typ)
    Kijkhoeken: 140° horizontal, 130° vertical (at 10:1)

    150° horizontal, 160° vertical (at 5:1)
    Helderheid: 250cd/m² (typ)
    Display Area: 376mm horizontal x 301mm vertical, 48.3cm diagonal
    Optimum Resolution: 1280 x 1024
    Reactietijd: 8ms (typ)
    Panel Surface: Anti-glare
    Pixel Pitch: 0,294mm
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 (up to 75Hz)
    Mac®: Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz
  • DIMENSIONS
    W x H x D mm: 424 x 442 x 186 (with stand)
  • INPUT SIGNAL
    Frequency: Fh: 30-82kHz,

    Fv: 50-85Hz
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Sync: H/V separated (TTL)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Audio: Stereo mini audio line in
  • POWER
    Spanning: AC 100–240V (universal), 50–60Hz (auto switch), internal power supply
    Consumptie: < 60W (typ.); ≤ 3 watt in power save mode
  • CONTROLS
    OSD: Auto image adjust, brightness, contrast, input select (analogue, digital), colour adjust (sRGB, 9300K, 6800K, 6500K, user RGB), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
    Physical: Physical Power on/off, menu, up, down, select
  • OPERATING CONDITIONS
    Temperatuur: 0°C to 40°C
    Luchtvochtigheid: 10% to 90% (no condensing)
  • WEIGHT
    Netto: 5.5kg
  • POWER MANAGEMENT
    Meets TCO'99 and ENERGY standards
  • ERGONOMICS
    Kantelen: Down 5°, Up 20°
