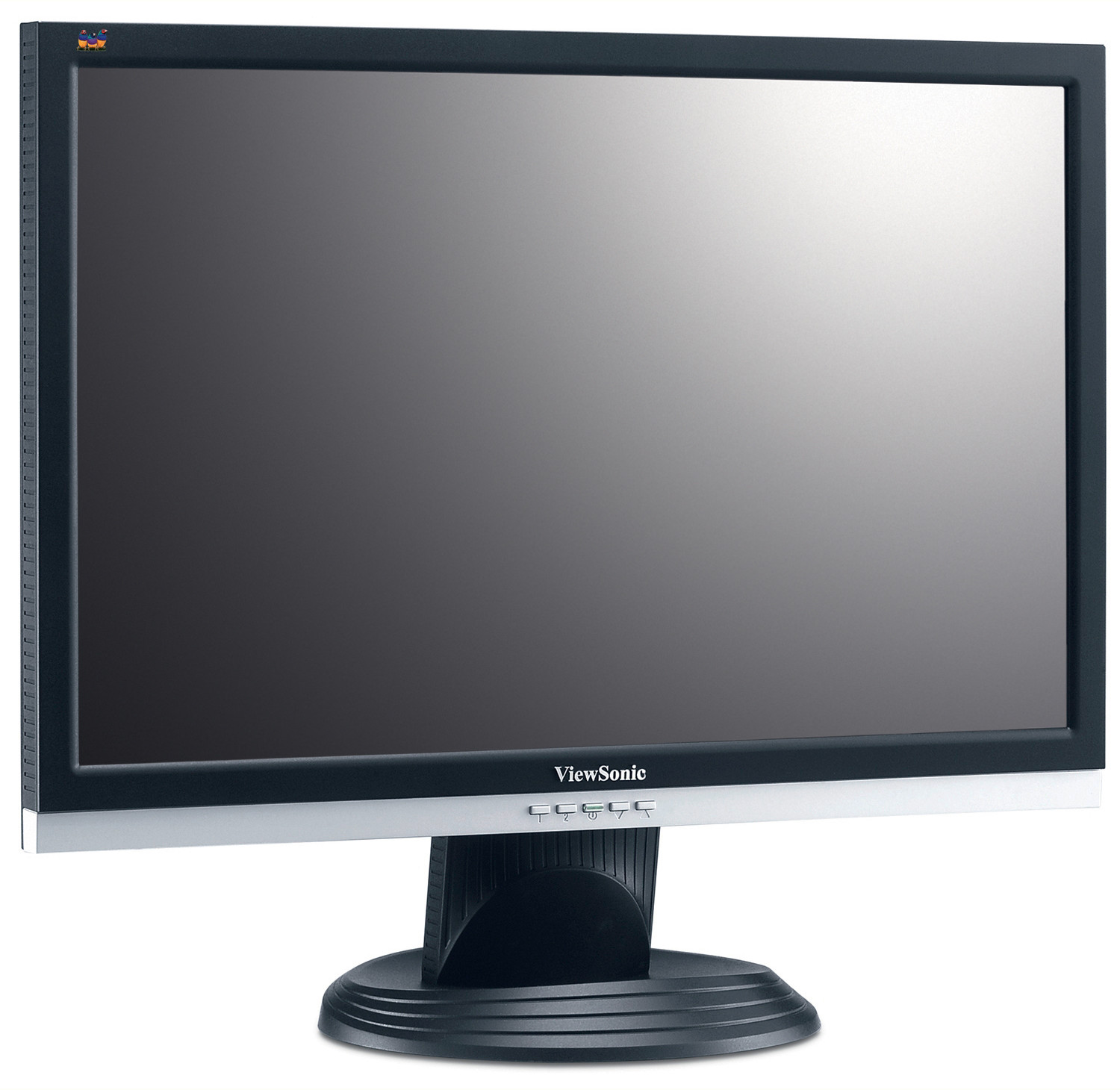

ViewSonic VA2216w 56 cm / 22" WIDESCREEN LCD MONITOR VA SERIES WITH 5MS VIDEO RESPONSE TIME

Toets Features

Product Omschrijving

ViewSonic's 56 cm / 22" VA2216w LCD delivers reliable widescreen performance at a budget-friendly price. Boasting a dynamic contrast ratio of 2000:1, a high brightness level of 300cd/m² and fast video response time of 5ms, this large screen monitor displays sharp text and crystal-clear graphics with vivid colours. The native 16:10 aspect ratio lets you be more productive while working in multiple applications or viewing two documents side-by-side. The new eye-catching slim bezel design saves precious desktop real estate and affords every room an extra touch of style. The VA2216w is the perfect choice for education and government users, small and home office applications and those looking for a high-quality, good price/performance ratio widescreen LCD monitor.

Bezoek Gebruikers

www.viewsonic.com

COLORS

Black

LCD

Type:	58 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD
Contrastverhouding:	1000:1 (typ.), 2000:1 (DCR, typ.)
Kijkhoeken:	170° horizontal, 160° vertical (at 10:1) 175° horizontal, 170° vertical (at 5:1)
Helderheid:	300cd/m²
Display Area:	47.4cm horizontal x 29.6cm vertical; 55.9cm diagonal
Optimum Resolution:	1680 x 1050@60Hz
Reactietijd:	5ms (off-on-off) (typ.)
Lichtbron:	Long life, 40000 (min.)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.282mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1680 x 1050 non-interlaced

Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
DIMENSIONS

Physical With Stand: 510 x 432 x 225

Physical Without Stand: 510 x 351 x 61

W x H x D mm: 560 x 474 x 124
VERPAKKINGSINHOUD

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Stroom: 3-pin AC plug (CEE22)
POWER

Spanning: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumptie: 38 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatuur: 0°C–40°C

Luchtvochtigheid: 20%–90% (non-condensation)
WEIGHT

Net With Stand: 5.1kg

Bruto: 6.6kg
VIDEO INPUT

Frequency: Fh: 24–82kHz, Fv: 50–75 Hz

Sync: H/V separate (TTL), composite, sync on green

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
POWER MANAGEMENT

TCO’03 and ENERGY STAR standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Kantelen: Down 5°, Up 20°

PC:	VGA up to 1680 x 1050 non-interlaced
Mac®:	Power Mac™ up to 1680 x 1050 non-interlaced

Physical With Stand:	510 x 432 x 225
Physical Without Stand:	510 x 351 x 61
W x H x D mm:	560 x 474 x 124

Analogue:	15-pin mini D-Sub (detachable cable)
Stroom:	3-pin AC plug (CEE22)

Spanning:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumptie:	38 watt (typ.), <1 watt in power save mode

Temperatuur:	0°C–40°C
Luchtvochtigheid:	20%–90% (non-condensation)

Frequency:	Fh: 24–82kHz, Fv: 50–75 Hz
Sync:	H/V separate (TTL), composite, sync on green
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Net With Stand:	5.1kg
Bruto:	6.6kg
