Commercial Display

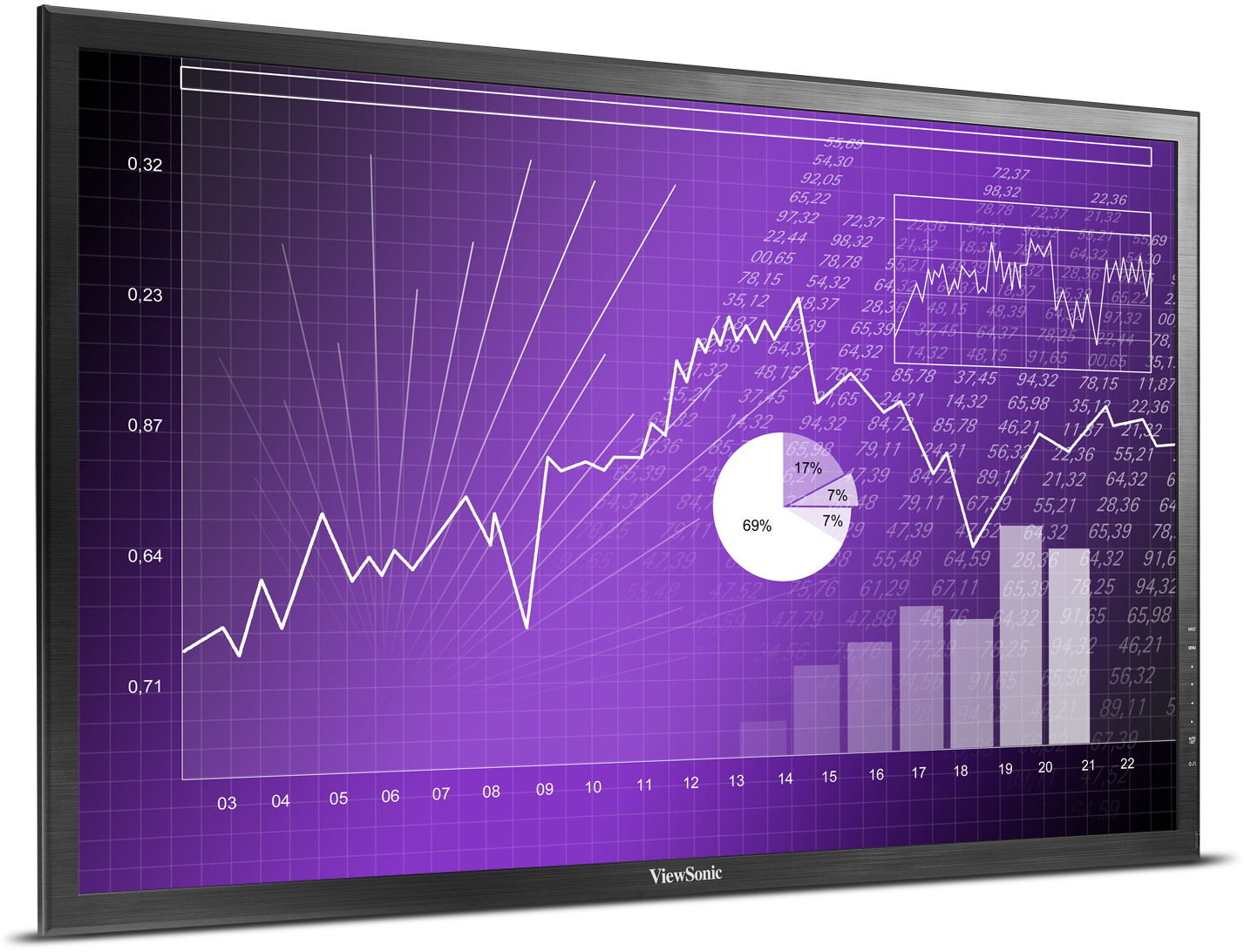

CDP4237-L
Toets Features
Product Omschrijving
The ViewSonic® CDP4237-L commercial display features Full HD 1920 x 1080p IPS panel technology, fast 120Hz response, and 50,000:1 dynamic contrast ratio. Slim ID design, combined with 27.6mm bezel width makes the CDP4237-L an ideal large screen solution for your digital signage application. Additional features include versatile inputs – HDMI, DVI, VGA, YPbPr and built-in media player utilizing USB storage. Other key features include up to 5 x 5 tiling for video walls and VGA and DVI loop through support.
Bezoek Gebruikers
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 42" colour TFT active matrix, wide LED Contrastverhouding: 1300:1 (typ) Kijkhoeken: 178º horizontal, 178º vertical Helderheid: 450 cd/m2 (typ) Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal Optimum Resolution: 1920x1080, 0.485mm dot pitch Reactietijd: 12ms Aspectratio: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Fysiek (BxHxD): 39" x 23" x 1.5"
(991.7mm x 584.3mm x 37.5mm) -
VERPAKKINGSINHOUD
LCD display, power cable, remote control with batteries, User Guide CD -
AUDIO
Amplifier: 10-watt / 8 ohm x2 -
INPUT
Video-ingang: HDMI, DVI, component, VGA, DP (Display Port) Video Output: VGA, component, DVI (Loop through) Control Input/Output: RS-232/RJ45 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Digital: HDMI, DVI, DP, RGB, A/V, Component Stroom: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
POWER
Spanning: AC 100–240V (universal), 50–60Hz Consumptie: 115W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, colour temperature,
temperature adjust, sharpnessFront Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, resetAudio: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Invoer: VGA, DVI, HDMI, YPbPr, DP OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position -
OPTIONAL ACCESSORIES AVAILABLE
Stand (STND-019), Wall Mount (WMK-013), Wall Mount with Locking Media Player Cradle (WMK-028), Speaker (SPK-012) -
VESA MOUNT COMPLIANT
VESA 400mm x 400mm -
WEIGHT
Bruto: 34.8 lb. (15.8 kg) Netto: 27.8 lb. (12.6 kg) -
OPERATING CONDITIONS
Luchtvochtigheid: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (0–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state, or federal laws.
