CDP3235
Product Omschrijving

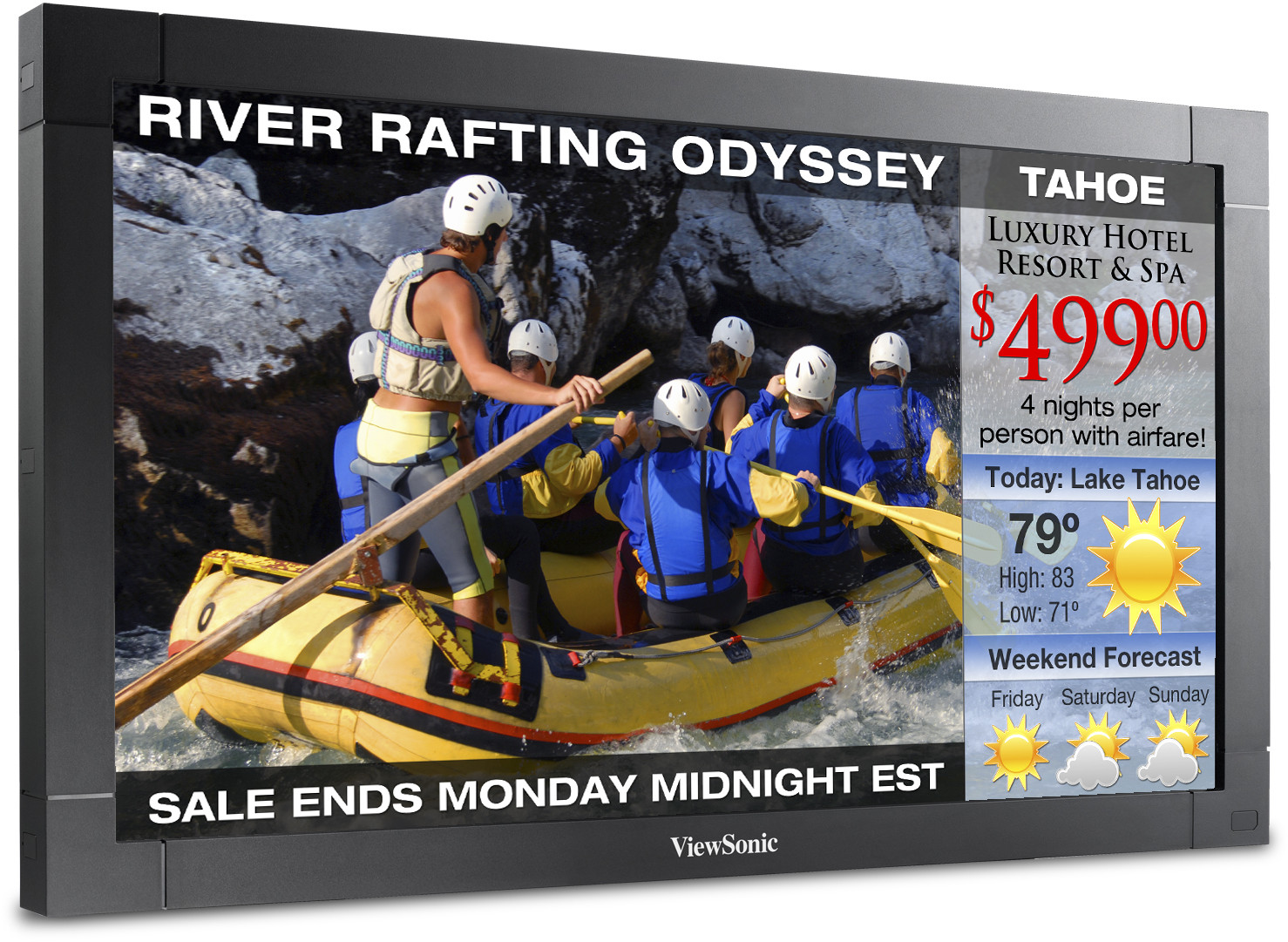

The ViewSonic® CDP3235 HD commercial display is theperfect solution for applications requiring a 32" commercialdisplay capable of a duty cycle of 24/7 operation. TheCDP3235 HD commercial display features a 1366x768HD panel with 3000:1 contrast ratio. Additional featuresinclude versatile inputs – HDMI, DVI, VGA, S-video andcomposite, component video and built-in 10W x 2 speakers.The CDP3235 will support up to a 5x5 display video wallwith internal clock and scheduler. RS-232 daisy chaincapability and a RJ45 connection for LAN remote controlare also provided.
Bezoek Gebruikers
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 32" (31.5" viewable) colour TFT active matrix, wide LCD
    Contrastverhouding: 3000:1 (typ)
    Kijkhoeken: 178º horizontal, 178º vertical
    Display Area: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
    Optimum Resolution: 1366x768 530mm dot pitch
    Reactietijd: 6.5 ms
    Lichtbron: Long life, 50,000 hrs. (typ)
    Aspectratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
    Helderheid: 450 cd/m2 (typ)
  • DIMENSIONS
    Physical With Stand: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm
    Physical Without Stand: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
    Packaging: 44.8 x 29.3 x 12.0 in. / 880 x 670 x 252 mm
  • INPUT
    Video-ingang: HDMI, DVI, component, VGA, S-Video, composite
    Video Output: VGA, component, DVI
    Control Input/Output: RS-232/RJ45
  • INPUT SIGNAL
    TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTOR
    Digital: HDMI, DVI
    Stroom: 3-pin plug
    Analog: 9-pin mini D-sub (VGA)
  • POWER
    Spanning: AC 100–240V (universal), 50–60Hz
    Consumptie: 140W (typ)
  • CONTROLS
    Basic: Power, Exit, +, –, Menu/Enter
    Picture: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Audio: Volume, mute, audio source
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    Invoer: VGA, DVI, HDMI, YPbPr
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
  • VESA® MOUNT
    400mm x 200mm, 200mm x 200mm
  • WEIGHT
    Bruto: 40.8 lb. / 18.5 kg
    Net With Stand: 33.1 lb. / 14.6 kg
    Net Without Stand: 32.2 lb. / 15 kg
  • OPERATING CONDITIONS
    Luchtvochtigheid: 10–80% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 32–95ºF (0–35ºC)
  • AUDIO OUT
    Speakers: Internal 10-watt (x2)
  • PACKAGE CONTENTS
    CDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
  • RECYCLEN/VERWIJDEREN
    The lamp in this product contains mercury. Please dispose
    of in accordance with local, state or federal laws.
