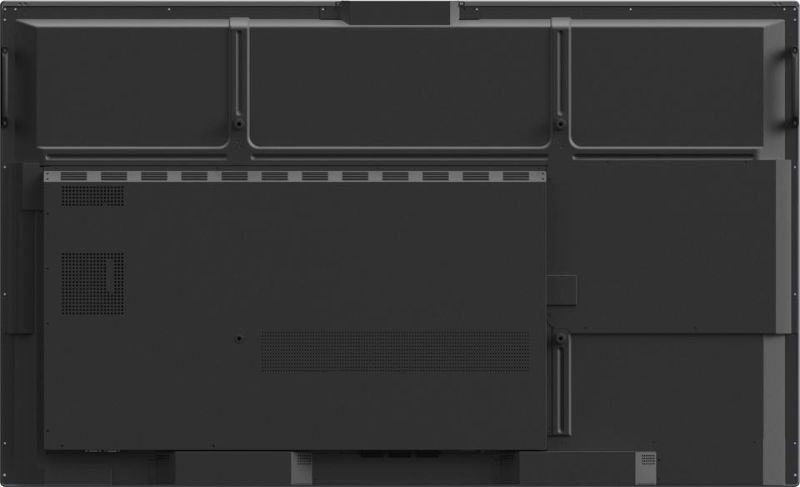

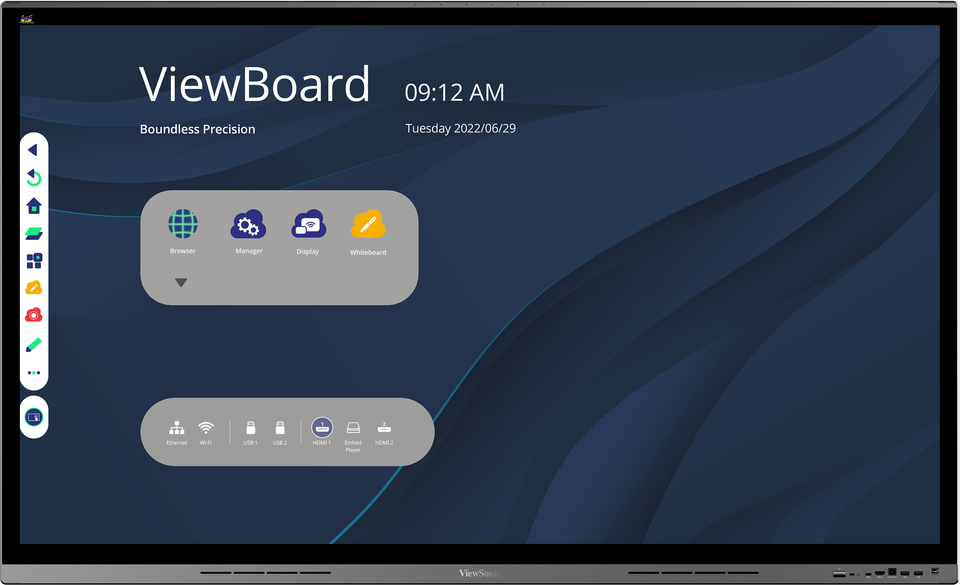

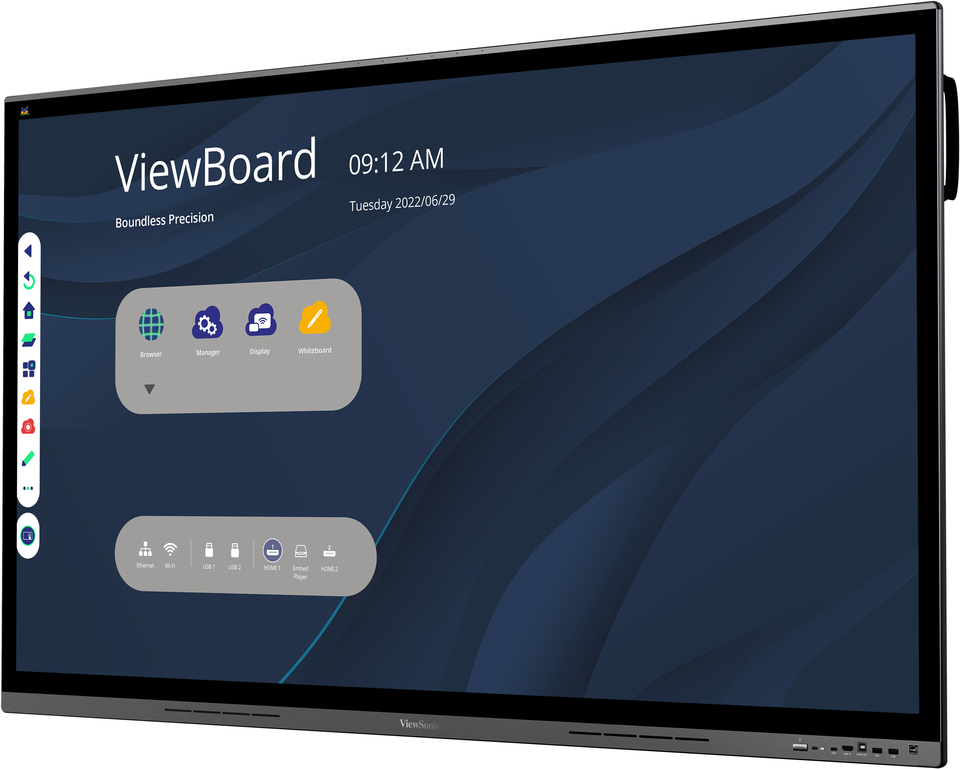

ViewBoard IFP6562

Een 65” Digital Hub voor het verbinden van mensen en ideeën

Superb 4K UHD display panel with UFT+ technology, and 20-points multi-touch
One-stop premium conference solution with compatible ViewSonic conference speakerphone and camera
Comprehensive I/O ports, vCastSender, and myViewBoard display
Built-in USB Type-C for simultaneous 65W fast charge and visual display
Centralised IT management and content display by myViewBoard Manager

Display
Paneelgrootte: 65"
Paneeltype: TFT LCD Module with DLED Backlight
Weergavegebied (mm): 1428.48 (H) x 803.52 (V)
Aspectratio: 16:9
Resolutie: UHD 3840x2160(Pixels)
Kleuren: 1.07B (8bits + FRC)
Helderheid: 450 nits
Levensduur achtergrondverlichting: 50,000 Hours (Min.)
Contrastverhouding: 5000:1 Typ.
Reactietijd: 6.5ms
Kijkhoeken: H = 178, V = 178 typ.
Oppervlakte behandeling: Hardness: 9H pencil
Bezel: Top: 38 mm
Bottom: 63.9 mm
Left: 30.5 mm
Right: 30.5 mm
Disclaimer: 50,000 hours backlight life at 8 hours of use per day
Platform
Processor: Dual core A73+Dual core A53
RAM: 3GB DDR4
Opslag: 32GB eMMC
Touch
Type: Ultra Fine Touch Plus Technology (Projected Capacitive)
Touch resolutie: 32767 x 32767
Touch punt: 20

INPUT
HDMI: x4
RGB/VGA: x1
Audio: 1x PC-Audio IN
MIC (microfoon): Full band 6-element MEMS microphone array
RS232: x1
OPS: x1
WiFi: x1
OUTPUT
HDMI: x1
Audio: x1
SPDIF: x1
LAN
RJ45: x2
USB
Type A: x6
Type B: x2
Type C: x1
SPEAKERS
12W x 2 + 15W x 1 Subwoofer
Bundelsoftware
Basis annotatiesoftware: myViewBoard WhiteBoard for Android
Pro annotatiesoftware: myViewBoard WhiteBoard for Windows (Embedded in Windows Slot-in PC)
Draadloze presentatie: ViewBoard Cast & myViewBoard Display & AirServer
Speciale eigenschappen
Eenvoudig delen via LAN tussen IFP en slot-in-apparaat: Yes
Stroom
Spanning: 100-240VAC +/- 10% Wide Range
Consumptie: On: 115W(Typ.) / Off: < 0.5W
OPERATING CONDITIONS
Temperatuur (º C): 0°C to 40°C
Luchtvochtigheid: 20% ~ 80% RH non-condensing
AFMETINGEN (B x H x D)
Fysiek (inch/mm): 58.7 x 35.7 x 3.1 in / 1492 x 907 x 78 mm
Verpakking (inch / mm): 63.3 x 39.8 x 8.5 in / 1607 x 1010 x 215 mm
WEIGHT
Netto (lb / kg): 82.45 lb / 37.4 kg
Bruto ( lb/kg): 107.8 lb / 48.9 kg
VERPAKKINGSINHOUD
1. Power cable
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. Passive stylus x 2
6. Quick Start Guide
7. Compliance statement
8. RS232 adaptor
9. Plate
10. Clamp x 5
11. Screw x 8
12. HDMI cable
13. Touch USB cable
Compatible Slot-in PC
VPC25-O-B series, VPC27-O-B series
